Manitowoc Grove GMK 4100L-1 User Manual

Maintenance work on the carrier
7.7 Transfer case
25.11.2016
Maintenance manual 3 302 364 en 7 - 47
GMK 4100L-1
Changing the oil

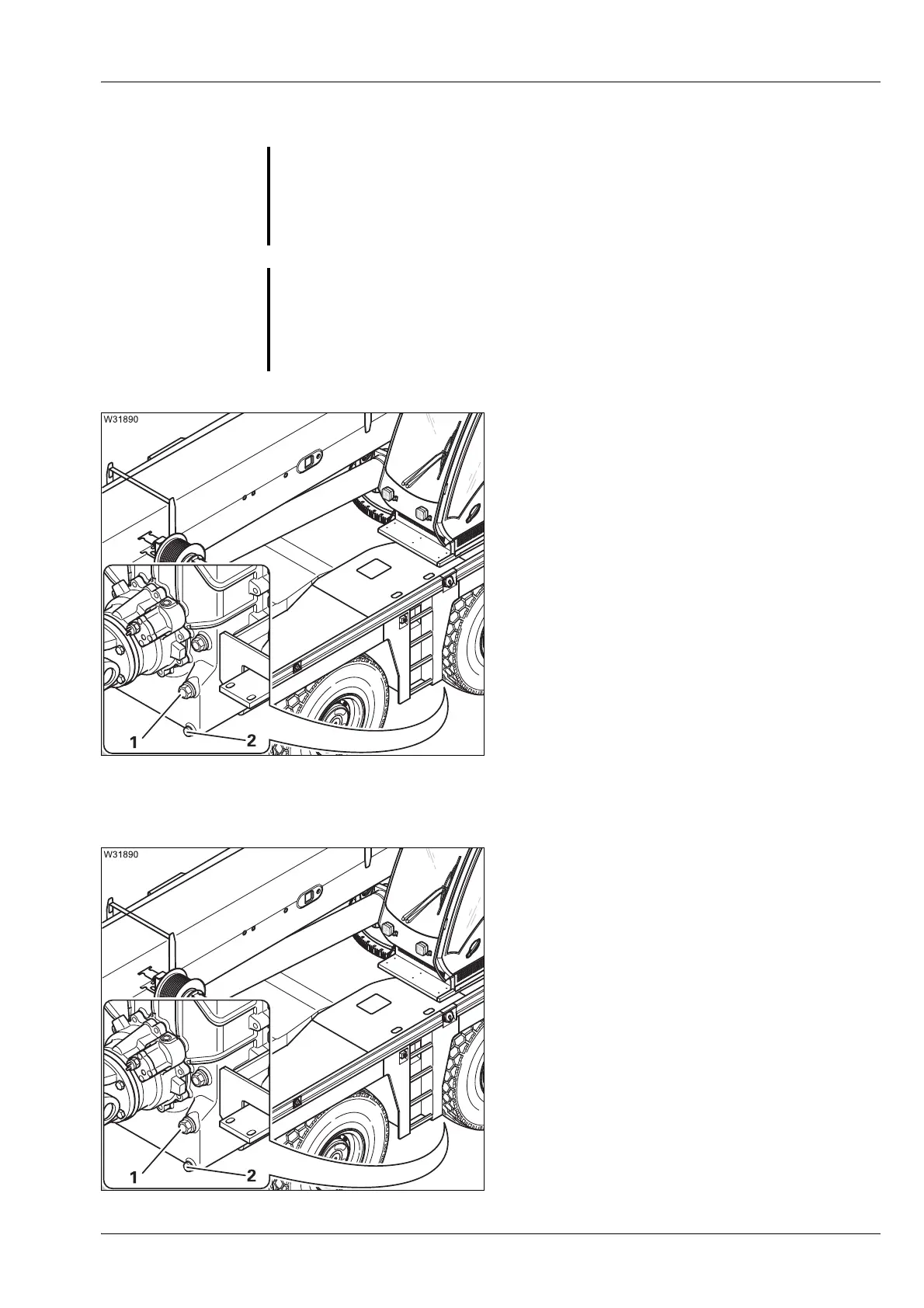

• Place a receptacle under the screw (2).
• Unscrew the screws (1) and (2) and allow
the oil to drain off.
• Fit a new gasket and tighten the drain
plug (2).
• Fill the oil up to the lower edge of the
opening.
• Fit a new gasket and tighten the screws (1).
Checks after the
oil change
• Go for a test drive.
• Switch the engine off and wait for about
5 minutes.
• Check the oil level; à p. 7 - 45.
• Check drain plugs (1) and (2) for leaks.
G
Risk of scalding from gear oil at operating temperature.
You could scald yourself by gear oil escaping in an uncontrolled manner at
operating temperature. Wear appropriate protective gloves and take care
not to come into contact with the gear oil.
O
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable recep
tacles. Wipe up any
consumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
