Maintenance work on the carrier
7.3 Engine
25.11.2016
Maintenance manual 3 302 364 en 7 - 15
GMK 4100L-1
7.3.2 Topping up the oil
Data on the prescribed oil specification; à Engine manufacturer’s
documentation
.
Oil
Prerequisites – The truck crane must be level.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
Topping up the oil

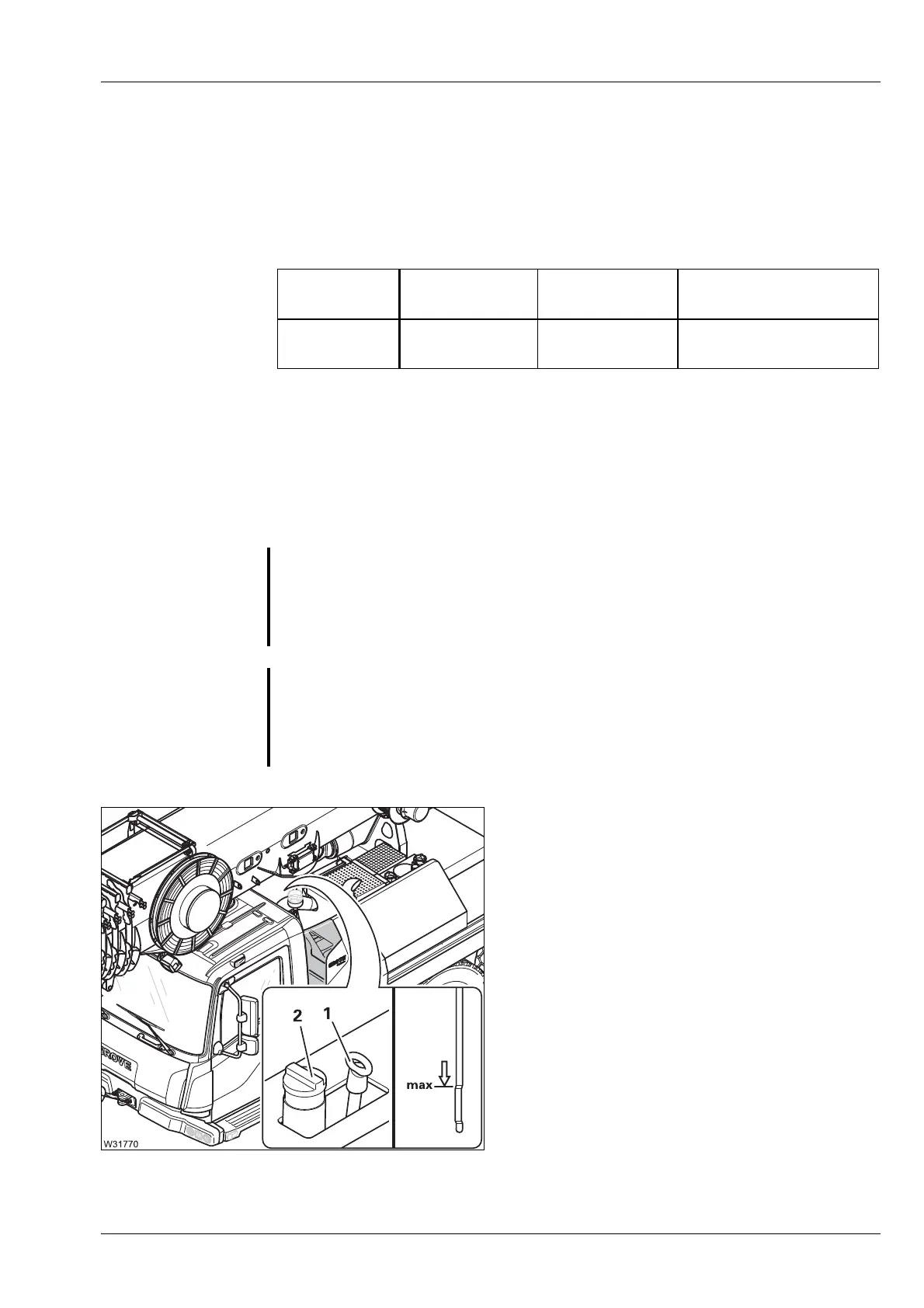

• Add oil through the filler neck (2) up to the
max. mark.
• Close the filler neck with the cap.
• Put the dipstick (1) into the dipstick tube
after checking the oil level.
Engine oil
in litres (gal)
Designation
to DIN 51502
Specificati
on
classification
GROVE part no.
34 (9.0) HD - CD MIL-L 2104 C
DB 228.5
SAE 5 W-30
03329588
S
Risk of damage to the engine if the oil level is too high.
Do not overfill with oil; the oil level must not be higher than the max. mark
(arrow marking). Drain off oil if necessary;
à Engine manufacturer’s
documentation
.
G
Risk of burns when the engine is hot.
During operation, the engine and add-on parts reach temperatures up to
400 °C (750 °F). Wear appropriate protective gloves and be careful not to
touch hot parts.
