Maintenance work on the carrier
7.9 Axle lines
25.11.2016
Maintenance manual 3 302 364 en 7 - 61
GMK 4100L-1
7.9.4 Final drives – Checking the oil level
Spare parts
and tools
1)
Additional equipment (2nd driven axle line)
Prerequisites – The truck crane must be raised on outriggers and must be level.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
– The parking brake must be released.
Checking the
oil leve
l
• Check the oil level at all other final drives
in the same way.

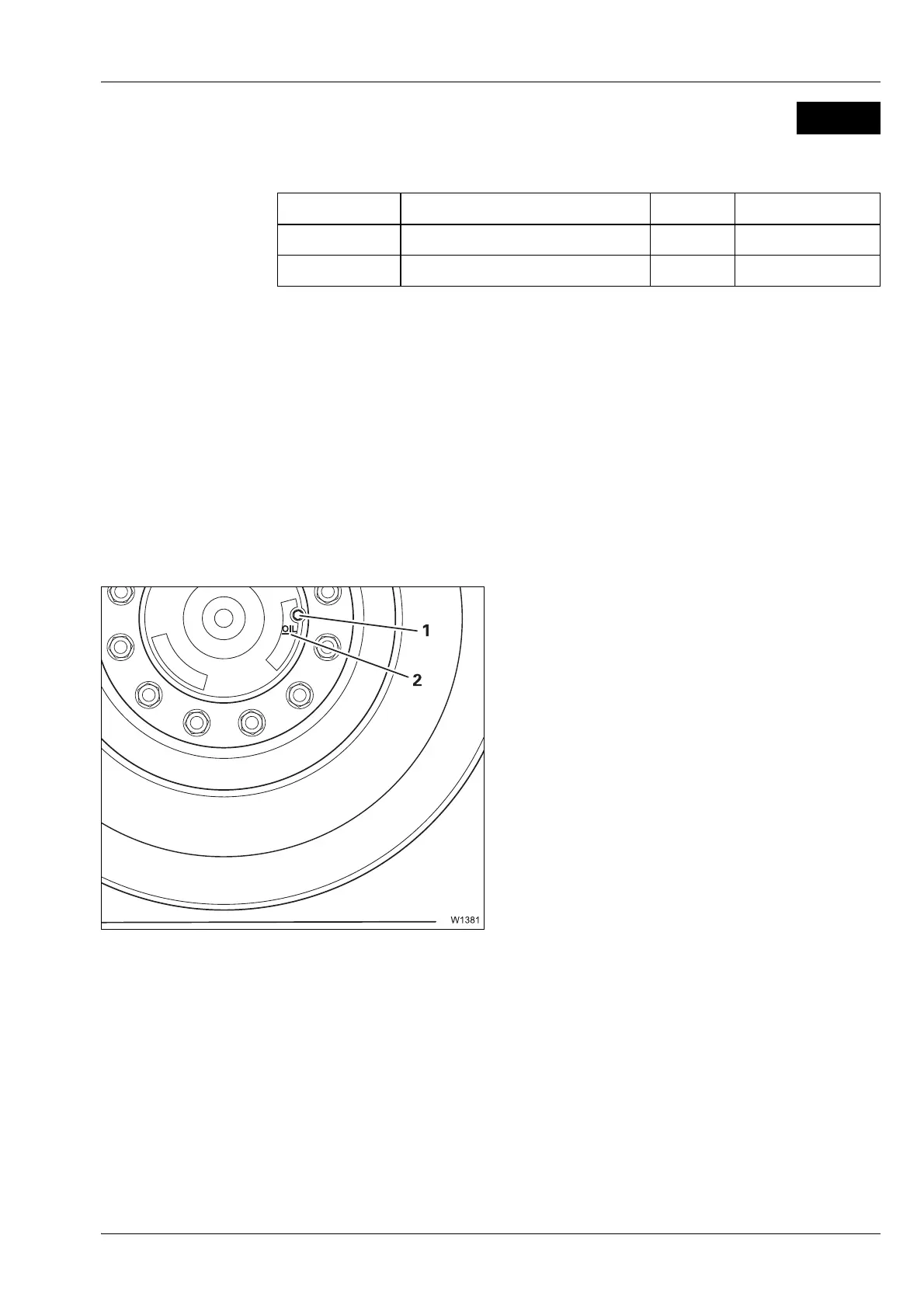

• Turn the wheel until the marking (2) is
horizontal and is on the right, next to the
centre of the axle.
• Remove the drain plug (1).
• Check that the oil level is at the mark (2).
• Fit a new gasket and tighten the screw.
If the oil level is too low
• Top up the oil, à p. 7 - 63.
M 1
for drive Designation Quantity GROVE part no.
8 x 6 x 8 Gasket 24 x 29 Cu DIN 7603 6 00117145
8 x 8 x 8
1)
Gasket 24 x 29 Cu DIN 7603 8 00117145
