Manitowoc Grove GMK 4100L-1 - Replacing Fuel Filter 2

Maintenance work on the carrier
7.4 Fuel system
25.11.2016
Maintenance manual 3 302 364 en 7 - 31
GMK 4100L-1
7.4.3 Replacing fuel filter 2
Spare parts
and tools
– Receptacle, approx. 5 ltr (1.5 gal);
à p. 2 - 4.
– Torque wrench for a torque of 15 Nm (11 lbf ft).
Prerequisites – The truck crane must be level and on outriggers; à Operating Instructions.
– The main boom must be fully raised;
à Operating Instructions.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
– The fuel must be drained from the fuel filter 1;
à p. 7 - 29.
– If the fuel is dirty: Reduce the maintenance interval.
Changing

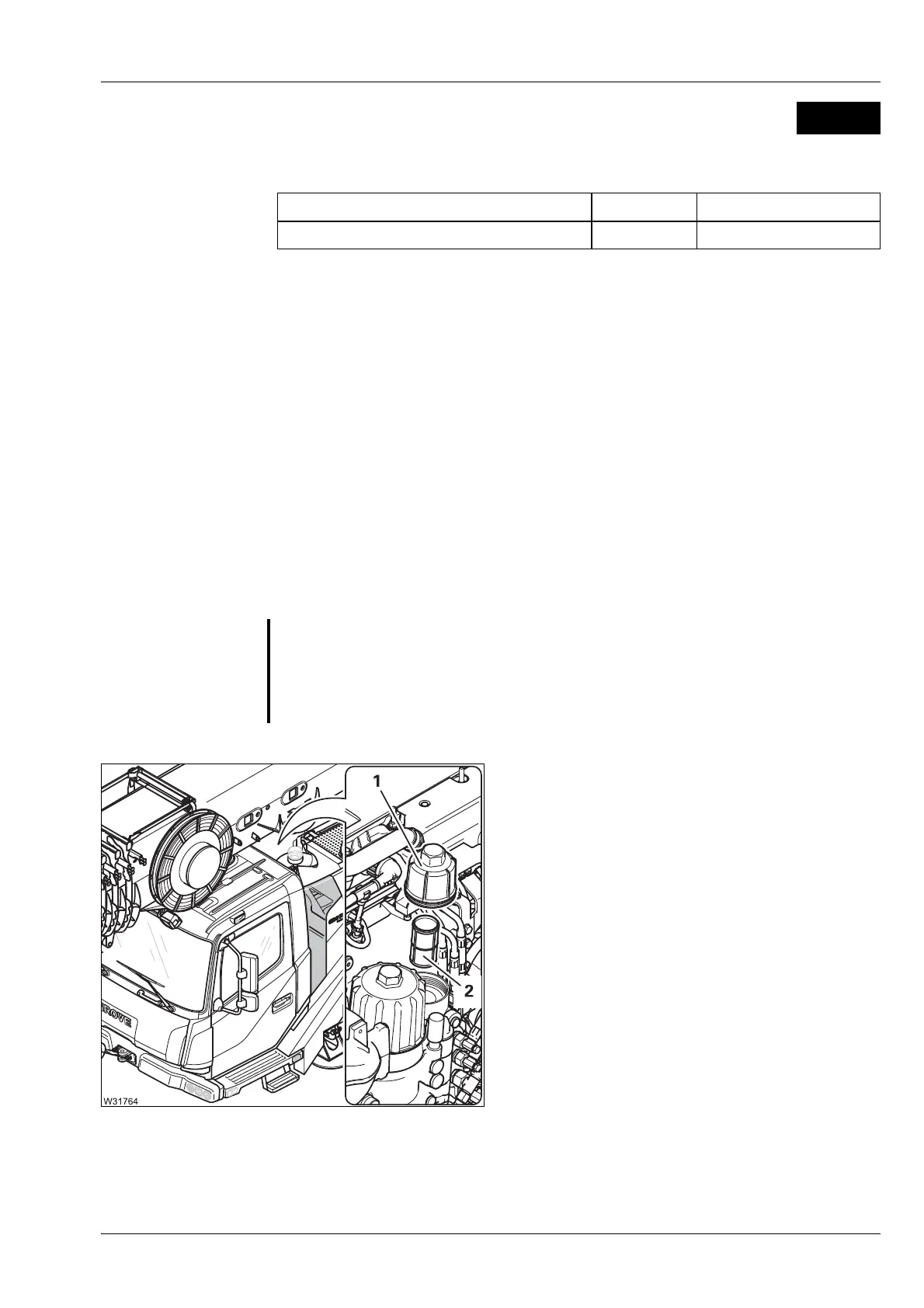

• Place a receptacle underneath the filter.
• Remove the cover (1).
• Remove the old filter (2) from the casing.
• Place the old filter (2) in the receptacle.
• Insert a new filter (2) into the casing.
• Attach the cover (1) – torque 15 Nm (11 lbf ft);
à Engine manufacturer’s documentation.
• Remove the receptacle.
s
M 12
Designation Quantity GROVE part no.
Filter (small) 1 04161566
O
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable recep
tacles. Wipe up any
consumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
