Manitowoc Grove GMK 4100L-1 User Manual

Maintenance work on the carrier
7.14 Compressed air system
25.11.2016
Maintenance manual 3 302 364 en 7 - 95
GMK 4100L-1
7.14.3 Replacing the filter cartridge of the compressed
air drier
Spare parts and
tools
– Strap wrench.
Prerequisites – The truck crane must be raised on outriggers or parked over an
inspection pit.
–
The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
Changing the filter
cartridge

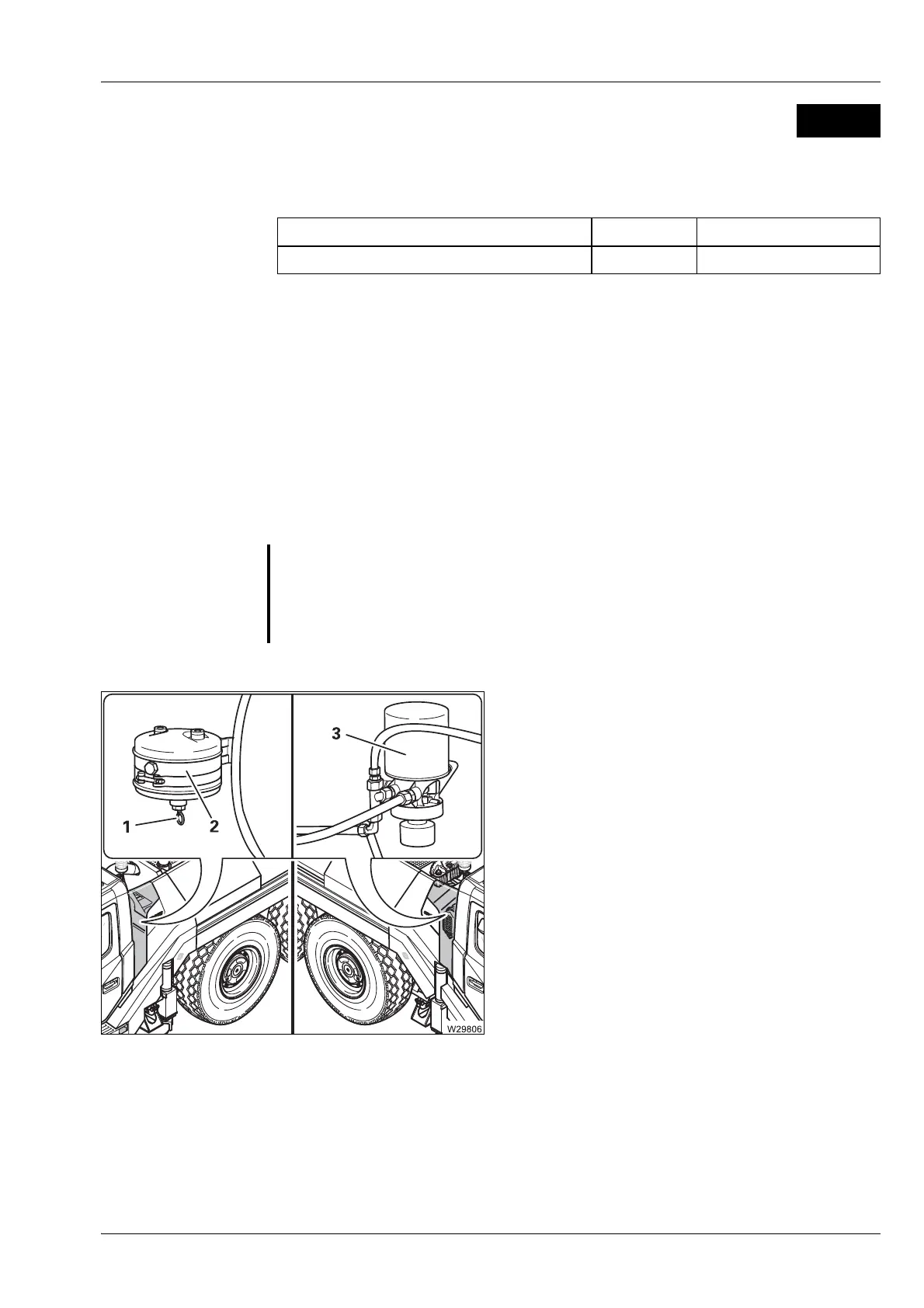

• Using the valve (1), release all the air from
the reservoir (2).
• Replace the filter cartridge (3) using the
strap wrench (lubricate gasket slightly).
M 12
Designation Quantity GROVE part no.
Filter cartridge 1 04157844
G
Risk of injury from escaping compressed air.
If the reservoir (2) is not completely
vented, the compressed air drier will be
under pressure.
Bleed the reservoir until air no longer escapes from the valve.
