Maintenance work on the carrier
7.8 Angle gear
25.11.2016
Maintenance manual 3 302 364 en 7 - 49
GMK 4100L-1
7.8 Angle gear
• Comply also with the à Run-in regulations, p. 4 - 1.
Access

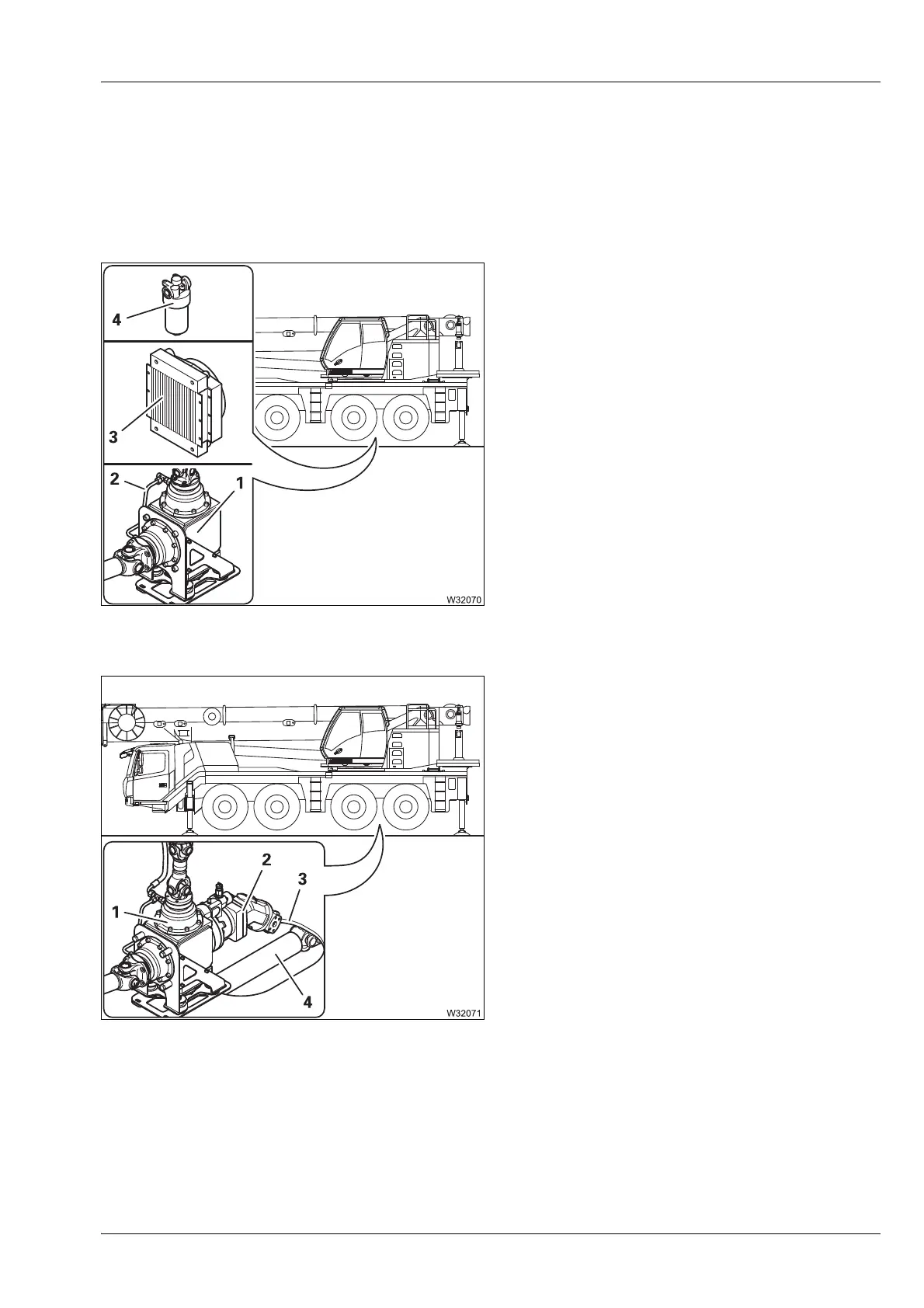

The angle gear (1) is located in t
he travel gear
frame at the centre of rotation of the turntable.
Within the oil circuit (2) the gear oil for
the
angle gear (1) is routed via a separate oil
cooler (3) and through a separate filter (4).
The oil cooler (3) and the filter (4) are a
lso
located within the chassis in the area of the
centre of rotation.
Access to the angle gear (1) is po
ssi
ble only
from the underside of the chassis.
Access via the port (3) can be enlarged if
necessary by removing the Cardan shaft (4)
between the third and fourth axle lines.
If the additional equipment
Driving from the
crane cab
is fitted, the angle gear (1) is fitted
with a flange for a hydraulic drive (2).
It may be necessary the remove the hydraulic
drive (2) from the flange in order to enlarge the
access via the port (3).
