Maintenance work on the carrier
7.14 Compressed air system
25.11.2016
Maintenance manual 3 302 364 en 7 - 93
GMK 4100L-1
7.14 Compressed air system

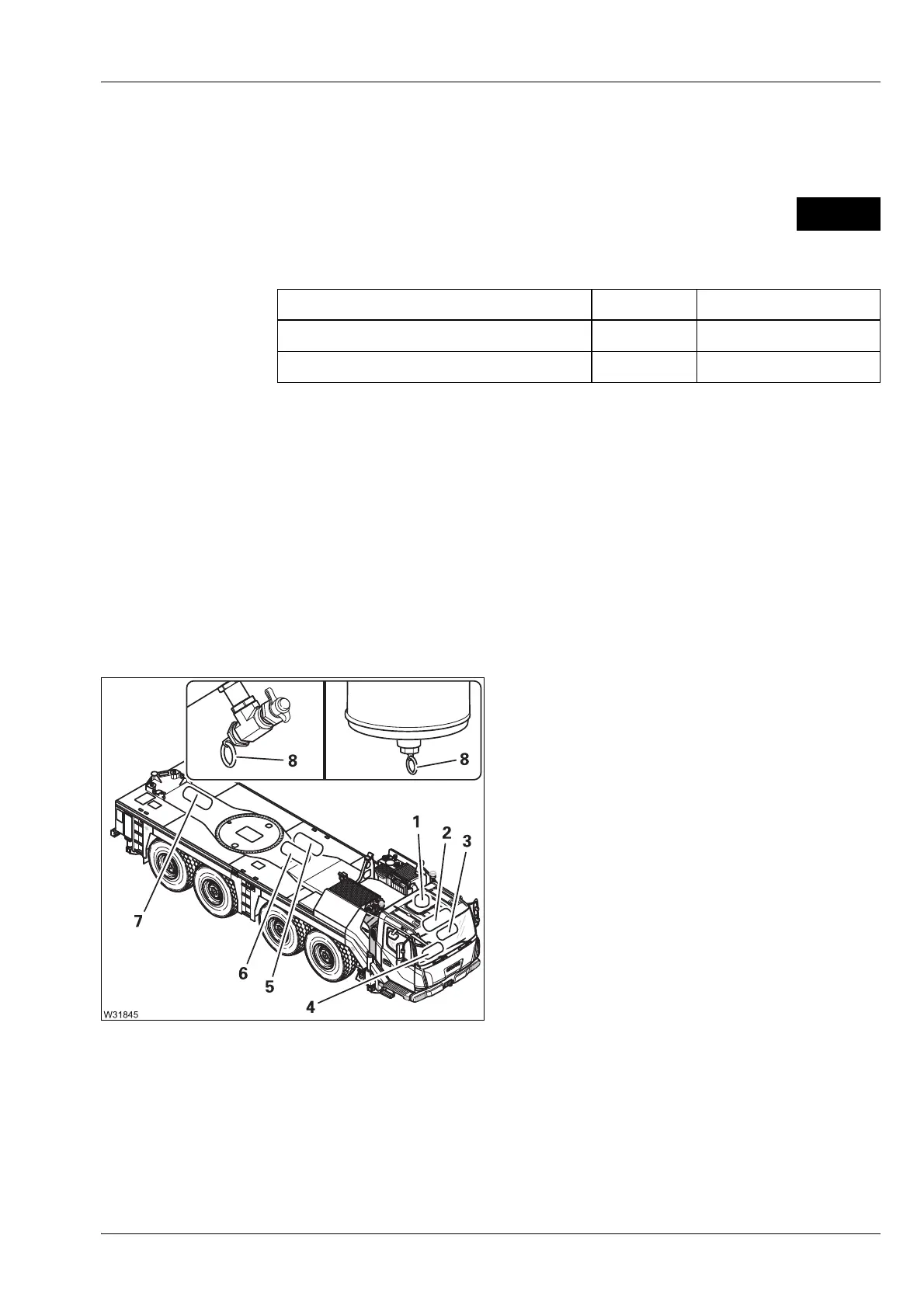

7.14.1 Draining water from the compressed air system
Spare parts
and tools
Prerequisites – The truck crane must be raised on outriggers or parked over an
inspection pit.
–
The compressed-air supply is completely full;
à Operating Instructions.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
Draining water
from the com-
pres
sed air system
• Actuate the valves (8) on the air
reservoirs (1) to (7).
If a great deal of water escapes
• Have the compressed air drier checked or
replaced by
Manitowoc Crane Care or an
authorised GROVE dealer or your qualified
repair personnel.
W
Designation Quantity GROVE part no.
Valve 7 01570750
Gasket 22 x 27 Cu DIN 7603 7 00117142
