Manitowoc Grove GMK 4100L-1 - Checking the Oil Level; Slewing Gear

Maintenance work on the superstructure
8.4 Slewing gear
25.11.2016
Maintenance manual 3 302 364 en 8 - 15
GMK 4100L-1
8.4 Slewing gear
8.4.1 Checking the oil level
Spare parts
and tools
Prerequisites – The truck crane must be level and in on-road mode;
à Operating
Instructions
.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
Checking the
oil leve
l
Always check the oil level prior to using the crane.

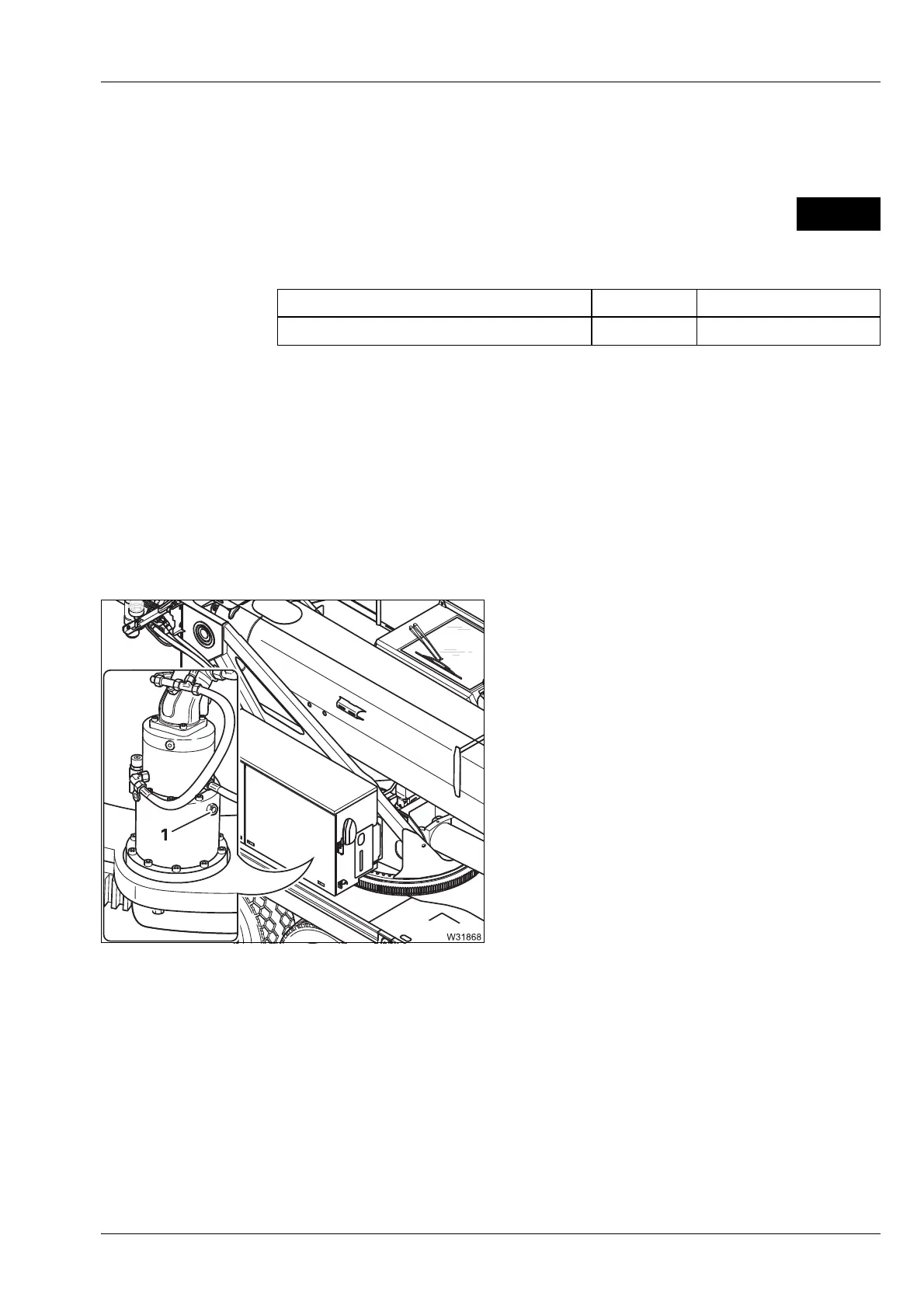

• Check that oil is visible in the sight glass (1).
• Always check the oil level for all the slewing
gears.
If the oil level is too low
• Top up the oil; à p. 8 - 19.
W
Designation Quantity GROVE part no.
Gasket 10 x 14 Cu DIN 7603 2 00117125
