Maintenance work on the carrier
7.8 Axle lines
13.02.2018
Maintenance manual 3 302 719 en 7 - 57
GMK6300L-1
Draining oil
• Change the oil on all final drives in the
same way.

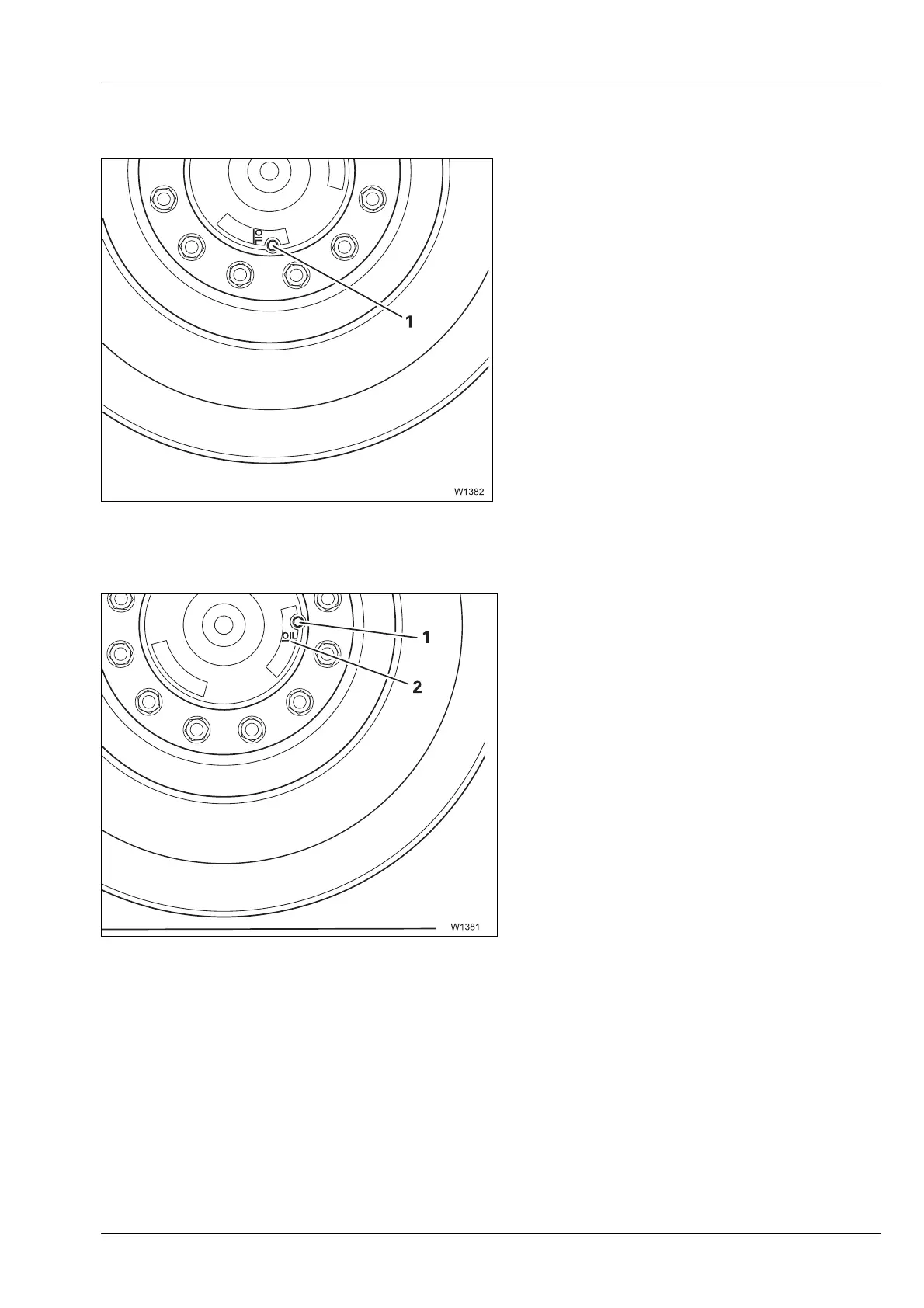

• Turn the wheel until the screw (1) is at
the bottom.
• Use a drain channel and place a receptacle
under the screw.
• Remove the screw and let the oil drain out.
Topping up the oil
• Turn the wheel until the marking (2) is
horizontal and is on the right, next to
the centre of the axle.
• Top up the oil through the opening.
• Fit a new gasket and tighten the drain
plug (1).
