8.6 Hoists
8.6.1 Checking the oil level
Spare parts and
tools
Prerequisites – The truck crane must be level and in on-road mode;
à Manual de
instrucciones
.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
Checking the oil
level

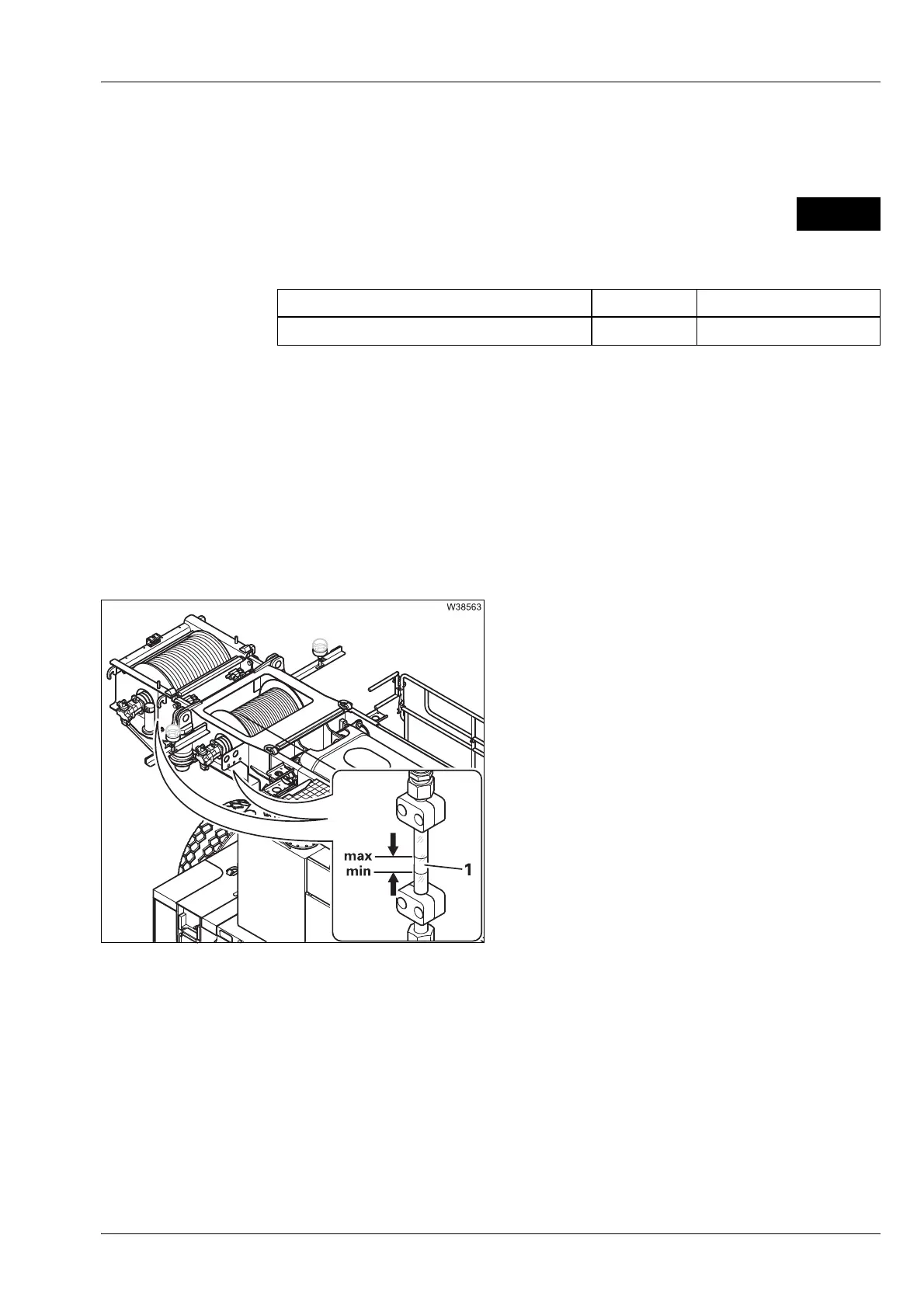

• Check that the oil level is visible between the
min. and the max. marks (1).
If the oil level is too low
• Top up the oil; à p. 8 - 44.
H
The oil level in the hoist gear must be 16 mm below the centre of rotation of
the hoist. If the sight glass is loose in the clamps, or a new sight glass has
been fitted, you must adjust this difference in height before you adjust the
clamps.
W
Designation Quantity GROVE part no.
Oil inspection glass; complete 2 04161717
