Manitowoc Grove GMK6300L-1 Maintenance Manual

Maintenance work on the superstructure
8.4 Fuel system
13.02.2018
Maintenance manual 3 302 719 en 8 - 31
GMK6300L-1
8.4.3 Changing fuel filters 2 and 3
Spare parts and
tools
– Receptacle, approx. 5 ltr (1.5 gal);
à p. 2 - 4.
– Torque wrenches for torques of 15 Nm (11 ft lbf) and 55 Nm (40.5 ft lbf).
Prerequisites – The truck crane must be level and on outriggers;
à Manual de
instrucciones
.
– The main boom must be fully raised;
à Manual de instrucciones.
This enables access to the engine, is also possible from the inner side.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
Emptying the
fuel line
Note
the option; à p. 8 - 28.

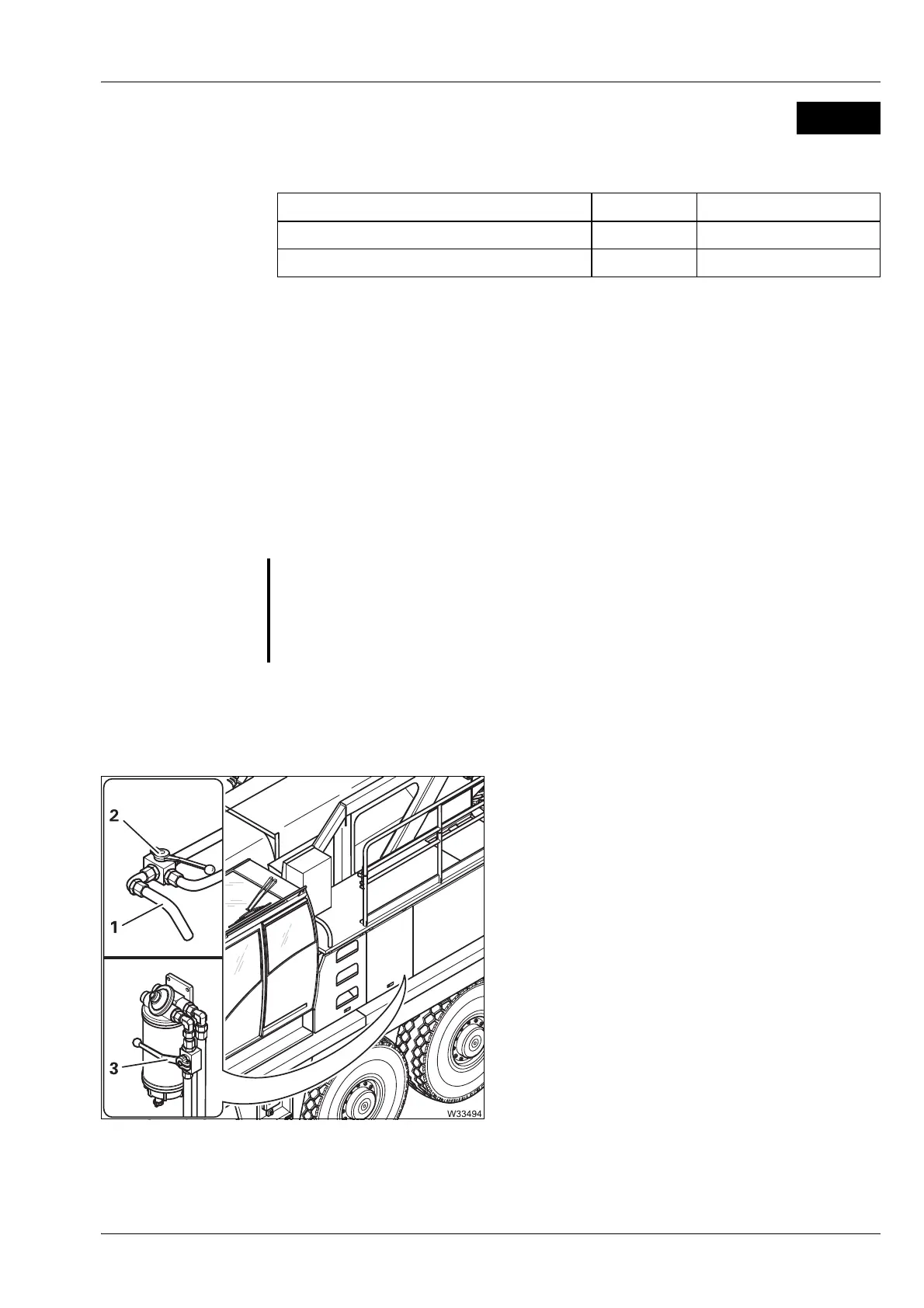

• Close the valve – lever (3) at right angles
to the line.
• Place a receptacle under the end of the
hose (1).
• Turn the valve – lever (2) parallel with
the end of the hose (1).
• Let the consumable drain into the
receptacle.
Leave the receptacle under the end of the
hose. More consumable will run out when
you ble
ed the fuel line.
s
M 12
Designation Quantity GROVE part no.
Filter (small) 1 04165265
Filter (large) 1 04165266
O
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable recep
tacles. Wipe up any
consumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
