Maintenance work on the superstructure
8.8 Slewing bearing
13.02.2018
Maintenance manual 3 302 719 en 8 - 63
GMK6300L-1
8.8.5 Lubricating the locking of turntable
Grease, spare
parts, tools
–Brush.
Prerequisites – The truck crane must be level and in on-road mode;
à Manual de
instrucciones
.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
– The turntable must be at one of the locking points (0° or 180°).
Lubricating

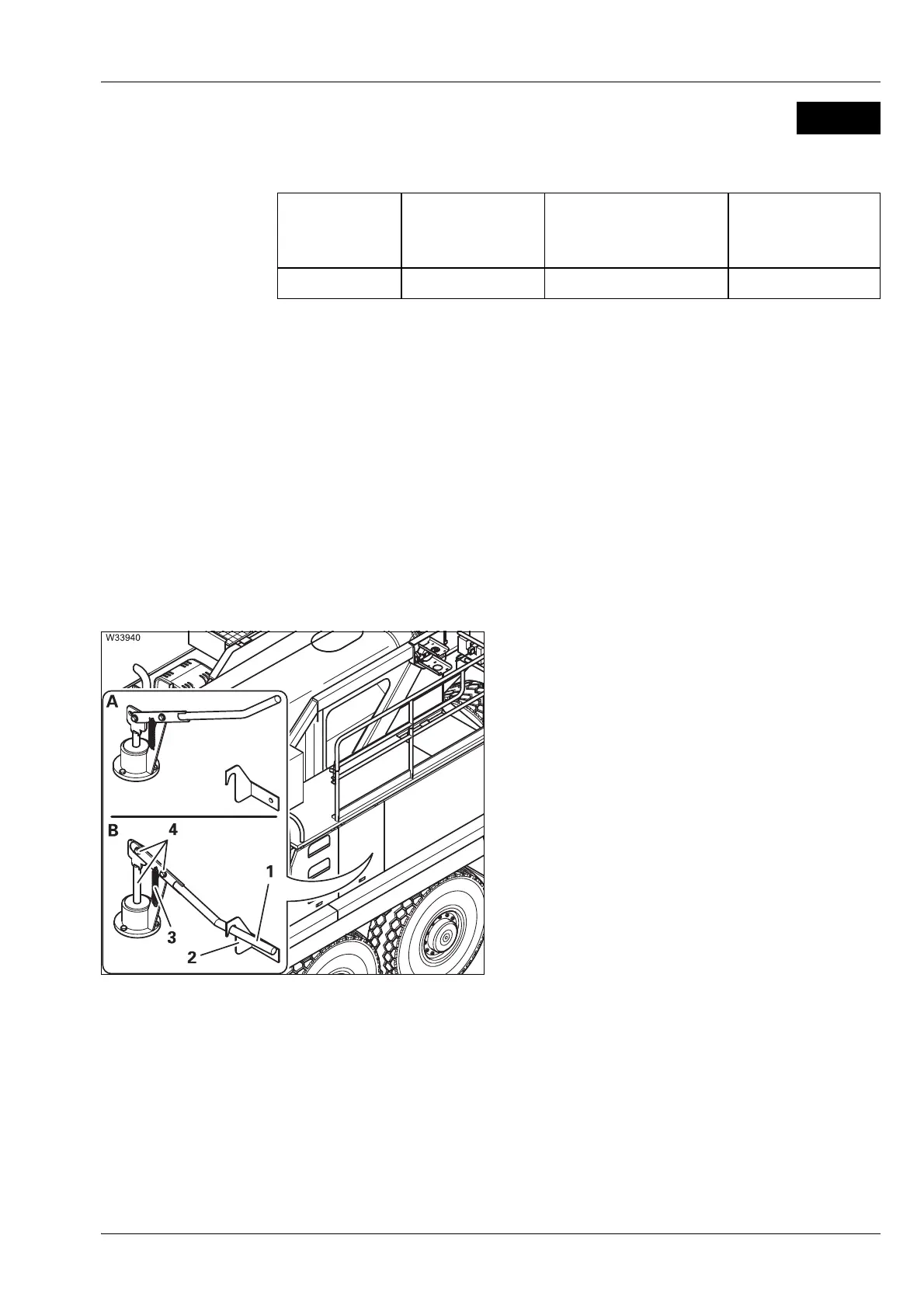

• Familiarize yourself with the operation of the turntable locking and
observe the safety instructions;
à Manual de instrucciones.
• Use a brush to lubricate the lubrication
points (4).
• Check the lever linkage (1), the retainer (2)
and the spring (3) for damage and correct
operation in both conditions:
(A) – turntable locked;
(B) – turntable unlocked.
Lubricating
grease
Designation
according to
DIN 51502
Specification
Classification
GROVE part no.
Grease KP - 1K - 50 DIN 51825 03233369
