Maintenance work on the carrier
7.11 Suspension
7 - 72 3 302 719 en Maintenance manual
GMK6300L-1
13.02.2018
7.11.2 Suspension struts – checking the fastening
Spare parts and
tools
– Torque wrench for torques up to 900 Nm (664 lbf ft).
Prerequisites – The truck crane must be raised on outriggers;
à Manual de instrucciones.
– The engine must be switched off and secured against unauthorised
use
;
à p. 2 - 3.
– The wheels must have been removed.

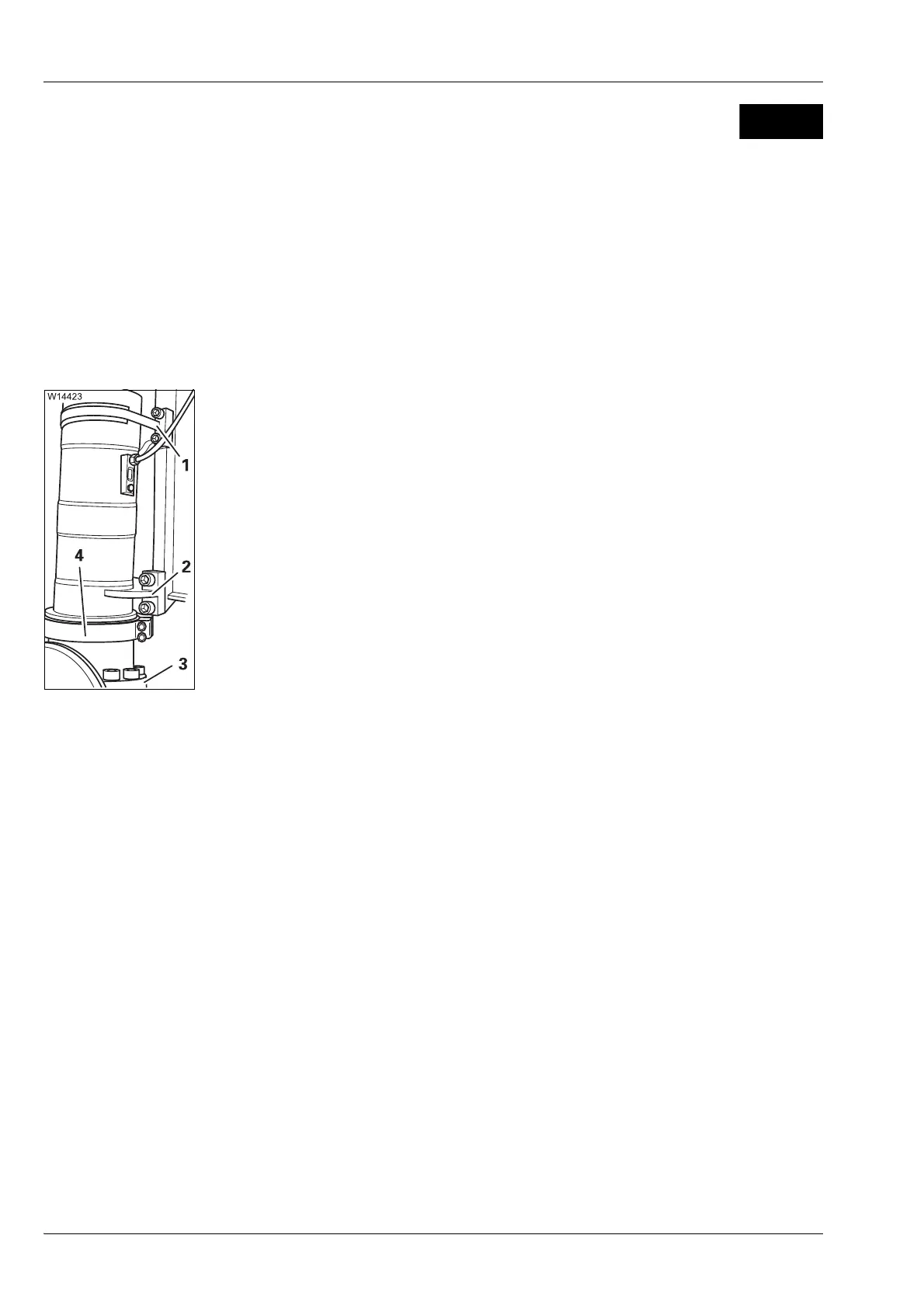

• Check that the screws on all suspension struts are securely seated;
à Special torques, p. 10 - 2:
1 on the upper bracket,
2 on the lower bracket,
3 on the lower flange,
4 on the half shells for the steering lever.
