8.3.9 Change the silicate cartridge
Spare parts and
tools
– Torque wrench for a torque of 50 Nm (36 lbf ft).
Prerequisites – The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
– The coolant must be drained;
à Changing the coolant, p. 8 - 23.
Changing
At the coolant pump

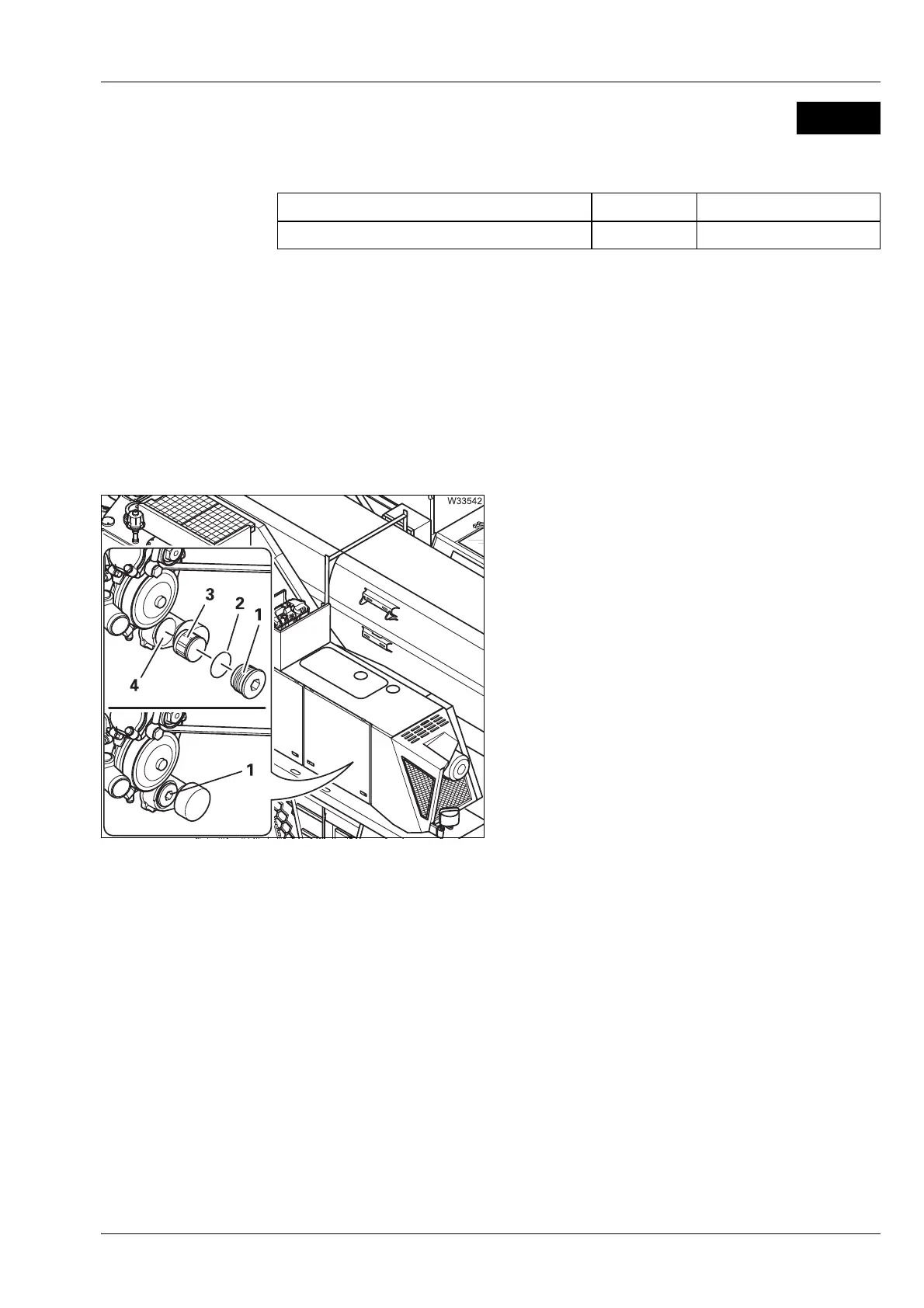

• Remove the cover (1).
• Remove the used silicate cartridge (3) from
the housing (4).
• Clean the housing, if necessary (3).
• Insert the new silicate cartridge (3) with the
new O-ring (2).
• Tighten the cover (1) – torque 50 Nm (36 lbf ft);
à Engine manufacturer’s documentation.
• Top up the coolant; à Changing the coolant,
p. 8 - 23.
• Check that the cover on the housing is
leak-tight.
Y 3
Designation Quantity GROVE part no.
Silicate cartridge with O-ring 1 04165276
