Maintenance work on the carrier
7.4 Fuel system
13.02.2018
Maintenance manual 3 302 719 en 7 - 25
GMK6300L-1
7.4 Fuel system

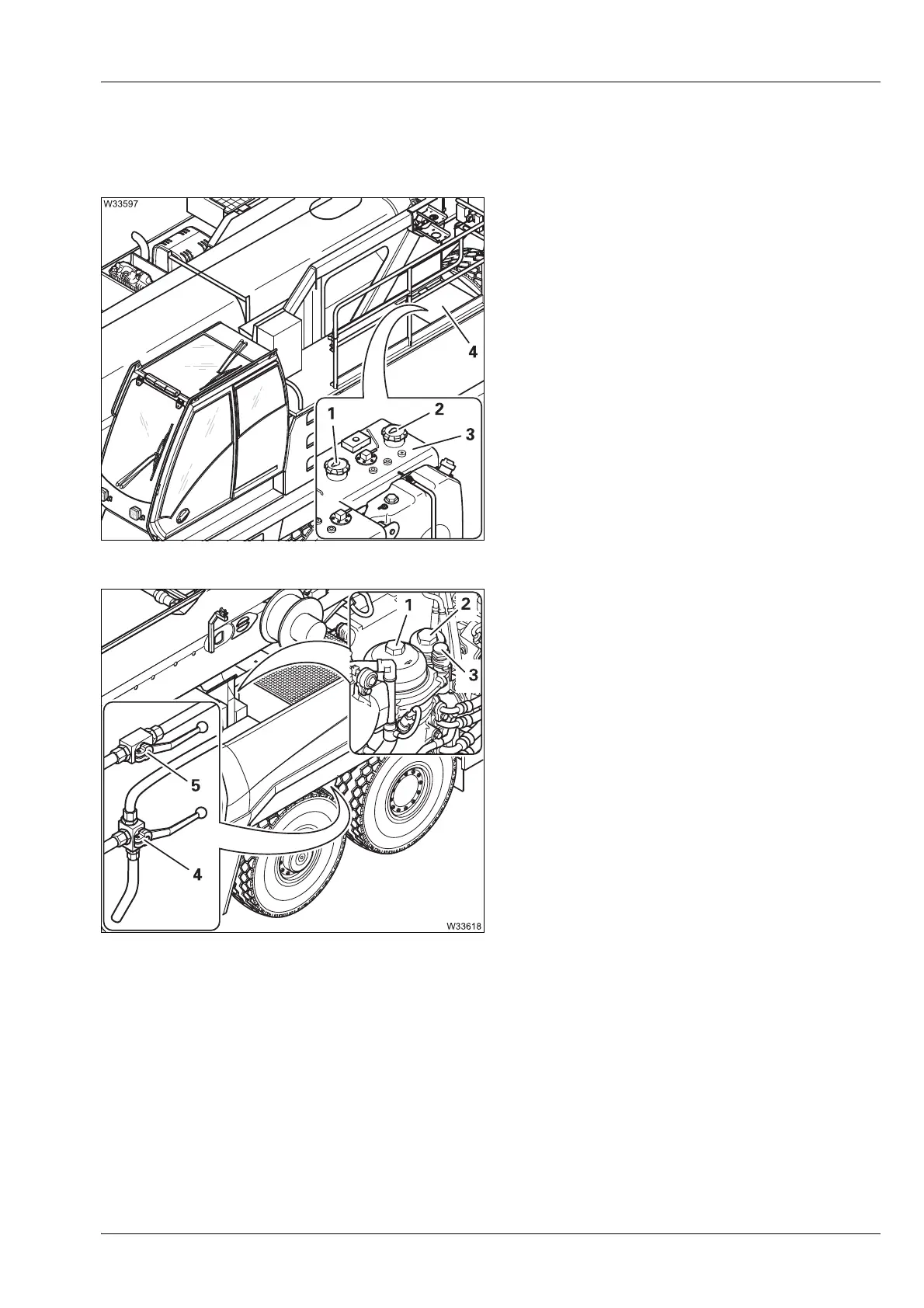

To fill up with fuel you must open the cover (4)
over the 2-chamber fuel tank (3);
à Manual de
instrucciones
.
The following elements are installed in the
carrier fuel line:
1 Fuel tank for the carrier engine 480 litres
(126 gal)
2 Fuel tank for the superstructure engine
20
0 litres (52 gal)
1 Fuel filter 1 (large)
2 Fuel filter 2 (small)
3 Fuel hand pump
4 3-way valve in the return line,
for draining the fuel
5 Valve in the supply line;
for shutting off the supply
