Manitowoc Grove GMK6300L-1

Maintenance work on the superstructure
8.12 Cable drums and slewing angle sensor
13.02.2018
Maintenance manual 3 302 719 en 8 - 105
GMK6300L-1
8.12.2 Lubricating the slewing angle sensor
Grease, spare
parts, tools
– Grease gun from the tool set.
– Sealing agent (e.g. Hylomar).
– Torque wrench for 25 Nm (18.5 lbf ft).
Prerequisites – The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
Lubricating

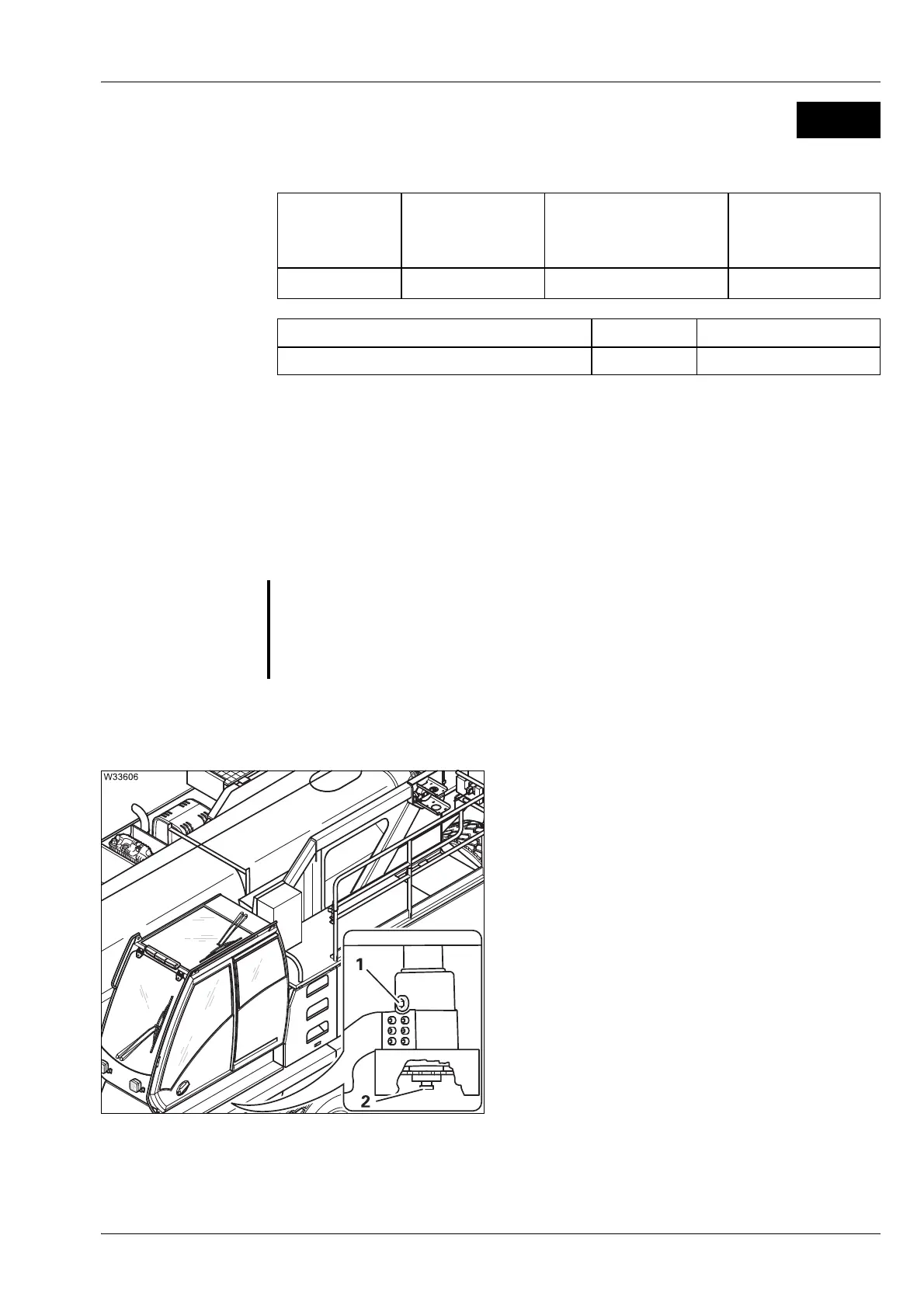

• Remove the drain plug (1).
• Clean the grease nipple (2) and inject
about 5 cm³ (0.3 in³) of grease.
• Remove any excess grease, and close
the grease nipple.
• Tighten the bolt with a new gasket and
sealing agent – torque 25 Nm (18.5 lbf ft).
Y 5
Lubricating
grease
Designation
according to
DIN 51502
Specification
Classification
GROVE part no.
Grease KP - 1K - 50 DIN 51825 03233369
Designation Quantity GROVE part no.
Gasket 16 x 20 Cu DIN 7603 1 00117134
S
Risk of damage to the slewing angle sensor.
Before lubricating, always remove the screw from th
e slewing angle
sensor.
This prevents the slewing angle sensor from damage.
