Maintenance work on the carrier
7.8 Axle lines
13.02.2018
Maintenance manual 3 302 719 en 7 - 55
GMK6300L-1
7.8.4 Final drives – Checking the oil level
Spare parts and
tools
1)
Additional equipment (6th driven axle line)
Prerequisites – The truck crane must be raised on outriggers and must be level.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
– The parking brake must be released.
Checking the
oil leve
l
• Check the oil level at all other final drives
in the same way.

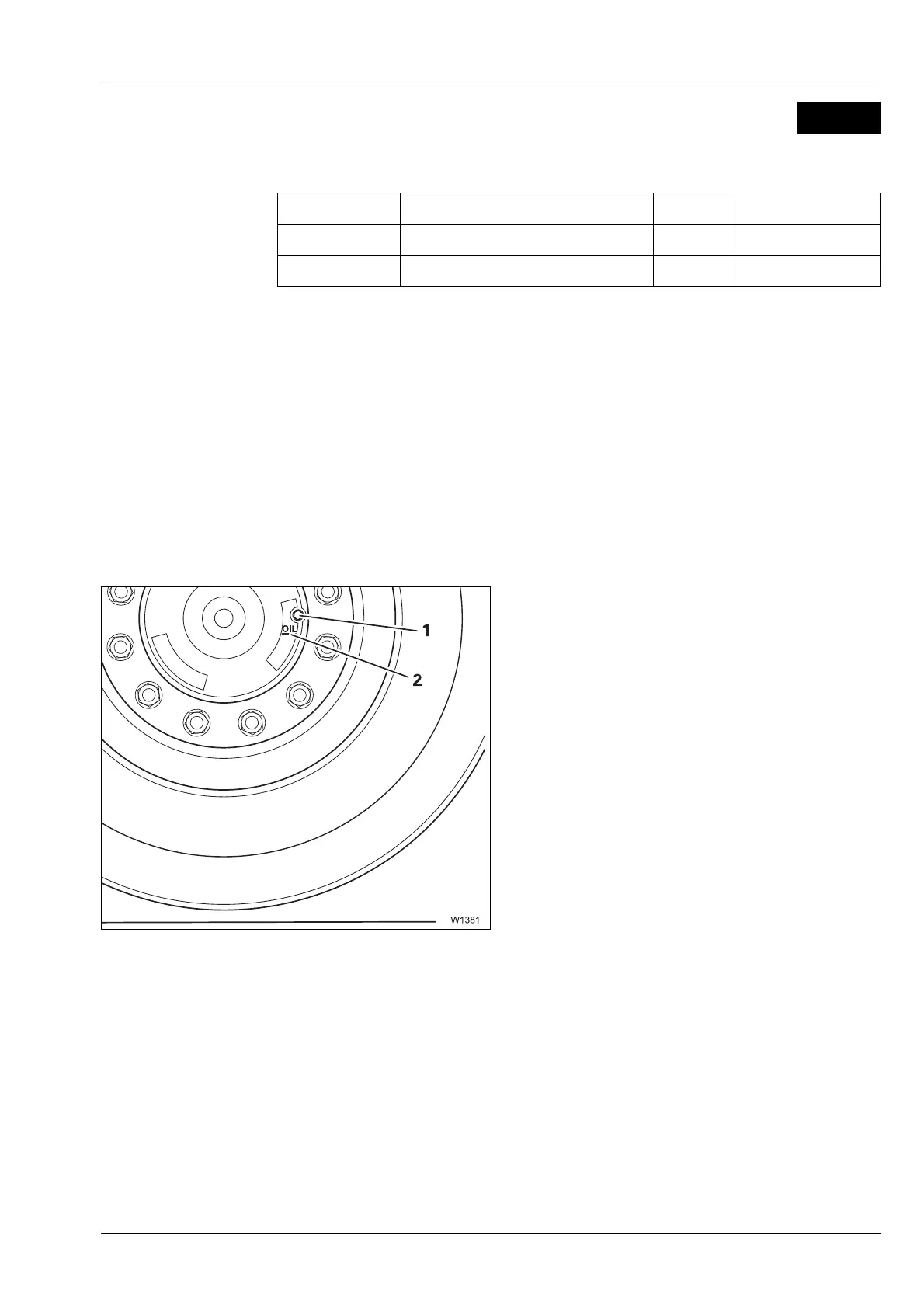

• Turn the wheel until the marking (2) is
horizontal and is on the right, next to
the centre of the axle.
• Remove the drain plug (1).
• Check that the oil level is at the mark (2).
• Fit a new gasket and tighten the screw.
If the oil level is too low
• Top up the oil; à p. 7 - 57.
For drive Designation Quantity GROVE part no.
12 x 6 x 12 Gasket 24 x 29 Cu DIN 7603 6 00117145
12 x 8 x 12
1)
Gasket 24 x 29 Cu DIN 7603 8 00117145
