Manitowoc Grove GMK6300L-1 Maintenance Manual

Maintenance work on the carrier
7.4 Fuel system
13.02.2018
Maintenance manual 3 302 719 en 7 - 27
GMK6300L-1
7.4.2 Replacing fuel filter 1
Spare parts
and tools
– Receptacle, approx. 5 ltr (1.5 gal);
à p. 2 - 4.
– Torque wrench for a torque of 55 Nm (40.5 lbf ft).
Prerequisites – The truck crane must be level and on outriggers;
à Manual de
instrucciones
.
– The main boom must be fully raised;
à Manual de instrucciones.
– The engine must be switched off and secured against unauthorised use;
à p. 2 - 3.
– If the fuel is dirty: Reduce the maintenance interval.
Changing

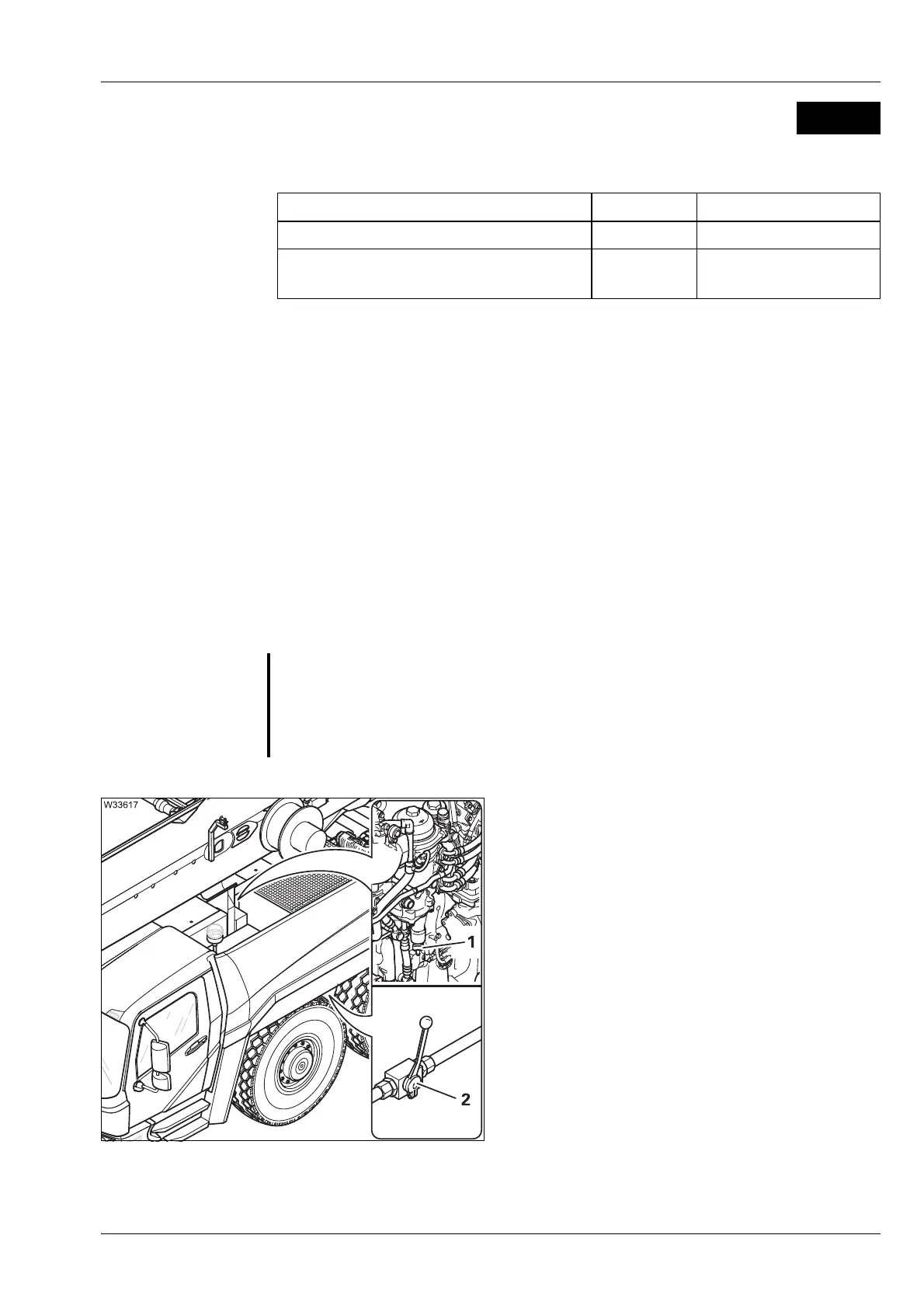

• Place a receptacle underneath the filter.
• Close the valve – lever (2) at right angles
to the line.
• Open the valve (1) and let the consumable
drain out.
s
M 3
Designation Quantity GROVE part no.
Filter (large) 1 04161567
alternatively:
Set for both filters 1 + 2 (large + small)
1 04180966
O
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable recep
tacles. Wipe up any
consumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
