Manitowoc Grove GMK6300L-1 Maintenance Manual

Maintenance work on the superstructure
8.4 Fuel system
8 - 32 3 302 719 en Maintenance manual
GMK6300L-1
13.02.2018
Changing filters 2
and 3

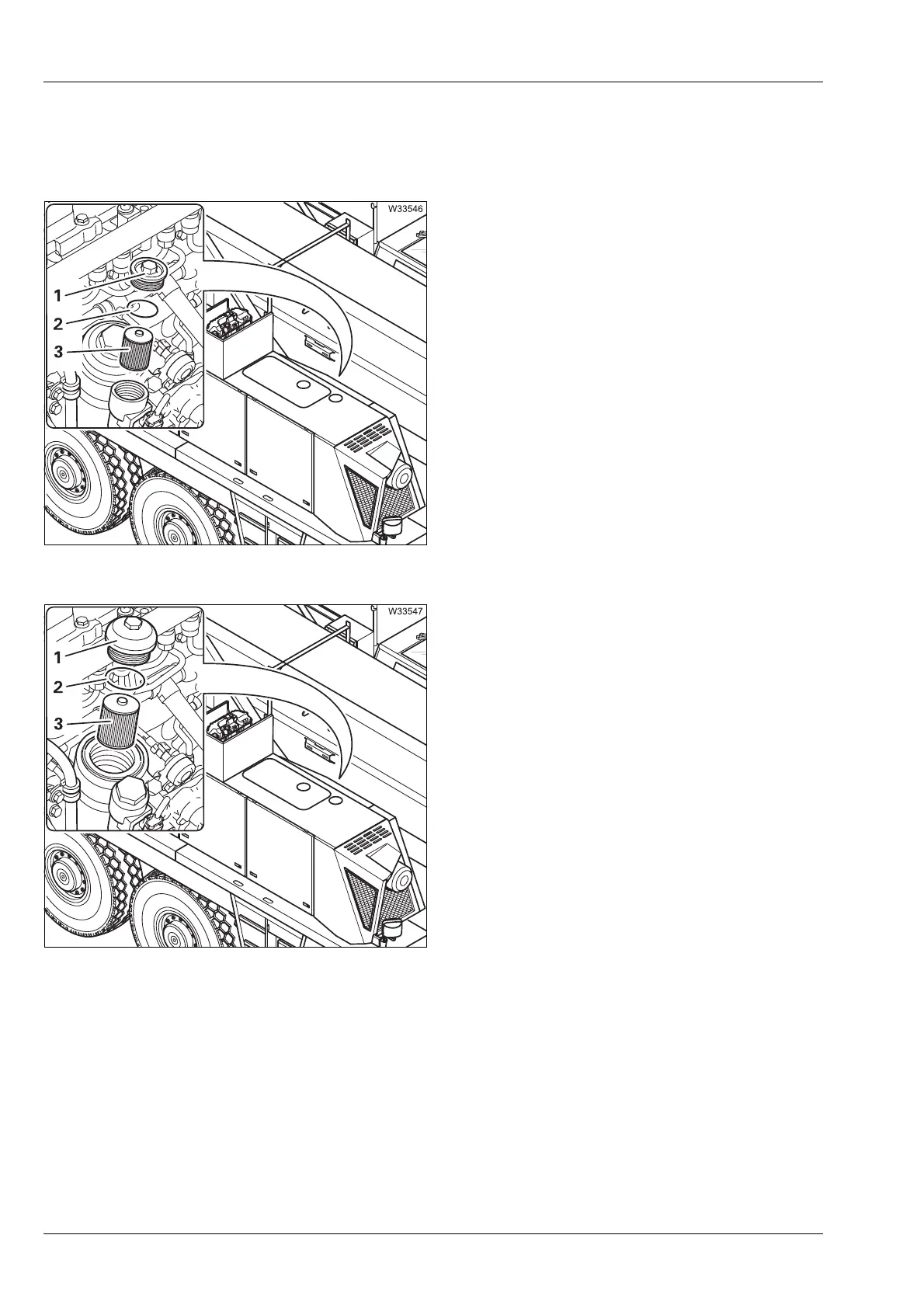

The filters 2 and 3 are on the inner side of the engine behind the rectangular
opening.
Changing filter 2
• Unscrew the cap (1) and remove the filter (3)
so that the consumable can drain.
• Clean the cover (1) and insert a new filter (3).
• Replace the gasket (2) (grease slightly).
• Screw the cap on and tighten it – torque
15 Nm (11 lbf ft).
Changing filter 3
• Unscrew the cap (1) and remove the filter (3)
so that the consumable can drain.
• Clean the cover (1) and insert a new filter (3).
• Replace the gasket (2) (grease slightly).
• Screw the cap on and tighten it – torque
55 Nm (40.5 lbf ft).
