Maintenance work on the carrier
7.9 Wheels
13.02.2018
Maintenance manual 3 302 719 en 7 - 65
GMK6300L-1
Recognising two-
piece aluminium
rims

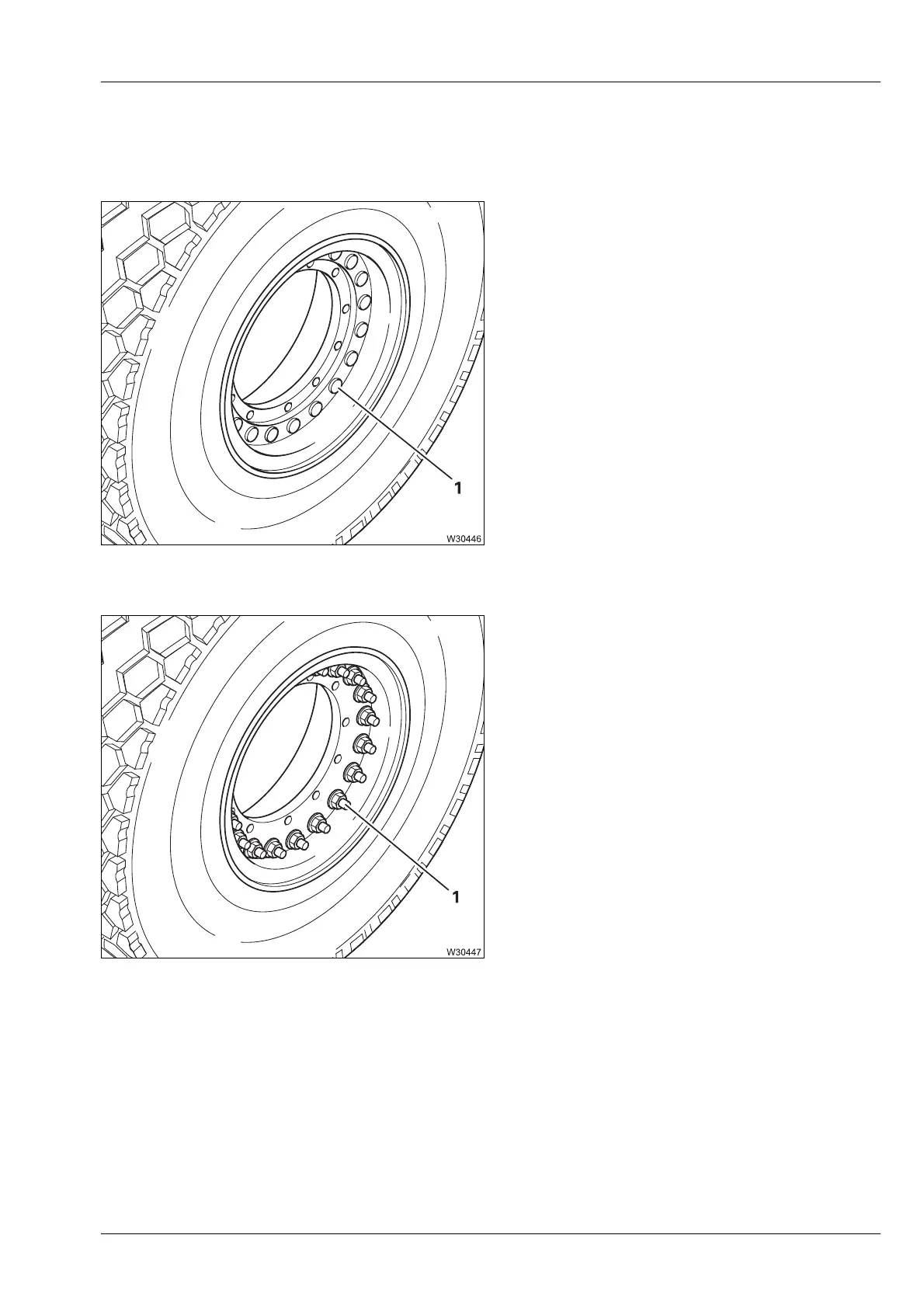

The round-head bolts (1) are on the outer
face
of the rim.
The round heads must be free of cracks, and
the bolts
must be seated securely in the bores.
Around the edge of the aluminium rim there
are impressed marks and safety in
structions
which must be complied with by the specialist
workshop.
The nuts (1) are on the inner face of the rim.
The round heads must be free of cracks and
securely seated on the bo
lts. The torque must
be checked within the specialist workshop.
s
Aluminium rims with 20 nuts:
550 Nm
(406 lbf ft)
Aluminium rims with 22 nuts:
385 Nm
(284 lbf ft)
