Maintenance work on the carrier
7.15 Central lubrication system
7 - 100 3 302 719 en Maintenance manual
GMK6300L-1
13.02.2018
Topping up

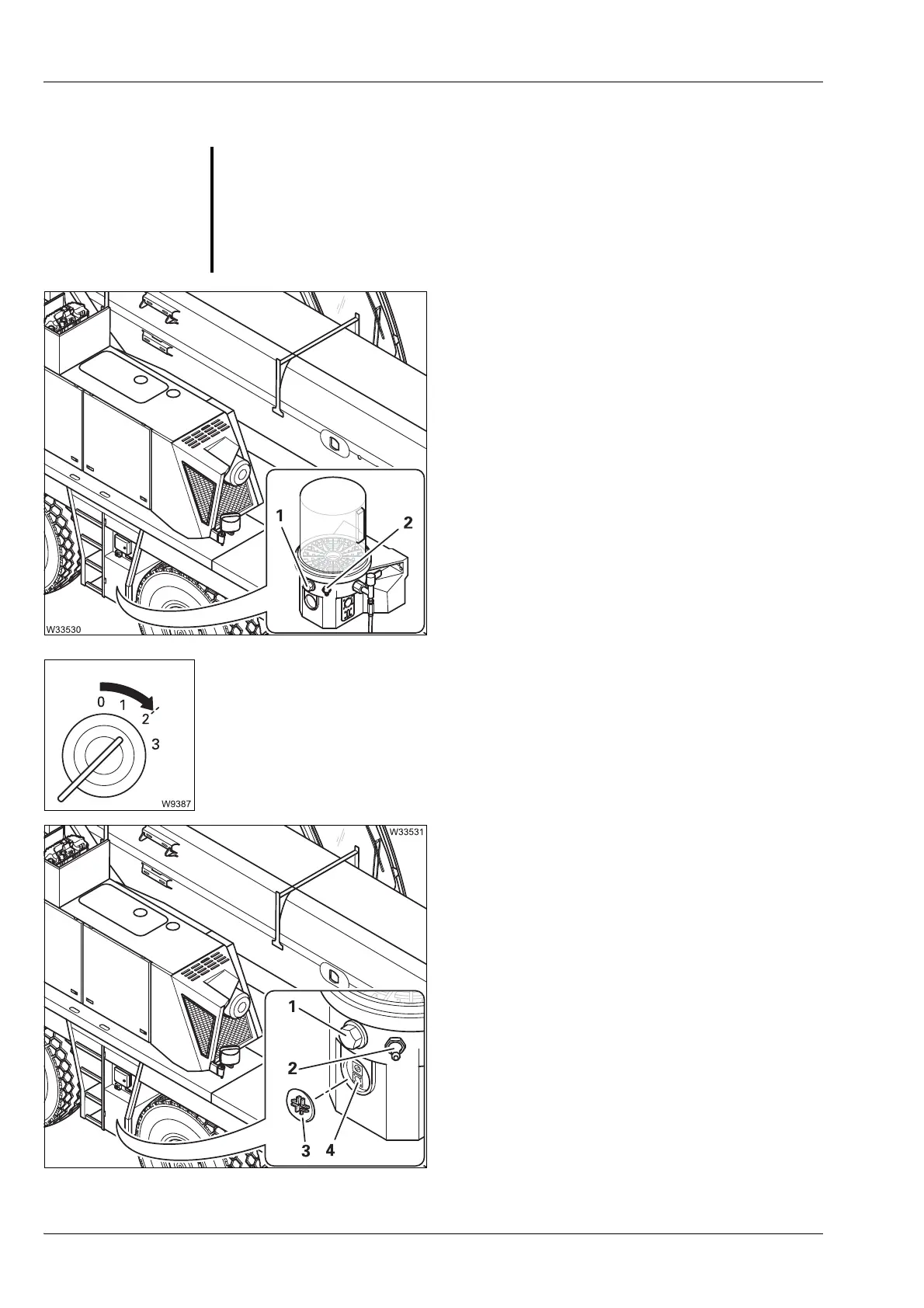

Fill the grease container as follows:
• Switch on the ignition.
• Remove the cap (3).
• Attach the filling pump to connection (1)
or (2).
• Press the button (4) for approx. 2 seconds
once.
Intermediate lubrication will be triggered.
• Fill the grease container up to the max.
marking.
• Remove the filling pump, wipe away
any excess grease and close the holes.
S
Risk of damage to the central lubrication system.
Cleanliness is of the utmost importance when handling grease and filling
pumps.
Do not remove the caps from the opening and filling pump until
immediately be
fore refilling the grease. This prevents dirt particles from
getting into the grease and damaging the central lubrication system.
1 Filling pump tool set:
You must install the connector from
the toolbox.
2 Filling pumps for lubrication nipples
