FlyMarker

mini 85/45 plus and 120/45 plus

Operating Manual

Level 2

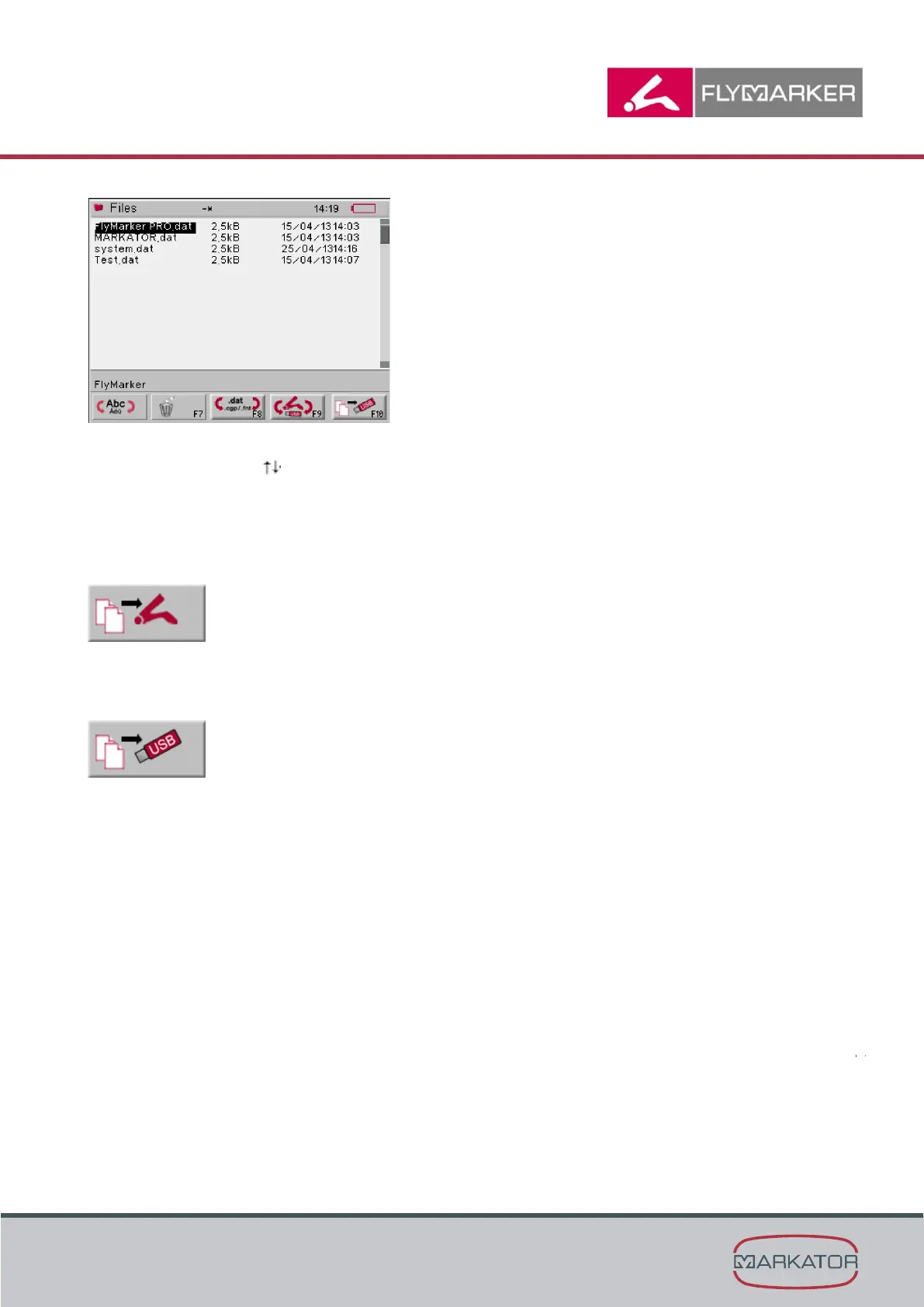

3. Use the arrow keys to select the file to be copied.

4. Press F10.

either:

The highlighted file is copied to FlyMarker

mini.

or:

The highlighted file is copied to USB stick.

F10
