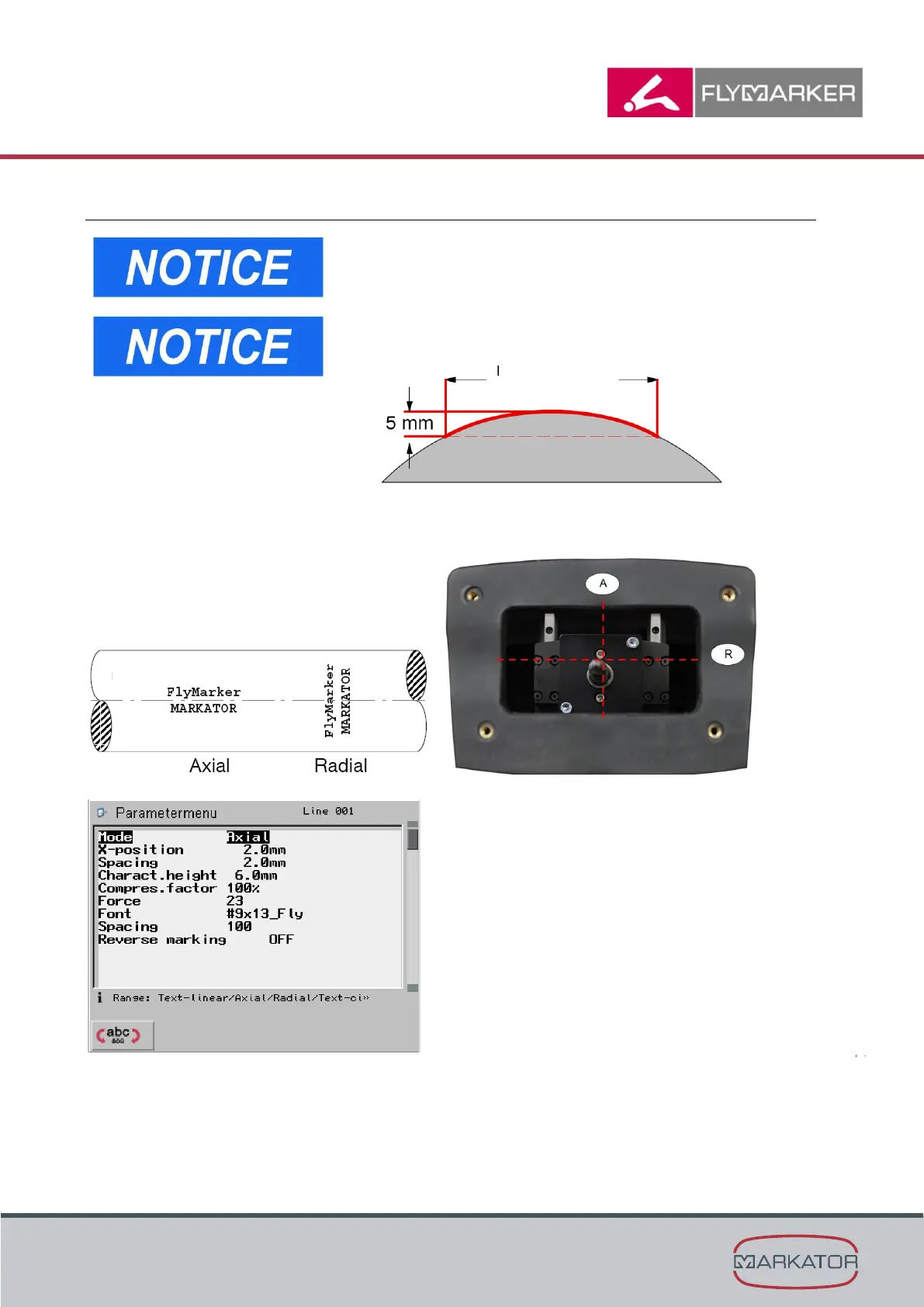

5.2.2.3 Axial (for marking round parts)
Avoid markings in the air.
When marking round parts, the text arc must be smaller
than the stroke of the marking pin (5 mm).
Marking is done in the middle of prism A of the support plate and lengthwise to the axis of the
round part.
Mode
Axial
X-position
Indicates the X coordinates.
markable
text area
