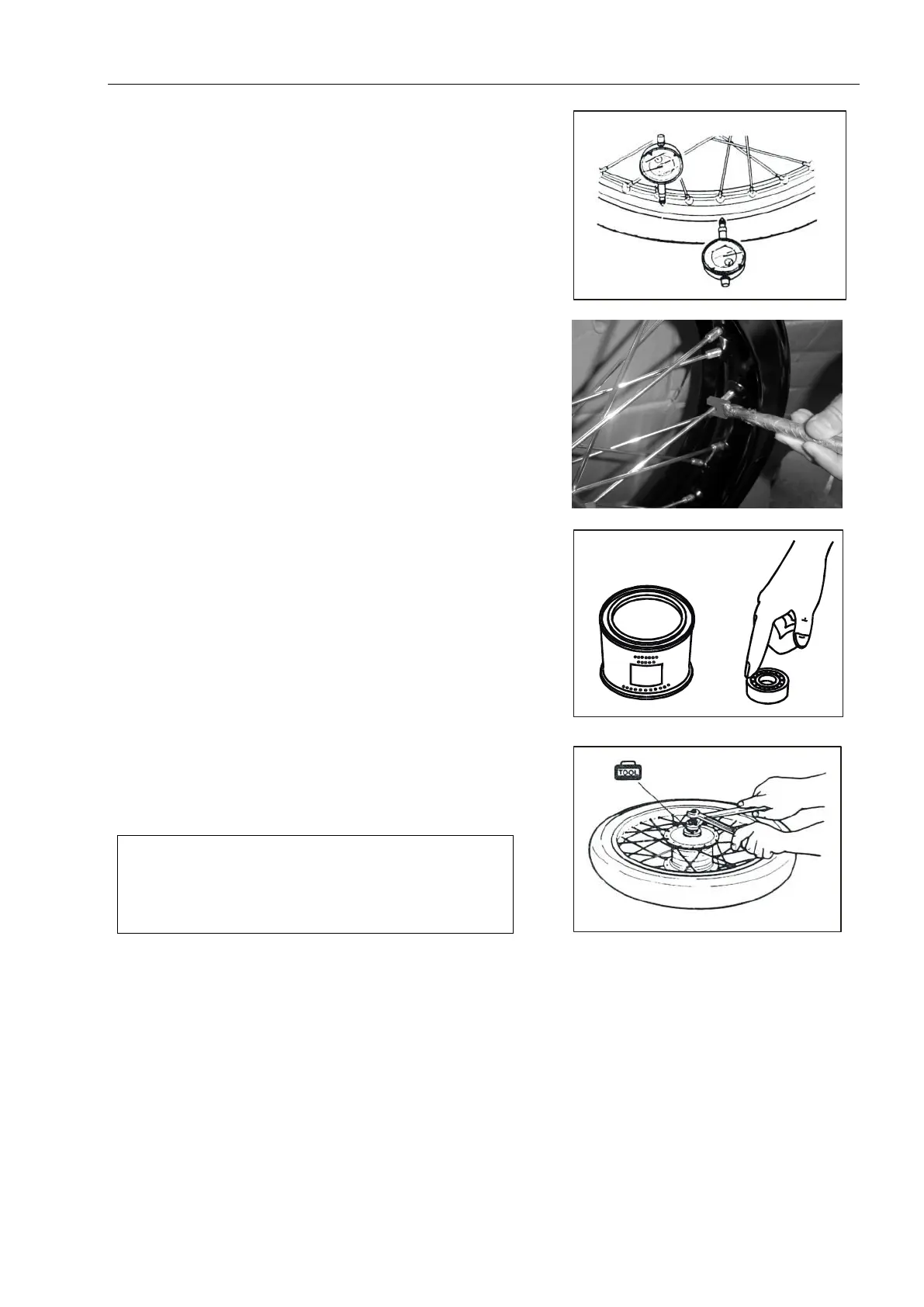

Chapter 6 Chassis section 2 Front wheels
6—4
The front wheel
The yaw (axial and radial) of the wheel should be
checked to see if it exceeds the service limit.
Excessive yaw is usually caused by wear or relaxation
of the wheel bearing.
If replacing the bearing does not reduce the yaw,
adjust the spokes; otherwise, replace the rim.
As Fig. 5.2.9.
Limit of use (axial and radial) : 2.0 mm
The article spoke of hat
Check that all the caps of the spokes are tight and
retighten them using a wrench if necessary.
As Fig. 5.2.10.
Tools: spoke, cap, spanner
Spoke Cap: 4.5 N · m (0.45 kg · m)
reassemble
Before assembly, the bearings are coated with super
grease.
As Fig. 5.2.11.
Using a special tool, install the wheel bearings as
described below.
As Fig. 5.2.12.
Tools used: Bearing mounting tools
Note:
First install the left wheel bearing, then install
the right wheel bearing.
Bearing seal cover must face outwards.
Fig.5.2.9
Fig.5.2.10
Fig.5.2.11
Fig.5.2.12
