Chapter 6 Chassis section 5 Steering
6—21
Remove the left rearview mirror.①
Remove the left handle counterweight.
(This is only for vehicles with counterweights)
Remove the two screws fastening the left hand handle
switch and remove the left hand handle switch assembly
.②
Decompose the clutch switch line .③
Decompose the clutch tension line .④
Remove the two retaining bolts holding the clutch
handle seat cover.
Remove clutch handle assembly.
As Fig. 5.5.4.
Remove the upper block retaining bolts.
Remove handle bar welding assembly.
As Fig. 5.5.5
Remove the left and right fixing bolts of the
headlamp cover, remove the screws of the headlamp and
headlamp housing, and remove the headlamp cover
⑤
.
As in Fig.5.5.6.
Disconnect the headlamp connecting wire
and remove the headlamp.⑥⑦
As in Fig.5.5.7.
Disassemble connectors for wiring harness combination
of left and right turn signal holder.As in Fig.5.5.13

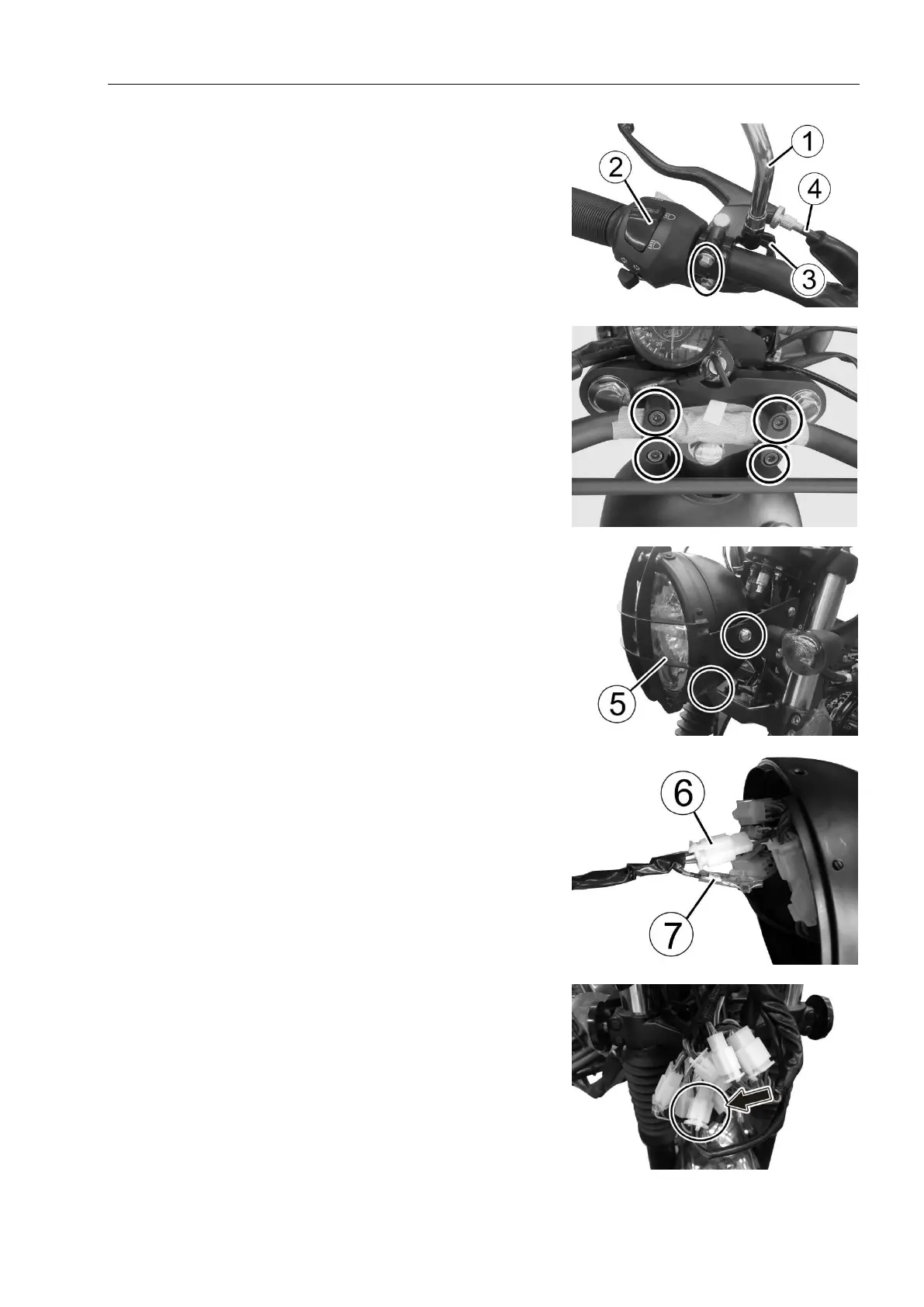

Fig.5.5.4
Fig.5.5.5
Fig.5.5.6
Fig.5.5.7
Fig.5.5.8
