Mash Seventy - Page 163

Chapter 6 Chassis section 5 Steering
6—22
Remove front left and right turn signal mounting
nuts.
As Fig. 5.5.9.
Remove the front and left turn signals.
Decompose the speed odometer connector.
As in Fig.5.5.10.
Remove the speedometer mounting bolt .①
Decomposing the soft axis of the speedometer .②
Remove the speedometer.
As in Fig.5.5.11.
Remove speedometer bracket mounting bolts.
Remove headlight holder and speedometer holder.
As in Fig.5.5.12.
Disassemble ignition switch lock connector.
As in Fig.5.5.13.

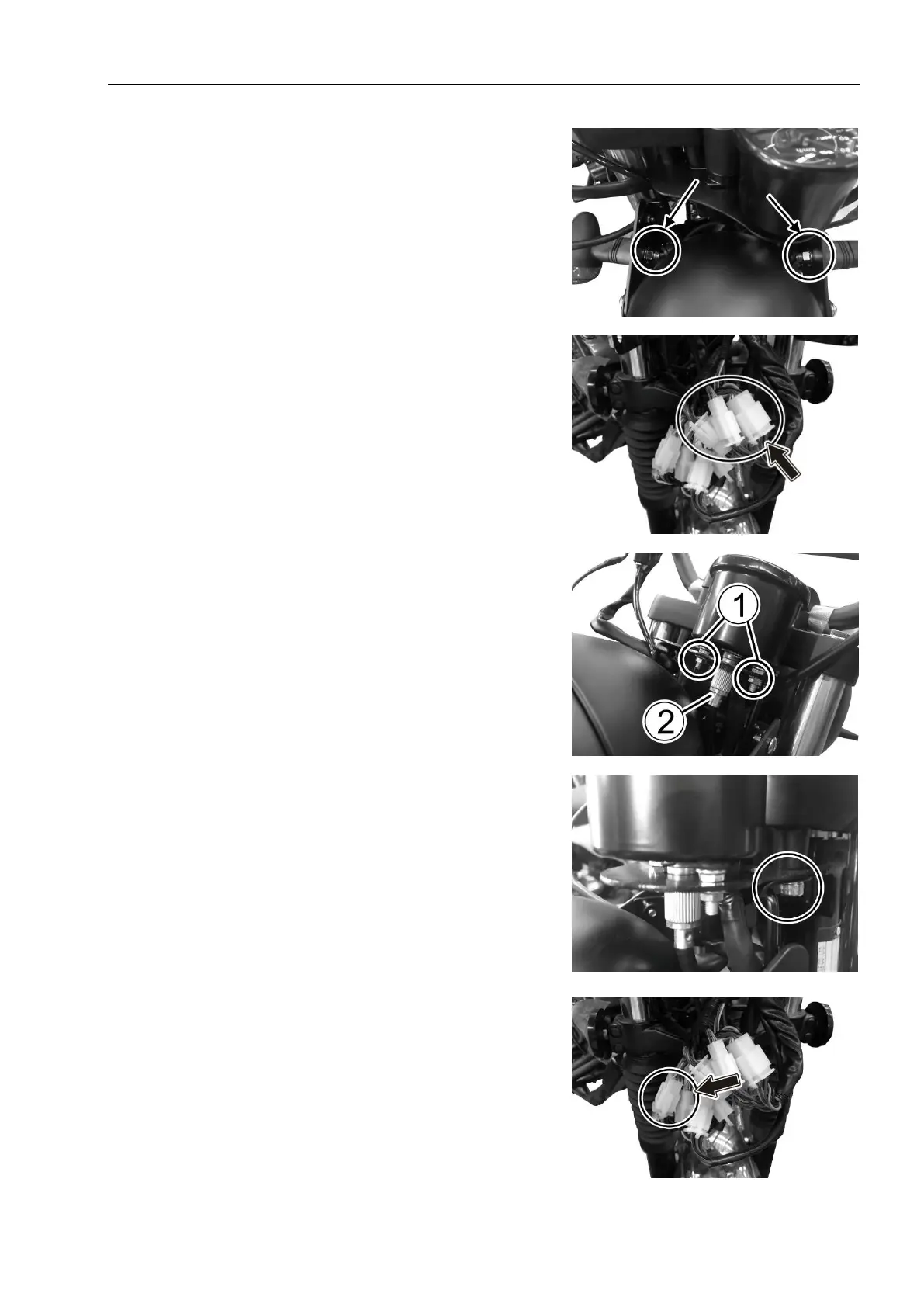

Fig.5.5.9
Fig.5.5.10
Fig.5.5.11
Fig.5.5.12
Fig.5.5.13
