Chapter 3 Engine Section 4 Inspection and maintenance of engine componenets
3—33

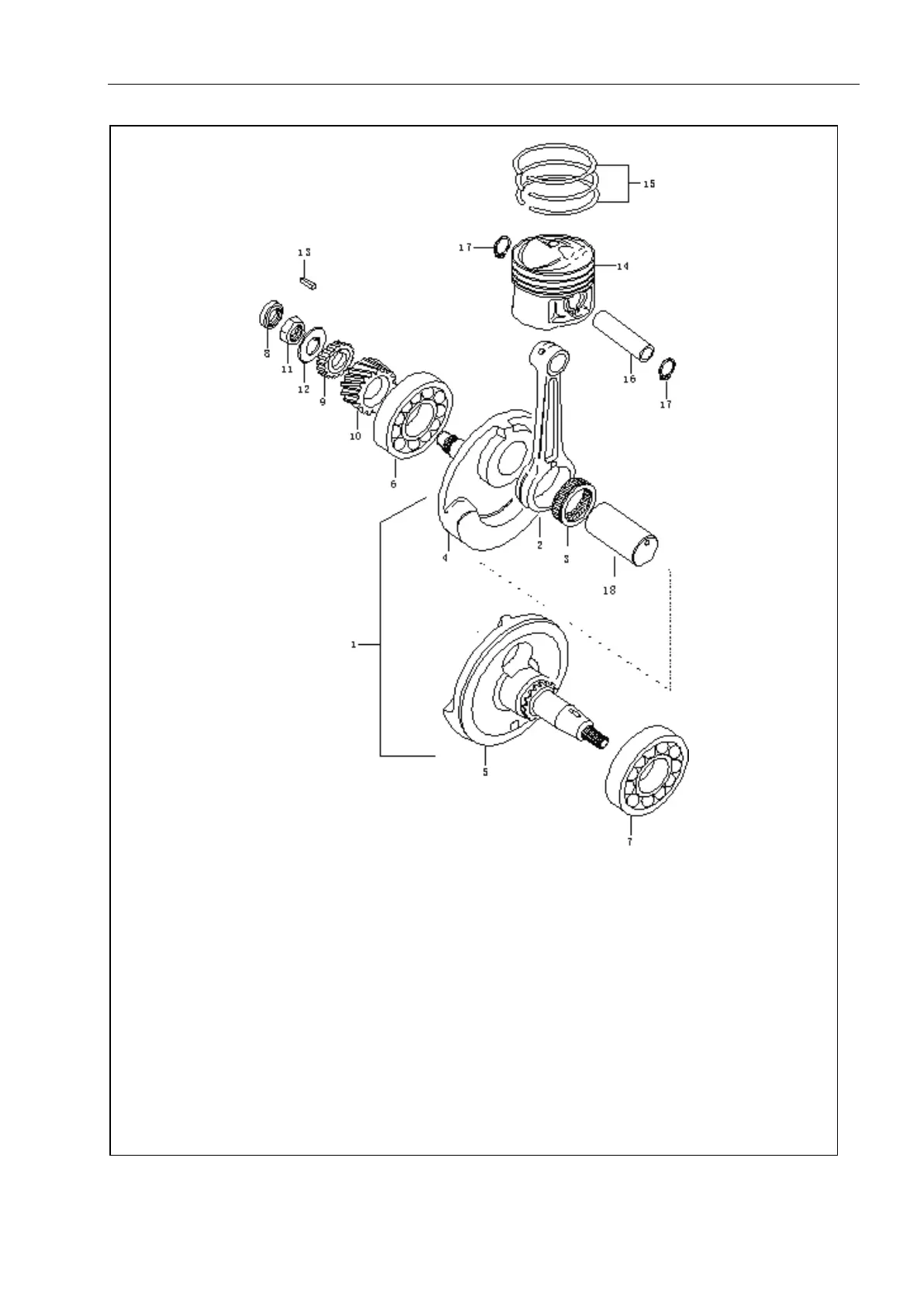

Crank and connecting rod
1 Crank connecting rod assy 10 Primary drive gear NT:17
2 Connecting rod 11 Nut M16
3
Needle roller bearing 28×36×15.8
12 Lock washers
4 The right crank 13 key
5 Left the crank 14 Piston
6
Right crank bearing 28×68×18
15 Piston ring assy
7
Left crank bearing 35×72×17
16 Piston pin
8
Oil seal on the right side 12×21×7
17 Piston pin clamp spring
9 Oil pump driving gear NT:15 18 Crank pin
