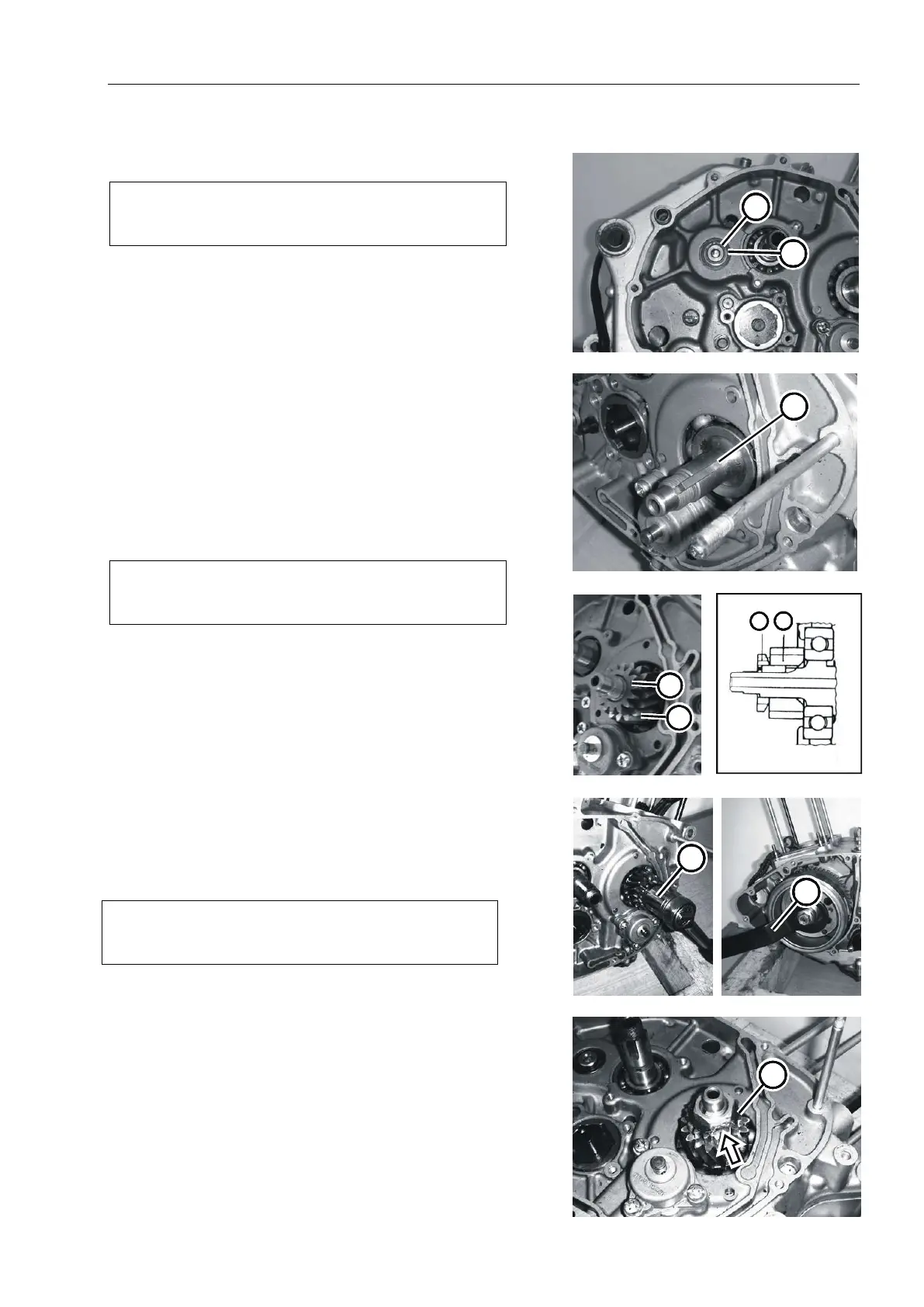

Chapter 3 Engine Section 5 Engine reassembly
3—46
The drive shaft seat
Install the washer①and shaft baffle ring
②on the drive shaft.
As in Fig.3.5.21
Note:
New shaft retainers should be used.
Primary drive gear and oil pump drive gear
Install key on the crankshaft.③
As in Fig.3.5.22
Install primary driving gear④and oil pump driving
gear .⑤
Note:
Install oil pump driving gear as shown.
As in Fig.3.5.23
Assemble lock washer and secure primary drive gear
and oil pump drive gear with M16 nut. As in Fig.3.5.24
Tighten primary drive gear/oil pump drive gear nut at
specified torque using special tool.
Tools: rotor gripper socket wrench ⑦ ⑥
Primary drive gear/Oil pump drive Gear nut: 50 N · m
(5.0 kg · m)
Bend the lock washer⑧..As in Fig.3.5.25
Fig.3.5.21
1
2
Fig.3.5.22
3
Fig.3.5.23
4
5
4
5
Fig.3.5.24
6
7
Fig.3.5.25
8
Note:
The nut is of left thread.
