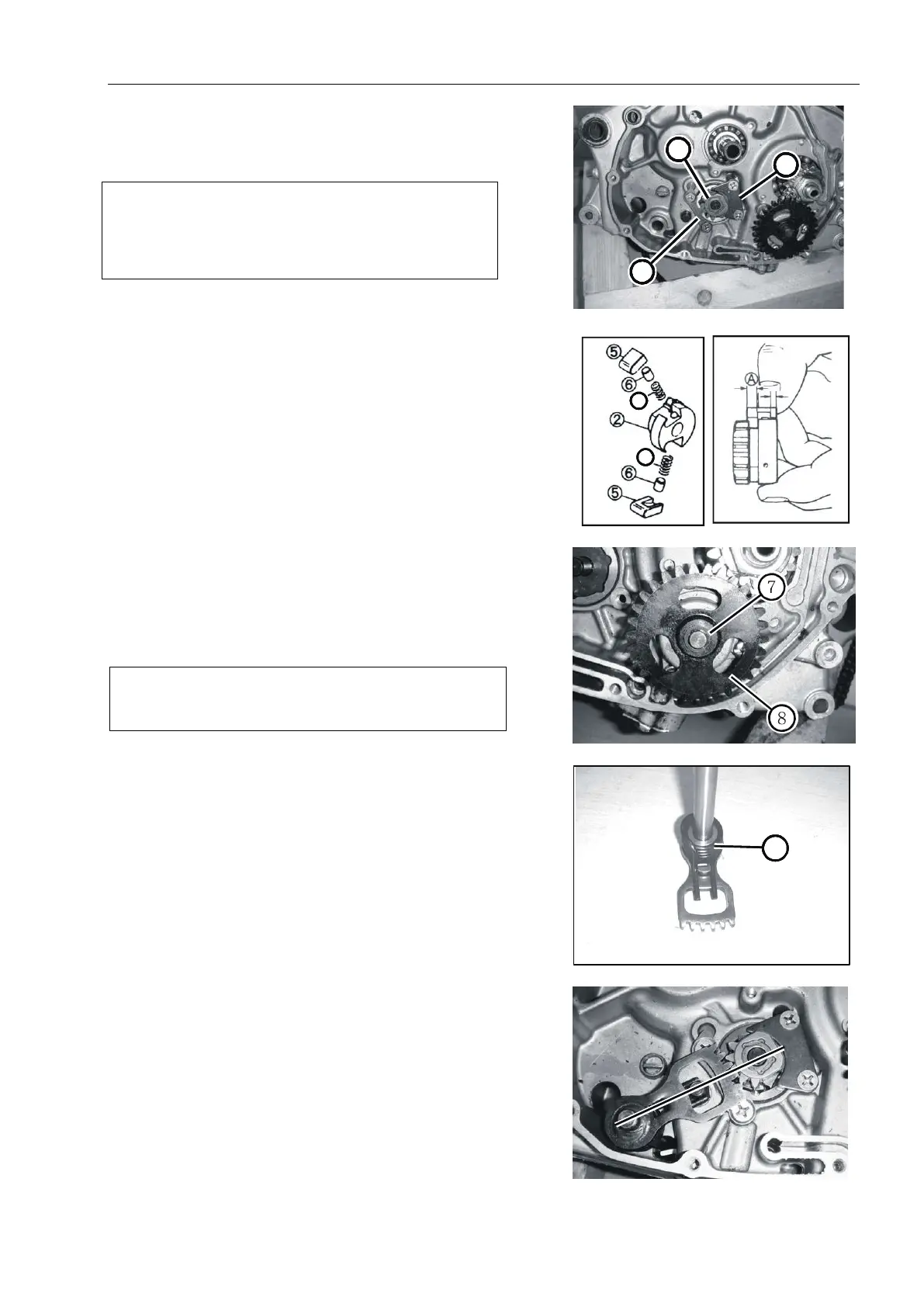

Chapter 3 Engine Section 5 Engine reassembly
3—47
Install shift CAM driven tooth block assembly.
Install CAM baffle , shifting CAM follower tooth block ①
and CAM retainer .② ③
As in Fig.3.5.26
Assembly method of shifting CAM follower tooth
block
Install each gear claw on the shifting CAM
driven tooth block.
② Shift CAM driven tooth block
④ Spring
⑤ I，II
⑥ pin
As in Fig.3.5.27
Oil pump shaft is installed on the drive pin, oil pump
gear and ring .⑥ ⑦
Note:
Use a new retainer.
As in Fig.3.5.28
Install the shift shaft torsion spring and the shift ⑨
shaft sleeve on the shift shaft.
As in Fig.3.5.29
Install the shift shaft.
Align the central tooth on the shifting shaft with the
central tooth on the shifting CAM driven tooth block.
As in Fig.3.5.30
Fig.3.5.26
3
2
1
Fig.3.5.27
4
4
Fig.3.5.28
Fig.3.5.29
9
Fig.3.5.30
Note:
The large shoulder must face outwards.
Apply a small amount of thread sealant to the
screw threads
