Chapter 3 Engine Section 5 Engine reassembly
3—48

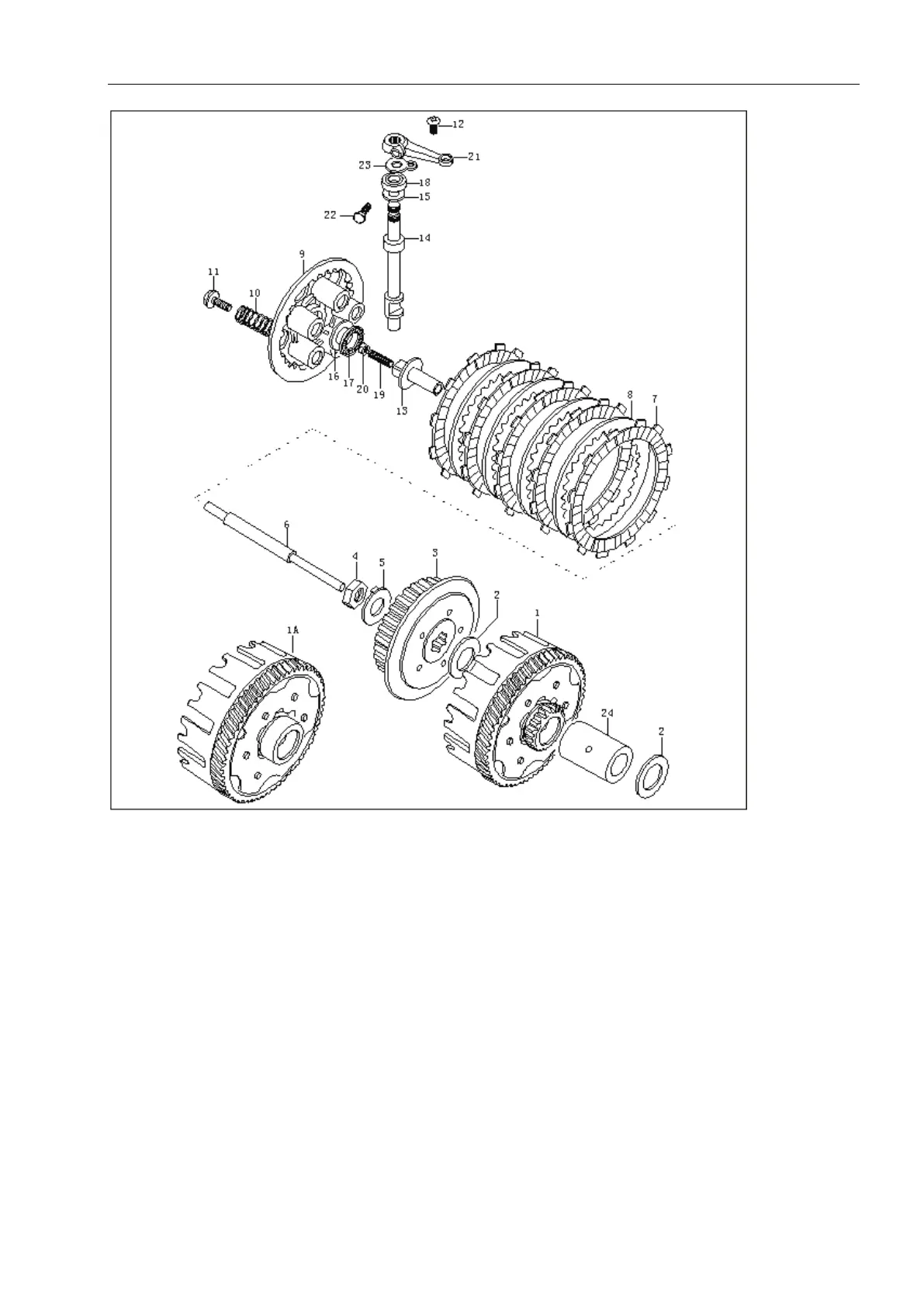

Clutch
1.Clutch big hub
combination (double
starting)
1A.Clutch big hub
combination (electric
starting)
2.Flat washer 3.Clutch spline
sleeve
4.Nut M16 5.Insurance washer 6.Clutch push rod assembly 7.Active friction
plate
8.Driven piece 9.Clutch spring disc 10.Clutch spring 11.Bolt M5×16
12.Bolt M6×10 13.Clutch top column 14.Clutch separation
camshaft
15.Flat washer
16.Flat washer 17.End face needle roller
bearing
18.Oil seal 19.Top silk
M6×25
20.Nut M6 21.Clutch arm 22.Bolt M6×16 23.Oil seal clamp
24.Clutch big hub inner
sleeve
