Chapter 3 Engine Section 5 Engine reassembly
3—56

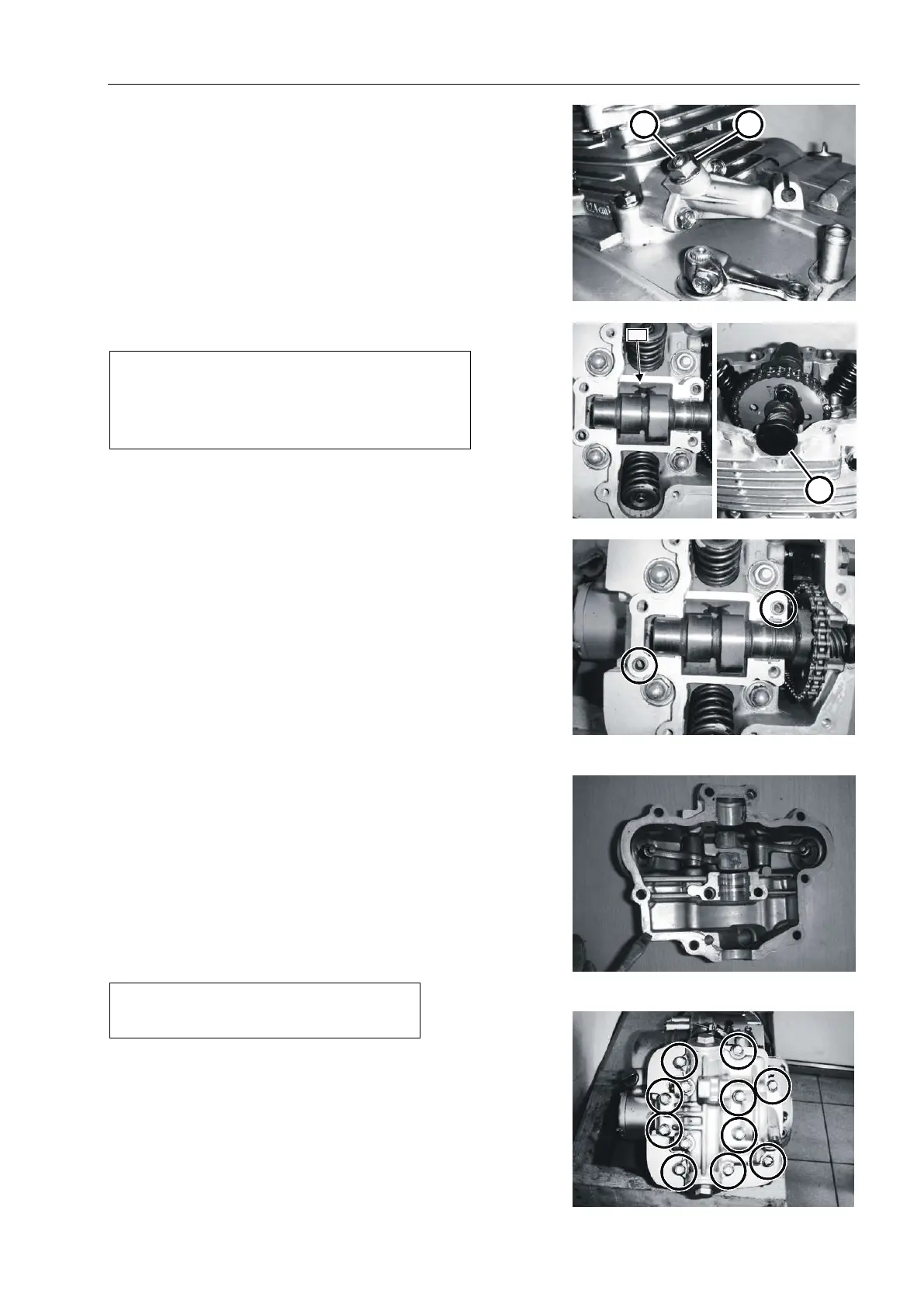

Turn the crankshaft in the normal direction and stop in
the exhaust valve position.
Loosen the positioning screw (2) for 1 turn.
Tighten the setting screw (2), lock the thruster rod, and
then tighten the nut (1) according to the specified torque.
As Fig. 3.5.66
Chain extender anchor nut: 12 n·m (1.2 kg·m)
Cylinder cranium
Fuel each tank in the cylinder head.
Note:
Turn the crankshaft to check that all
moving parts (e.g. CAM chain, camshaft) are
working properly.
Apply plane sealant and install the camshaft end cover ③
As in Fig.3.5.67
Clean the mating surface of cylinder head and cylinder
head cover.
Install the locating pin.
As in Fig.3.5.68
Evenly apply plane sealant to the matching surface of
the cylinder head cover, and then install it in a few minutes.
As in Fig.3.5.69
Note:
Install the new washer on the bolt.
Tighten cylinder head bolts with specified torque.
Cylinder head bolts: 10 n·m (1.0 kg·m)
As in Fig.3.5.70
Fig.3.5.66
1
2
Fig.3.5.67
O
IL
3
Fig.3.5.68
Fig.3.5.69
Fig.3.5.70
