Chapter 4 EI system diagnosis Section 1 Maintenance Precautions
4—2
Clamp
See "Wiring, Cables and Hoses Setup Routes" for
proper clamping procedures.
Bend clamp appropriately as shown.
Do not let the main thread hang down when clamping.
Do not use wire or other objects instead of belt
clips.As in Fig.6.1.6..
FUSE
When a fuse blows, always investigate the cause
to correct it and then replace the fuse.
Do not use a fuse of a different capacity.
Do not use wire or any other substitute for the fuse.
As in Fig.6.1.7..
ECU / VARIOUS SENSORS
Since each component is a high-precision part,
great care should be taken not to apply any sharp
impacts during removal and installation.
As in Fig.6.1.8..
Be careful not to touch the electrical terminals of the
ECU.
The static electricity from your body may damage this
part. As in Fig.6.1.9.
When disconnecting and connecting the ECU, make sure to
turn “OFF” the ignition switch, or
electronic parts may get damaged..As in Fig.6.1.10..

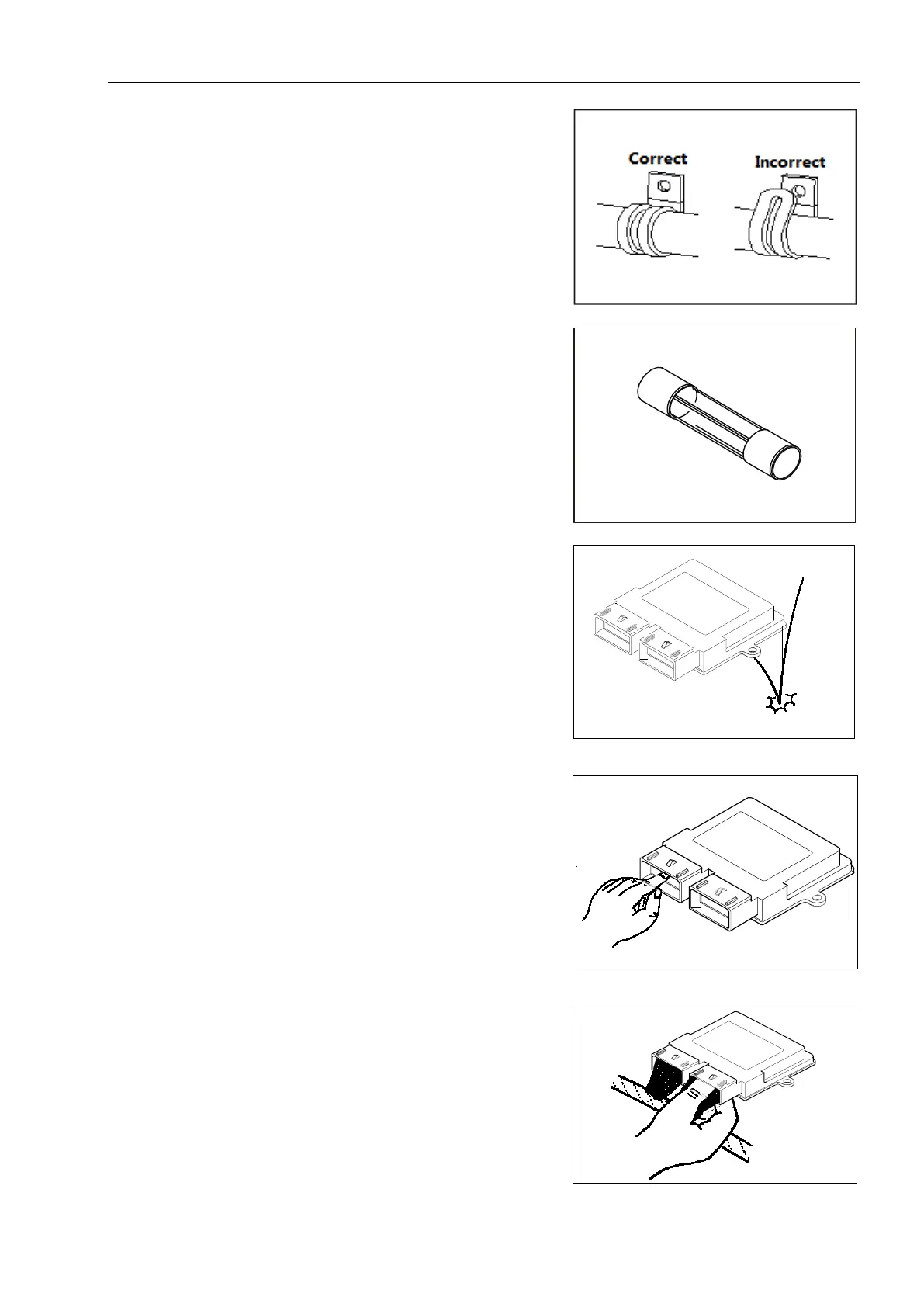

Fig.6.1.6
Fig.6.1.7
Fig.6.1.8
Fig.6.1.9
Fig.6.1.10
