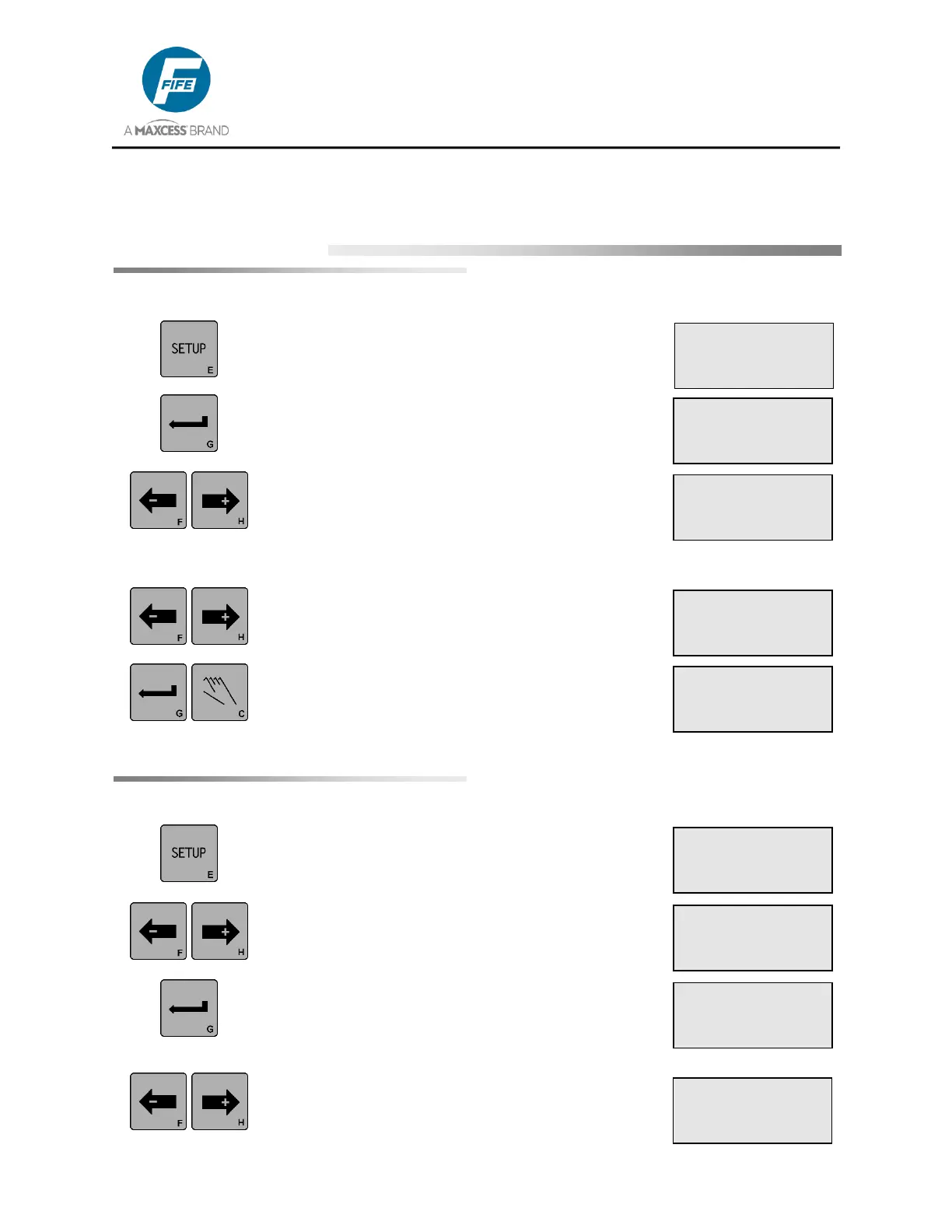

5 SYSTEM SETUP MENUS
AVAILABLE FROM SERVO-CENTER MODE
2X.1, Servo-Center Gain
1. Press the SETUP key to enter the Setup Menus.
The Servo-Center (~ƒ) GAIN menu will be
displayed on the LCD Panel.
2. Press the ENTER key to allow adjustment of the
Servo-Center Gain. The Gain value will begin
flashing on line 4.
3. Use the ARROW keys to adjust the Gain to the
desired level as indicated on line 4. If an
ARROW key is held down, the speed of the Gain
change increases. The change is effective
immediately, but not stored.
4. If desired, press both of the ARROW keys
simultaneously to reset the Servo-Center Gain
to 5.0% as indicated on line 4.
5. Press the ENTER key to store the change or
press the MANUAL key to abort the change. The
system will exit the setup menus and return to
the Operator Level.
2X.2, Servo-Center Guide Point
1. Press the SETUP key to enter the Setup
Menus. The Servo-Center (~ƒ) GAIN menu will
be displayed on the LCD Panel.
2. Use the ARROW keys to scroll until ~ƒ GUIDE
POINT is displayed on line 3.
3. Press the ENTER key to allow adjustment of the
Servo-Center Guide Point. The Guide Point
value will begin flashing on line 4.
4. Use the ARROW keys to adjust the SC Guide
Point to the desired position as indicated on line
4.
