7. Press the ENTER key to store the change or
press the MANUAL key to abort the change. The
system will exit the setup menus and return to
the Operator Level.
3X.1.7, Servo-Center Polarity
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed.
2. Press the ENTER key to enter the BASIC
Menus. The GAIN menu will be displayed.
3. Use the ARROW keys to scroll until ~ƒ
POLARITY is displayed on line 3.
4. Press the ENTER key to allow adjustment of the
Servo-Center Polarity. The current Polarity
setting will begin flashing on line 4.
5. Use the ARROW keys to adjust the Servo-
Center Polarity to the desired setting as
indicated on line 4.
6. Press the ENTER key to store the change or
press the MANUAL key to abort the change. The
system will exit the setup menus and return to
the Operator Level.
3X.1.8, Measurement
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Press the ENTER key to enter the BASIC
Menus. The GAIN menu will be displayed.
3. Use the ARROW keys to scroll until
MEASUREMENT is displayed on line 3.

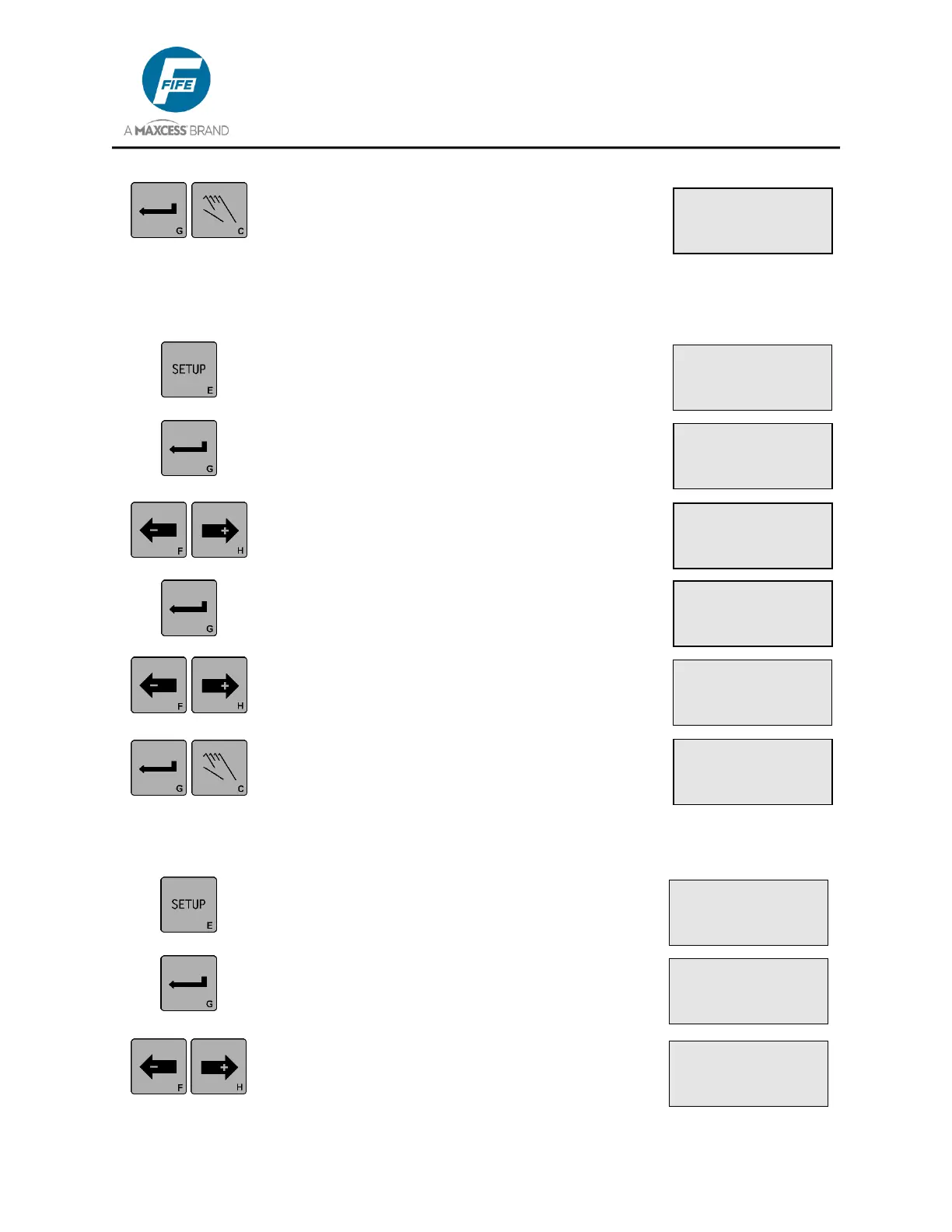

3A
MANUAL
× -ãããããáÜÜÜÜ+
× 3A.1.7.1
SETUP (MAN)
~ƒ POLARITY
-
× 3A.1.7.1
SETUP (MAN)
~ƒ POLARITY
+
× 3A.1.1
SETUP (MAN)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
× 3A.1.7
SETUP (MAN)
~ƒ POLARITY
-
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
3A
MANUAL
× -ãããããáÜÜÜÜ+
× 3A.1.1
SETUP (MAN)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
× 3A.1.8
SETUP (MAN)
MEASUREMENT
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
