DP-20 PLUS Web Guide Controller 6-5
4th Quarter 2021 © 2021 Maxcess International. All rights reserved. Figure Sheet 2-320 A

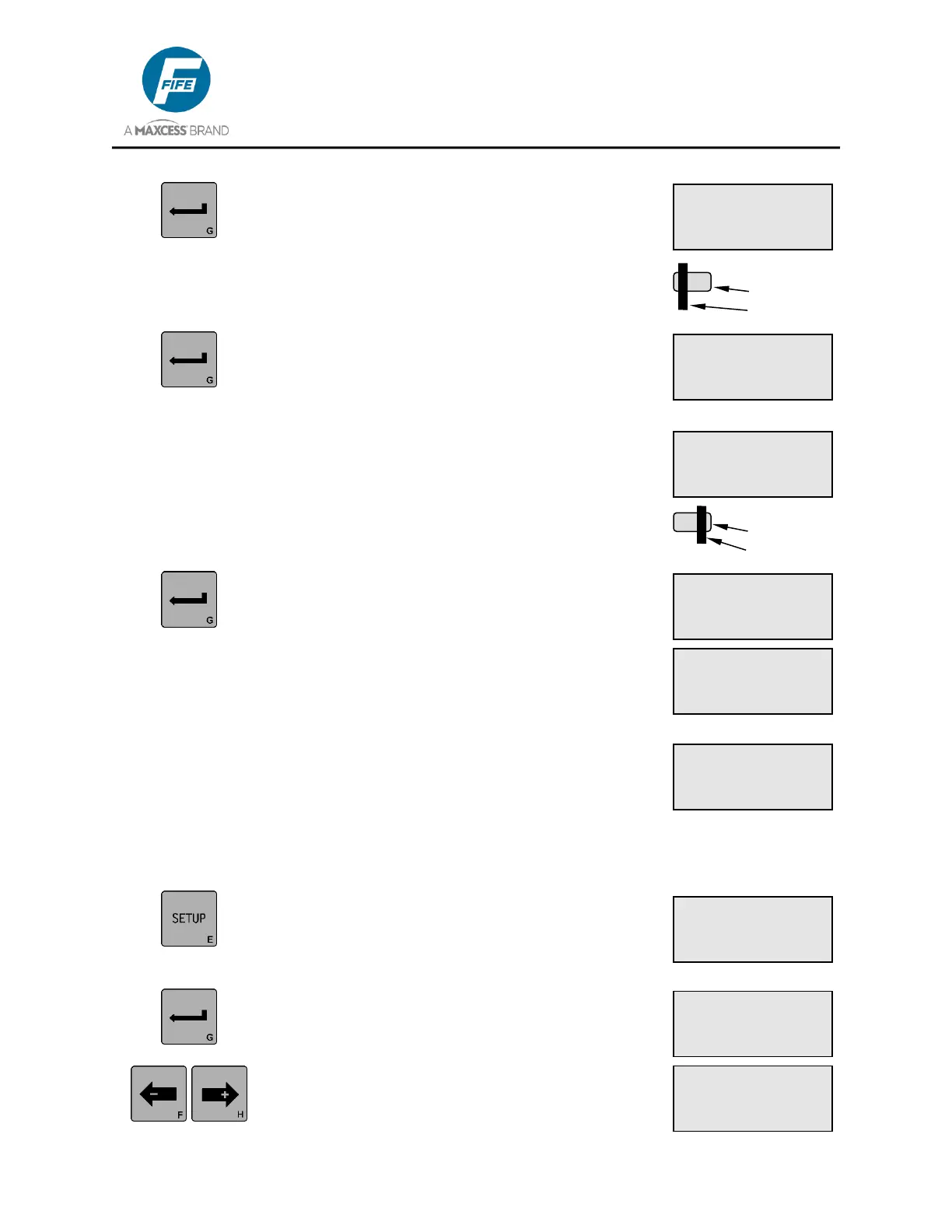

6. Press the ENTER key to begin the calibration.
UNCOVER SENSOR will be displayed on line 2.
With the sensor light spot correctly focused on
the line to be guided, position the sensor such
that the line is located within ½ of the light spot
(see graphic at right). The sensor signal is
displayed on Line 3.
7. Press the ENTER key. WAIT... will be displayed
for a few seconds on line 4 of the LCD Panel.
Maintain the web position during this wait period.
8. Once the delay has ended, COVER SENSOR
will be displayed on line 2. Position the sensor
such that the line to be guided is located within
the opposite ½ of the light spot (see graphic at
right). The sensor signal is displayed on Line 3.
9. Press the ENTER key. If the contrast is sufficient
for guiding, SUCCESSFUL will be displayed for
a few seconds on line 2, then the unit will
automatically exit the menus and return to the
Operator Level.
10. If the contrast is not sufficient for guiding,
FAILED will be displayed on line 2. Press the
MANUAL key to exit the setup menus and return
to the Operator Level. Repeat this procedure, as
necessary.
3X.1.4, Calibration, Line Sensor, Edge of Line Guiding
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Press the ENTER key to enter the BASIC
Menus. The GAIN menu will be displayed.
3. Use the ARROW keys to scroll until
CALIBRATION is displayed on line 3.
ý 3D.1.4.2
UNCOVER SENSOR
-ÜÜÜÜÜÜÜÜÜÜ+ 0%
ý 3D.1.4.3
COVER SENSOR
-ãããããããããá+ 95%
ý 3D.1.4.6
FAILED
-áÜÜÜÜÜÜÜÜÜ+ 3%
ý 3D.1.4.4
SUCCESSFUL
-ãããããããããá+ 95%
ý 3D.1.4.2
UNCOVER SENSOR
-ÜÜÜÜÜÜÜÜÜÜ+ 0%
WAIT...
Ł 3C.1.1
SETUP (MAN)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
Ł 3C.1.4
SETUP (MAN)
CALIBRATION
Ł 3C.1
SETUP (MAN)
SELECT MENU
BASIC
