3X.3.6, Set Loss Of Null Output Range
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Use the ARROW keys to scroll until
ADVANCED is displayed on line 4.
3. Press the ENTER key to enter the Advanced
Menus. The RESTORE SETTINGS menu will
be displayed.
4. Use the ARROW keys to scroll until SET LOSS
OF NULL is displayed on line 3. The current
Loss Of Null value is displayed on line 4.
5. Press the ENTER key to enter the SET LOSS
OF NULL menu. The current Loss Of Null value
will begin flashing.
6. Use the ARROW keys to adjust the Loss Of Null
to the desired setting. If desired, press both
ARROW keys simultaneously to reset the value
to 20%.
7. Press the ENTER key to store the change or
press the MANUAL key to abort the procedure.
The system will exit the setup menus and return
to the Operator Level.
3X.3.7, Digital I/O, Enable/Disable
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Use the ARROW keys to scroll until ADVANCED
is displayed on line 4.
3. Press the ENTER key to enter the Advanced
Menus. The RESTORE SETTINGS menu will be
displayed.

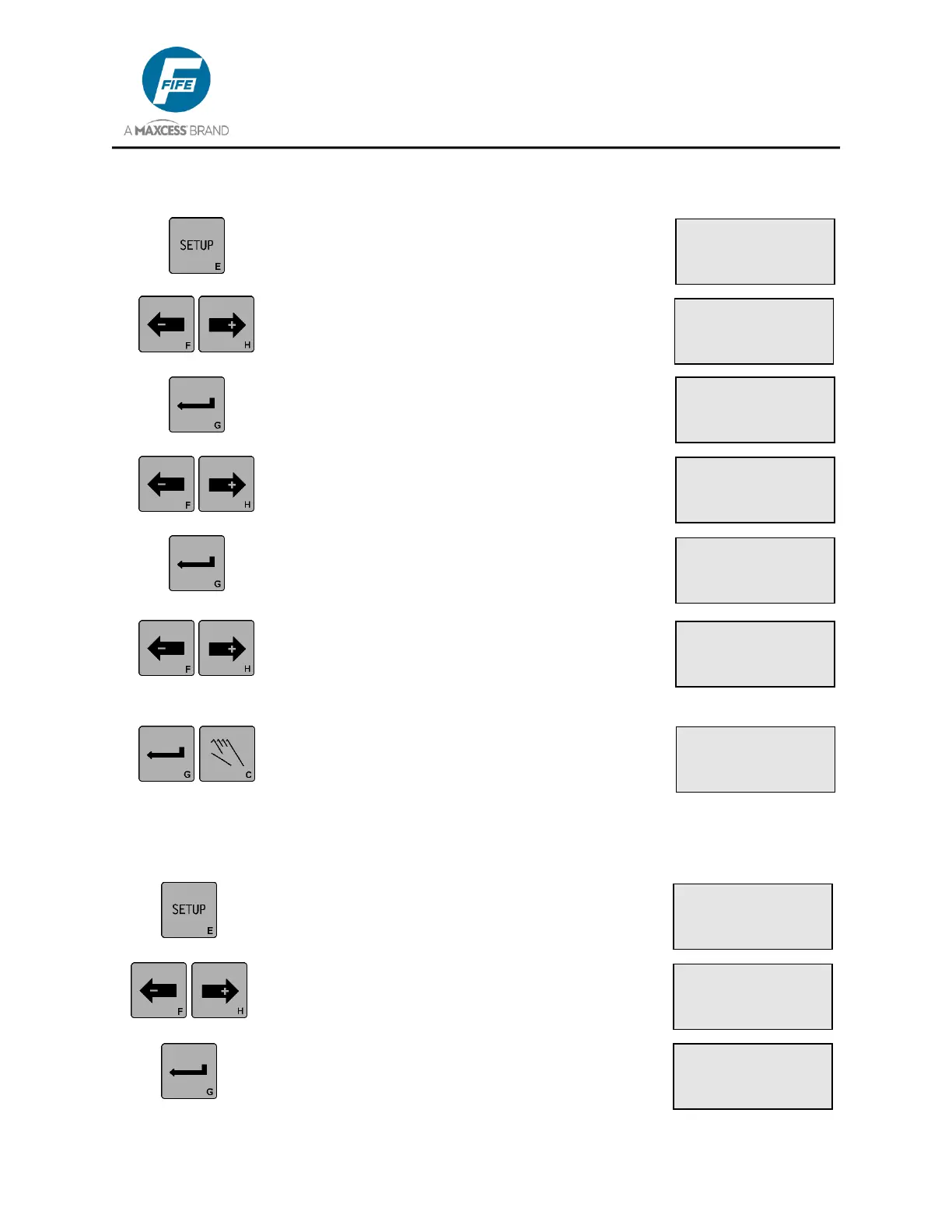

× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.3
SETUP (MAN)
SELECT MENU
ADVANCED
× 3A.3.6
SETUP (MAN)
SET LOSS OF NULL
OUTPUT: 20%
× 3A.3.6.1
SETUP (MAN)
SET LOSS OF NULL
OUTPUT: 20%
× 3A.3.6.1
SETUP (MAN)
SET LOSS OF NULL
OUTPUT: 30%
3A
MANUAL
× -ãããããáÜÜÜÜ+
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.3.1
SETUP (MAN)
RESTORE SETTINGS
× 3A.3.1
SETUP (MAN)
RESTORE SETTINGS
× 3A.3
SETUP (MAN)
SELECT MENU
ADVANCED
