DP-20 PLUS Web Guide Controller 6-36
4th Quarter 2021 © 2021 Maxcess International. All rights reserved. Figure Sheet 2-320 A

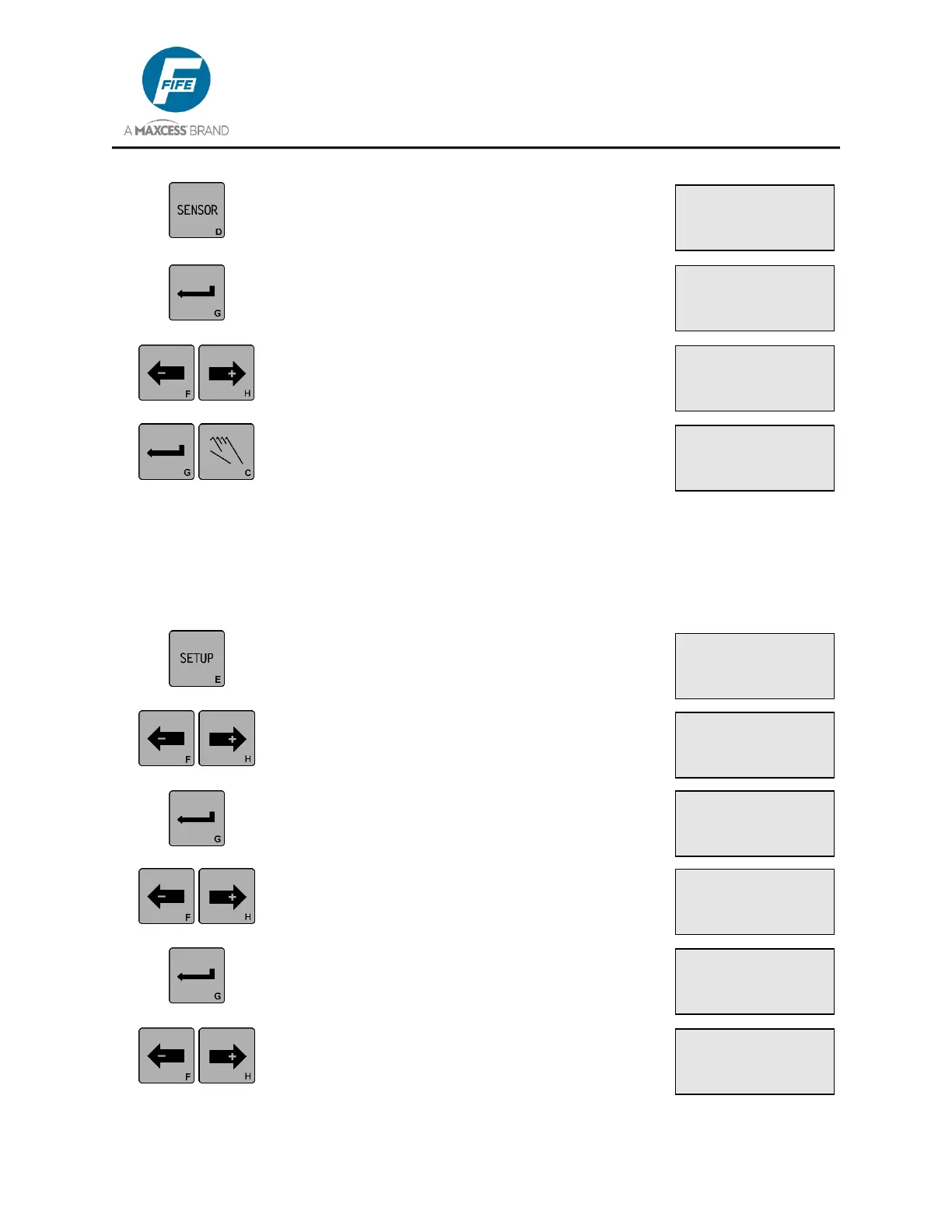

5. If necessary, press the SENSOR key to select
the desired sensor mode.
6. Press the ENTER key to enter the SET ASC
SOURCE menu. The current setting will begin
flashing.
7. Use the ARROW keys to select the desired
setting.
8. Press the ENTER key to store the new ASC
SOURCE, or press the MANUAL key to abort
the change. The system will exit the setup
menus and return to the Operator Level.
3X.5.5, Output Polarity
This procedure is used to select the digital A/B output polarity.
THE DIGITAL OUTPUT SIGNALS CAN CHANGE UPON SAVING
THIS SETTING
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed.
2. Use the ARROW keys to scroll until CUSTOM
is displayed on line 4.
3. Press the ENTER key to enter the Custom
Menus. The LCD CONTRAST menu will be
displayed.
4. Use the ARROW keys to scroll until OUTPUT
POLARITY is displayed on line 3. The current
digital output polarity settings are displayed on
line 4.
5. Press the ENTER key to enter the OUTPUT
POLARITY menu. The current settings will
begin flashing.
6. Use the ARROW keys to select the desired
settings. Use the left ARROW key to change the
‘A’ output polarity. Use the right ARROW key to
change the ‘B’ output polarity.
Ø 3B.5.4.1
SETUP (MAN)
SET ASC SOURCE
× Ø ×Ø
3B
MANUAL
Ø -ãããããáÜÜÜÜ+
Ø 3B.5.4.1
SETUP (MAN)
SET ASC SOURCE
× Ø ×Ø
Ø 3B.5.4
SETUP (MAN)
SET ASC SOURCE
Ø
× 3A.5.5
SETUP (MAN)
OUTPUT POLARITY
A:- B:-
× 3A.5.5.1
SETUP (MAN)
OUTPUT POLARITY
A:- B:-
× 3A.5.5.1
SETUP (MAN)
OUTPUT POLARITY
A:- B:-
× 3A.5
SETUP (MAN)
LCD CONTRAST
ãããããÜÜÜÜÜ 50%
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.5
SETUP (MAN)
SELECT MENU
CUSTOM
