DP-20 PLUS Web Guide Controller 6-37
4th Quarter 2021 © 2021 Maxcess International. All rights reserved. Figure Sheet 2-320 A
7. Press the ENTER key to store the new OUTPUT
POLARITY or press the MANUAL key to abort
the change. The system will exit the setup
menus and return to the Operator Level.
3X.5.6, Set RGPC Speed
This procedure is used to control the shift speed of the RGPC digital inputs.
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed.
2. Use the ARROW keys to scroll until CUSTOM
is displayed on line 4.
3. Press the ENTER key to enter the Custom
Menus. The LCD CONTRAST menu will be
displayed.
4. Use the ARROW keys to scroll until SET RGPC
SPEED is displayed on line 3. The current
digital output polarity settings are displayed on
line 4.
5. Press the ENTER key to enter the SET RGPC
SPEED menu. The current setting on line 4 will
begin flashing.
6. Use the ARROW keys to select the desired
settings. Changing the setting to a higher
number causes a slower RGPC shift. The
displayed value represents the amount of time
to wait between RGPC shifts. This delay value
It is added to a fixed delay of 10ms. The default
setting is 0.07 seconds.
7. Press the ENTER key to store the new RGPC
SHIFT SPEED or press the MANUAL key to
abort the change. The system will exit the setup
menus and return to the Operator Level.

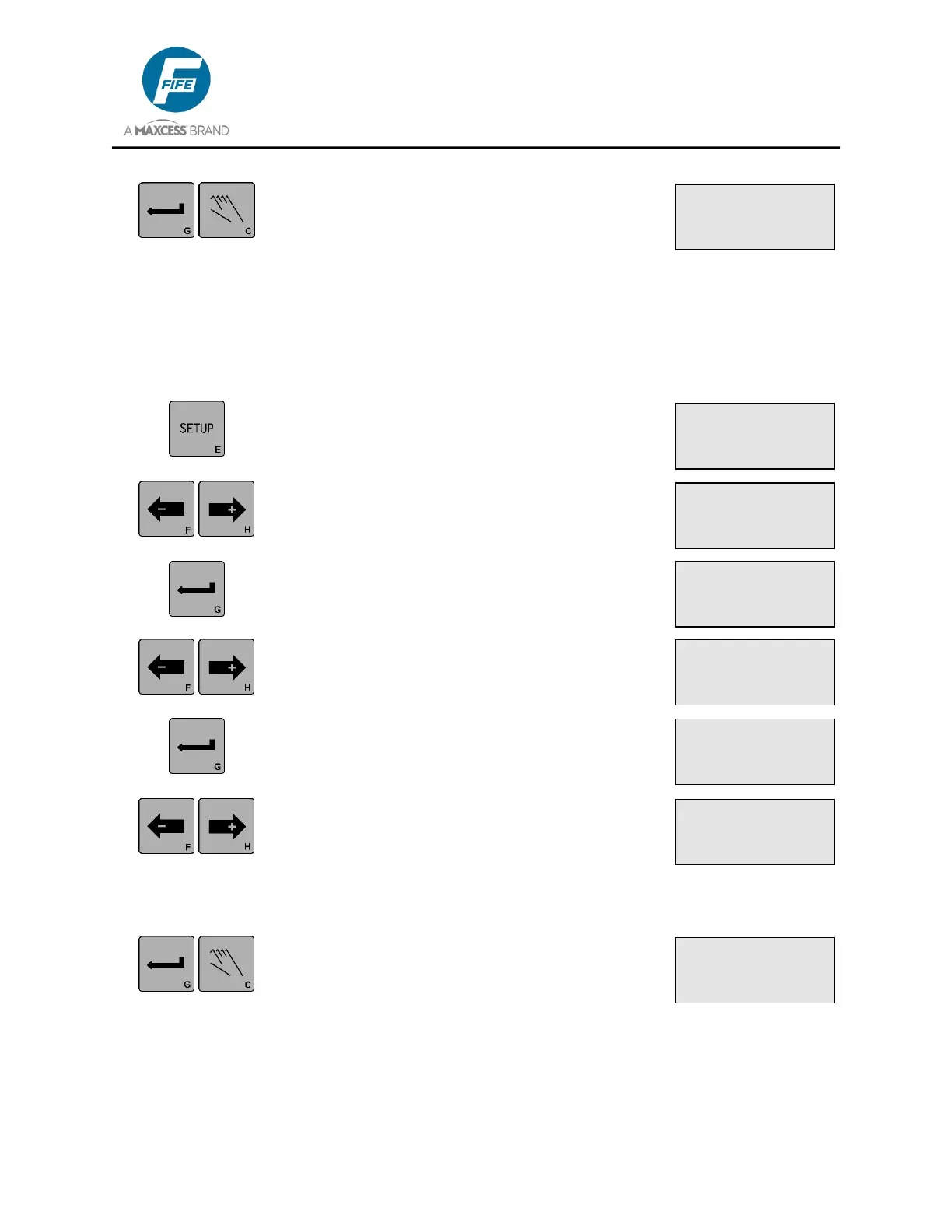

3A
MANUAL
× -ãããããáÜÜÜÜ+
× 3A.5.6
SETUP (MAN)
SET RGPC SPEED
SECS/ADJ: 0.07S
× 3A.5.6.1
SETUP (MAN)
SET RGPC SPEED
SECS/ADJ: 0.07S
3A
MANUAL
× -ãããããáÜÜÜÜ+
× 3A.5.6.1
SETUP (MAN)
SET RGPC SPEED
SECS/ADJ: 0.10S
× 3A.5
SETUP (MAN)
LCD CONTRAST
ãããããÜÜÜÜÜ 50%
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.5
SETUP (MAN)
SELECT MENU
CUSTOM
