DP-20 PLUS Web Guide Controller 6-4
4th Quarter 2021 © 2021 Maxcess International. All rights reserved. Figure Sheet 2-320 A

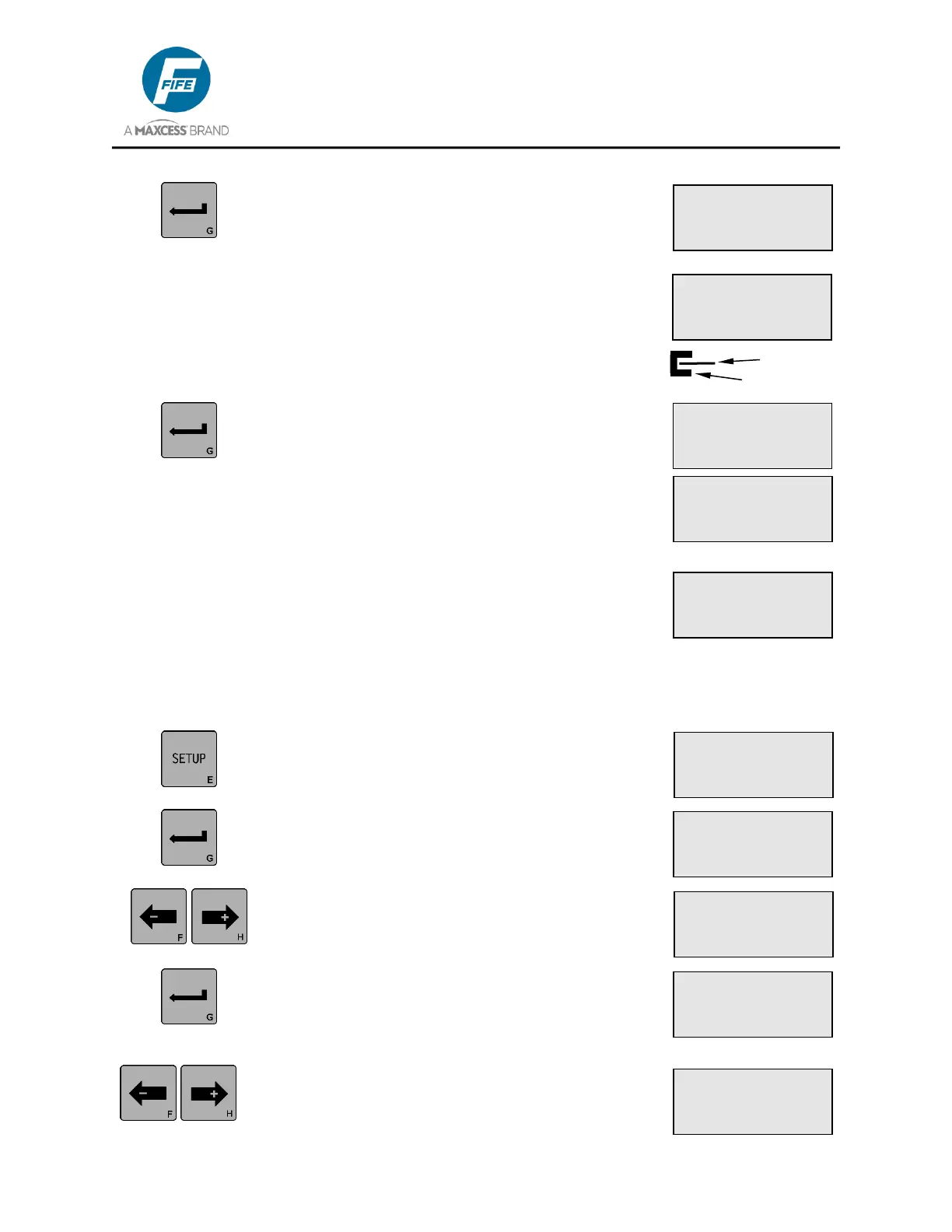

7. Press the ENTER key. WAIT... will be displayed
for a few seconds on line 4 of the LCD Panel.
Maintain the web position during this wait period.
8. Once the delay has ended, COVER SENSOR
will be displayed on line 2. Fully cover the sensor
field of view with the web material to be guided
(see graphic at right). The sensor signal is
displayed on Line 3.
9. Press the ENTER key. If the contrast is sufficient
for guiding, SUCCESSFUL will be displayed for
a few seconds on line 2, then the unit will
automatically exit the menus and return to the
Operator Level.
10. If the contrast is not sufficient for guiding,
FAILED will be displayed on line 2. Press the
MANUAL key to exit the setup menus and return
to the Operator Level. Repeat this procedure,
as necessary.
3X.1.4, Calibration, Line Sensor, Center of Line Guiding
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Press the ENTER key to enter the BASIC
Menus. The GAIN menu will be displayed.
3. Use the ARROW keys to scroll until
CALIBRATION is displayed on line 3.
4. Press the ENTER key to enter the
CALIBRATION menu. SELECT SENSOR will be
displayed on line 3.
5. If necessary, use the ARROW keys to select the
Center of Line sensor input. ý will be displayed
on line 1.
× 3A.1.4.3
COVER SENSOR
-ãããããããããá+ 95%
× 3A.1.4.6
FAILED
-áÜÜÜÜÜÜÜÜÜ+ 3%
× 3A.1.4.4
SUCCESSFUL
-ãããããããããá+ 95%
× 3A.1.4.2
UNCOVER SENSOR
-ÜÜÜÜÜÜÜÜÜÜ+ 0%
WAIT...
ý 3D.1.1
SETUP (MAN)
GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
ý 3D.1.4
SETUP (MAN)
CALIBRATION
ý 3D.1
SETUP (MAN)
SELECT MENU
BASIC
ý 3D.1.4.1
SETUP (MAN)
SELECT SENSOR
(X5)
ý 3D.1.4.1
SETUP (MAN)
SELECT SENSOR
(X5)
To Next Page
