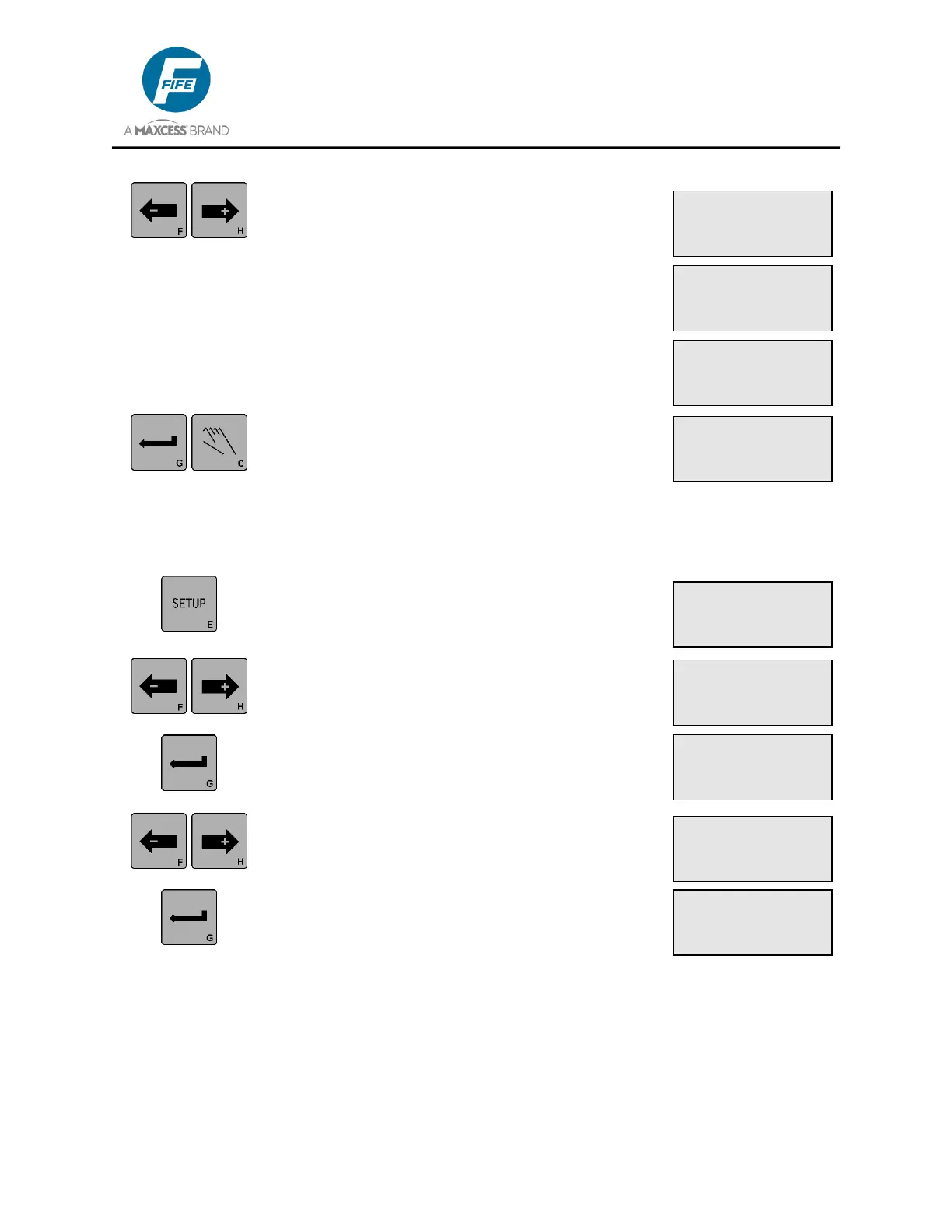

6. Use the ARROW keys to scroll to the desired
selection as indicated on line 4 of the LCD Panel.
YES, indicates that the corresponding operation
mode is enabled. NO indicates it is disabled.
7. Press the ENTER key to store the change or
press the MANUAL key to abort the change. The
system will exit the setup menus and return to
the Operator Level.
3X.2.3, Set Sensor Mode Enable, Edge Sensors
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Use the ARROW keys to scroll until SPECIAL is
displayed on line 4.
3. Press the ENTER key to enter the Special
Menus. The DEADBAND menu will be
displayed.
4. Use the ARROW keys to scroll until SENSOR
ENABLE is displayed on line 3. The current
selection is displayed on Line 4.
5. Press the ENTER key to enter the Sensor
Enable menu. The current selection will begin
flashing on line 4. The last digit of the menu
number will vary according to the current
selection.
× 3A.2.2.4
SETUP (MAN)
|AUTO|SC |MAN |
|YES |YES |YES |
× 3A.2.2.3
SETUP (MAN)
|AUTO|SC |MAN |
|YES |NO |YES |
3A
MANUAL
× -ãããããáÜÜÜÜ+
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.2
SETUP (MAN)
SELECT MENU
SPECIAL
× 3A.2.3
SETUP (MAN)
SENSOR ENABLE
| × | Ø | ×Ø |
× 3A.2.3.1
SETUP (MAN)
| × | Ø | ×Ø |
|YES |YES |YES |
× 3A.2.1
SETUP (MAN)
DEADBAND
-ÜÜÜÜÜÜÜ+ 0.0%
× 3A.2.2.2
SETUP (MAN)
|AUTO|SC |MAN |
|NO |YES |YES |
