DP-20 PLUS Web Guide Controller 6-26
4th Quarter 2021 © 2021 Maxcess International. All rights reserved. Figure Sheet 2-320 A
6. Use the ARROW keys to adjust the delay time to
the desired setting (in seconds). If an ARROW
key is held down, the speed of the delay change
increases. If desired, press both ARROW keys
simultaneously to reset the delay to 0.00s.
7. Press the ENTER key to store the change or
press the MANUAL key to abort the change. The
system will exit the setup menus and return to
the Operator Level.
3X.3.5, Set Output B Delay
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Use the ARROW keys to scroll until
ADVANCED is displayed on line 4.
3. Press the ENTER key to enter the Advanced
Menus. The RESTORE SETTINGS menu will
be displayed.
4. Use the ARROW keys to scroll until SET
OUTPUT DELAY, OUTPUT B is displayed on
line 3. The current delay time is displayed on
Line 4.
5. Press the ENTER key to enter the SET
OUTPUT DELAY menu. The current delay time
will begin flashing.
6. Use the ARROW keys to adjust the delay time
to the desired setting (in seconds). If an
ARROW key is held down, the speed of the
delay change increases. If desired, press both
ARROW keys simultaneously to reset the delay
to 0.00s.
7. Press the ENTER key to store the change or
press the MANUAL key to abort the change.
The system will exit the setup menus and return
to the Operator Level.

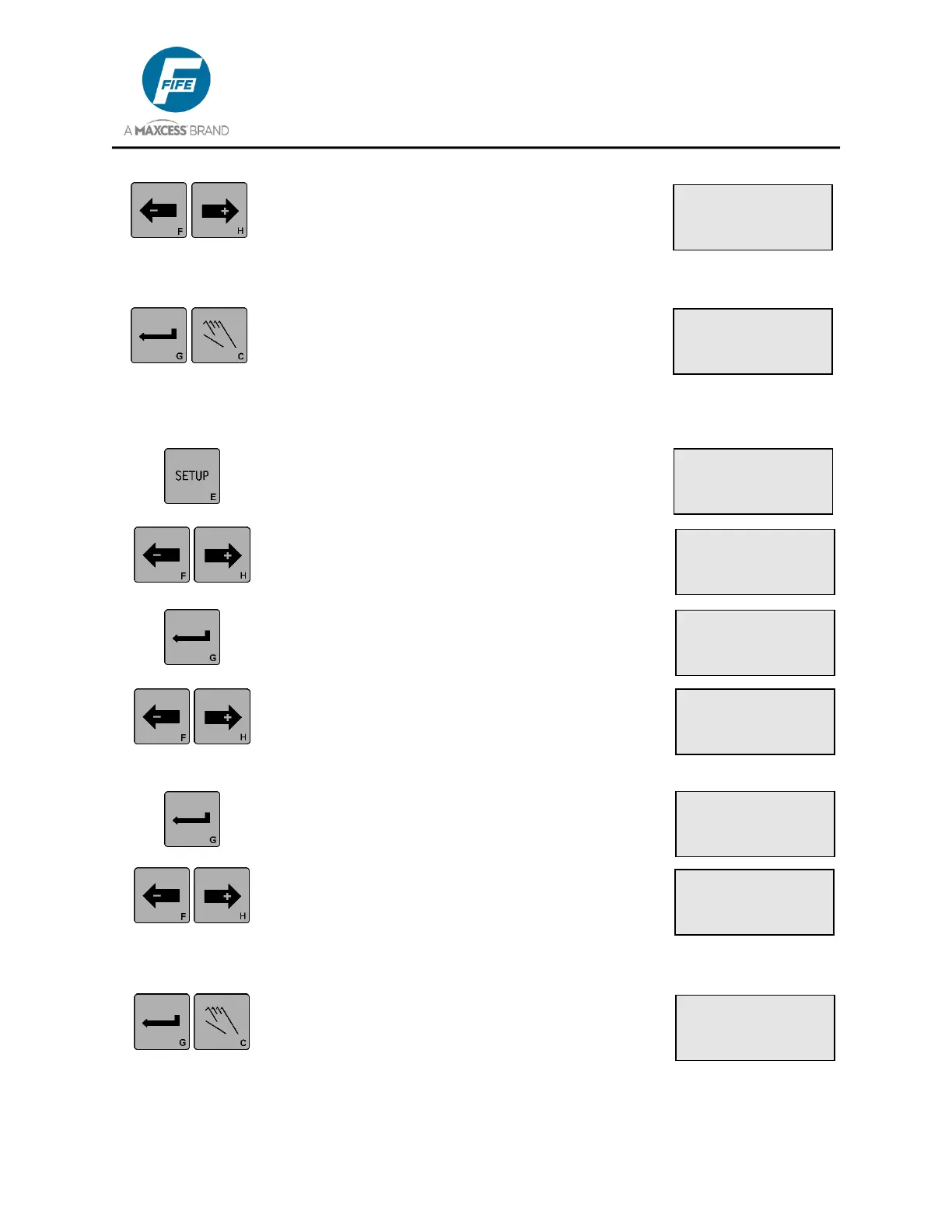

× 3A.3.4.1
SETUP (MAN)
SET OUTPUT DELAY
OUTPUT A: 5.10s
× 3C.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.3.5
SETUP (MAN)
SET OUTPUT DELAY
OUTPUT B: 0.00s
× 3A.3.5.1
SETUP (MAN)
SET OUTPUT DELAY
OUTPUT B: 0.00s
× 3A.3.5.1
SETUP (MAN)
SET OUTPUT DELAY
OUTPUT B: 5.00s
× 3A.3.1
SETUP (MAN)
RESTORE SETTINGS
× 3A.3
SETUP (MAN)
SELECT MENU
ADVANCED
