DP-20 PLUS Web Guide Controller 4-4

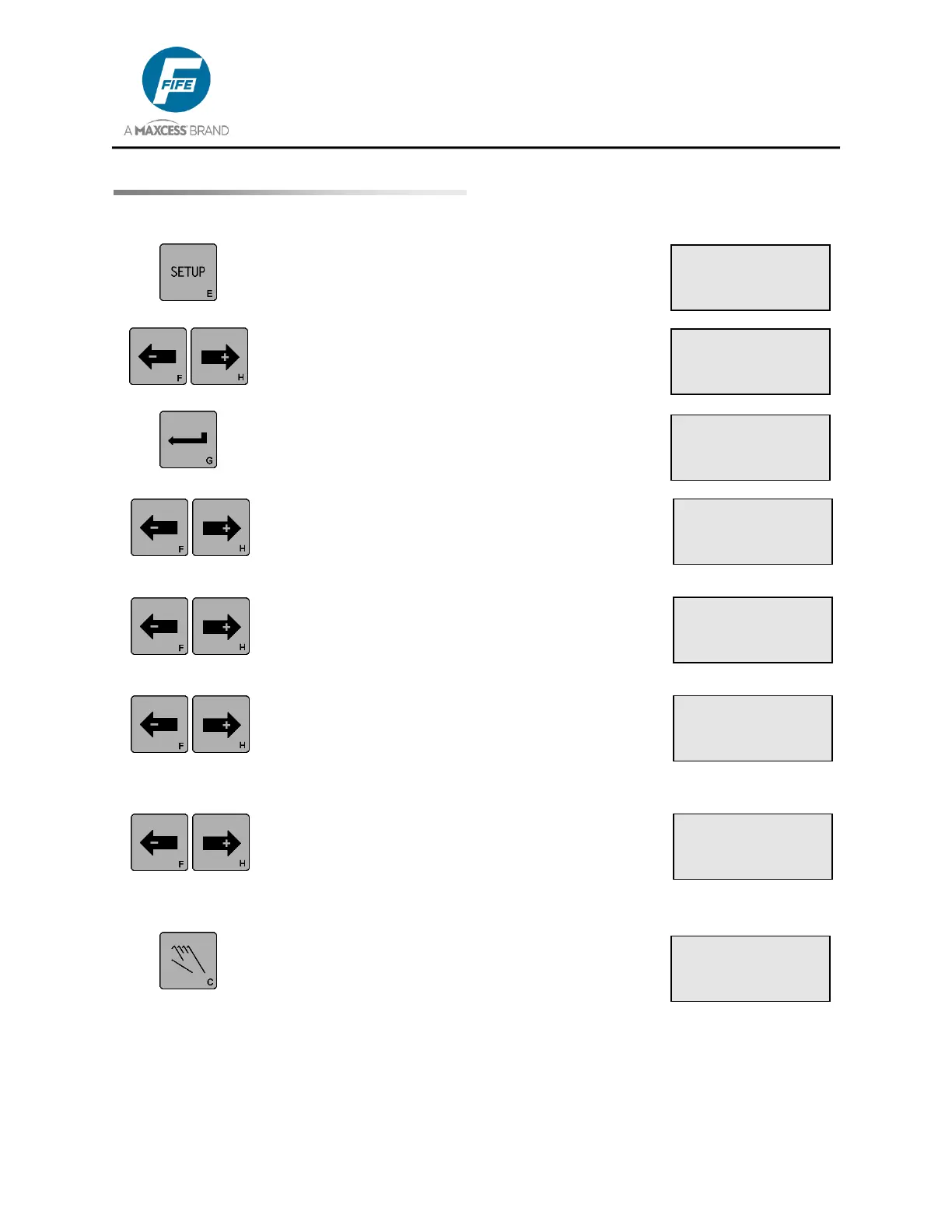

4th Quarter 2021 © 2021 Maxcess International. All rights reserved. Figure Sheet 2-320 A
1X.4, About
1. Press the SETUP key to enter the Setup Menus.
The AUTO GAIN menu will be displayed on the
LCD Panel.
2. Use the ARROW keys to scroll until ABOUT is
displayed on line 3.
3. Press the ENTER key to view the About menus.
The serial number of the DP-20 PLUS is
displayed on Line 4.
4. Use the ARROW keys to scroll to the desired
About menu. Next in the list is the FW NUMBER.
The version number of the DP-20 PLUS
firmware is displayed on Line 4.
5. Use the ARROW keys to scroll to the desired
About menu. Next in the list is the SW NUMBER.
The version number of the DP-20 PLUS
configuration matrix is displayed on Line 4 or
DEFAULT if no special programming is present.
6. Use the ARROW keys to scroll to the desired
About menu. Next in the list is the SM NUMBER.
The version number of the DP-20 PLUS state
machine is displayed on Line 4. This will contain
NONE unless special programming is present.
7. If desired, use the ARROW keys to scroll until
EXIT MENUS is displayed on line 3. Pressing
the ENTER key while this screen is displayed
will exit the About Menus and return to the
Operator Level.
8. Otherwise, press the MANUAL key to exit the
About Menus and return to the Operator Level.
×Ø 1C.1
SETUP (AUTO)
~ƒ GAIN
ãÜÜÜÜÜÜÜÜÜ 10.0%
×Ø 1C.4
SETUP (AUTO)
ABOUT
×Ø 1C.4.2
SETUP (AUTO)
FW NUMBER
Ver 2.00
×Ø 1C.4.1
SETUP (AUTO)
SERIAL NUMBER
SN:01000
×Ø 1C.4.3
SETUP (AUTO)
SW NUMBER
100123-011
×Ø 1C.4.4
SETUP (AUTO)
SM NUMBER
NONE
×Ø 1C.4.5
SETUP (AUTO)
EXIT MENUS
1C
AUTOMATIC
×Ø -ãããããÜÜÜÜÜ+
