DP-20 PLUS Web Guide Controller 6-34
4th Quarter 2021 © 2021 Maxcess International. All rights reserved. Figure Sheet 2-320 A

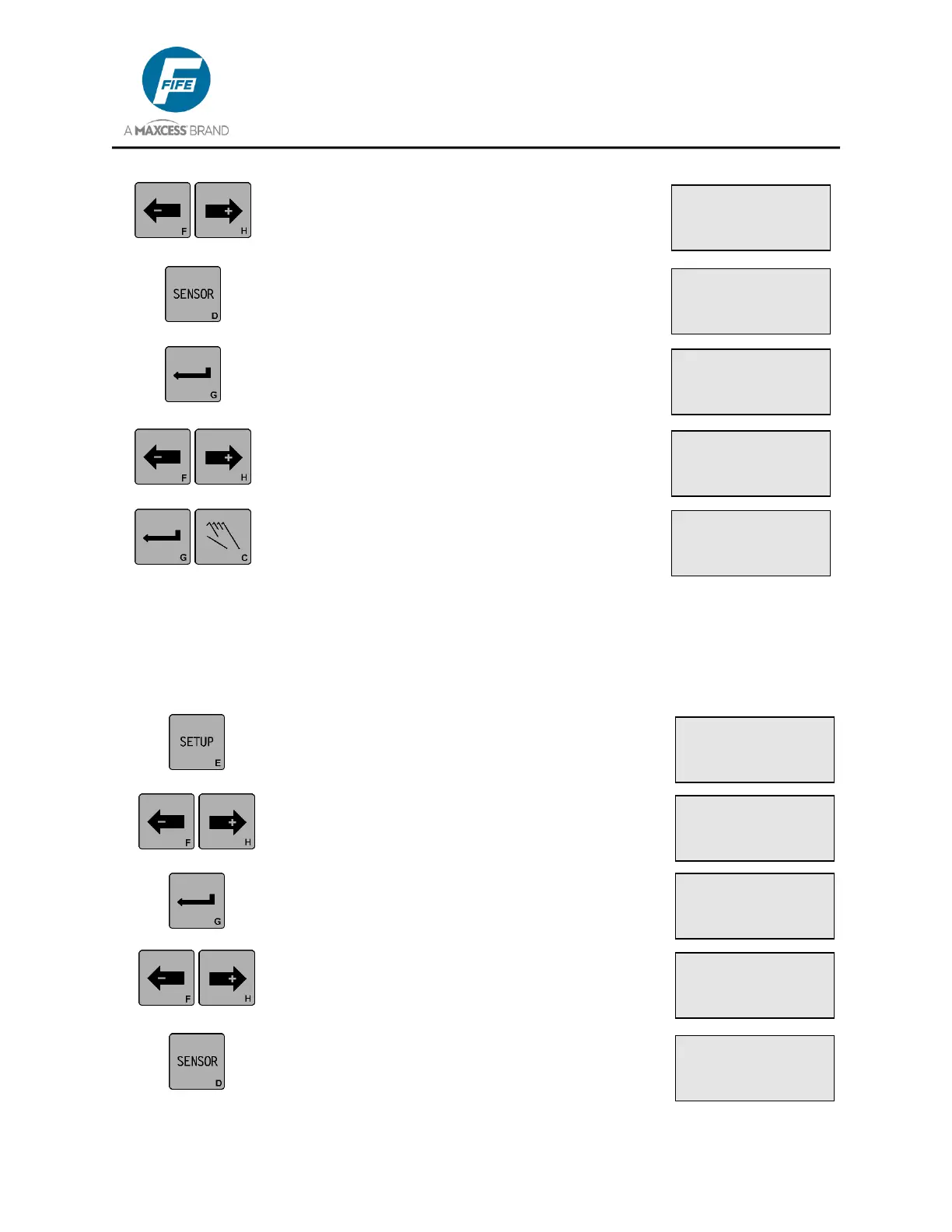

4. Use the ARROW keys to scroll until ASC
CONTROL is displayed on line 3. The current
setting is displayed on line 4.
5. If necessary, press the SENSOR key to select
the desired sensor mode.
6. Press the ENTER key to enter the ASC
CONTROL menu. The contents of line 4 will
begin flashing.
7. Use the ARROW keys to select OFF or ON.
8. Press the ENTER key to store the new setting
or press the MANUAL key to abort the change.
The system will exit the setup menus and return
to the Operator Level.
3X.5.3, Set ASC Limits
This procedure is used to set the ASC Limits. These limits are configurable
for each sensor mode. Use the “ASC CONTROL“ menu to enable the ASC
function.
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed.
2. Use the ARROW keys to scroll until CUSTOM
is displayed on line 4.
3. Press the ENTER key to enter the Custom
Menus. The LCD CONTRAST menu will be
displayed.
4. Use the ARROW keys to scroll until SET ASC
LIMITS is displayed on line 3. The current ASC
Limit values are displayed on line 4.
5. If necessary, press the SENSOR key to select
the desired sensor mode.
Ø 3B.5.2.1
SETUP (MAN)
ASC CONTROL
OFF
Ø 3B.5.2.1
SETUP (MAN)
ASC CONTROL
ON
× 3A.5.3
SETUP (MAN)
SET ASC LIMITS
-90.0% +90.0%
3B
MANUAL
Ø -ãããããáÜÜÜÜ+
× 3A.5
SETUP (MAN)
LCD CONTRAST
ãããããÜÜÜÜÜ 50%
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.5
SETUP (MAN)
SELECT MENU
CUSTOM
Ø 3B.5.3
SETUP (MAN)
SET ASC LIMITS
-90.0% +90.0%
Ø 3B.5.2
SETUP (MAN)
ASC CONTROL
OFF
× 3A.5.2
SETUP (MAN)
ASC CONTROL
OFF
