About Menu
1. Press the SETUP key to enter the Setup
Menus. The SELECT MENU screen will display
BASIC on line 4.
2. Use the ARROW keys to scroll until ABOUT is
displayed on line 3.
3. Press the ENTER key to view the About menus.
The serial number of the DP-20 PLUS is
displayed on Line 4.
4. Use the ARROW keys to scroll to the desired
About menu. Next in the list is the FW
NUMBER. The version number of the DP-20
PLUS firmware is displayed on Line 4.
5. Use the ARROW keys to scroll to the desired
About menu. Next in the list is the SW
NUMBER. The version number of the DP-20
PLUS configuration matrix is displayed on Line
4 or DEFAULT if no special programming is
present.
6. Use the ARROW keys to scroll to the desired
About menu. Next in the list is the SM
NUMBER. The version number of the DP-20
PLUS state machine is displayed on Line 4.
This will contain NONE unless special
programming is present.
7. If desired, use the ARROW keys to scroll until
EXIT MENUS is displayed on line 3. Pressing
the ENTER key while this screen is displayed
will exit the About Menus and return to the
Operator Level.
8. Otherwise, press the MANUAL key to exit the
About Menus and return to the Operator Level.

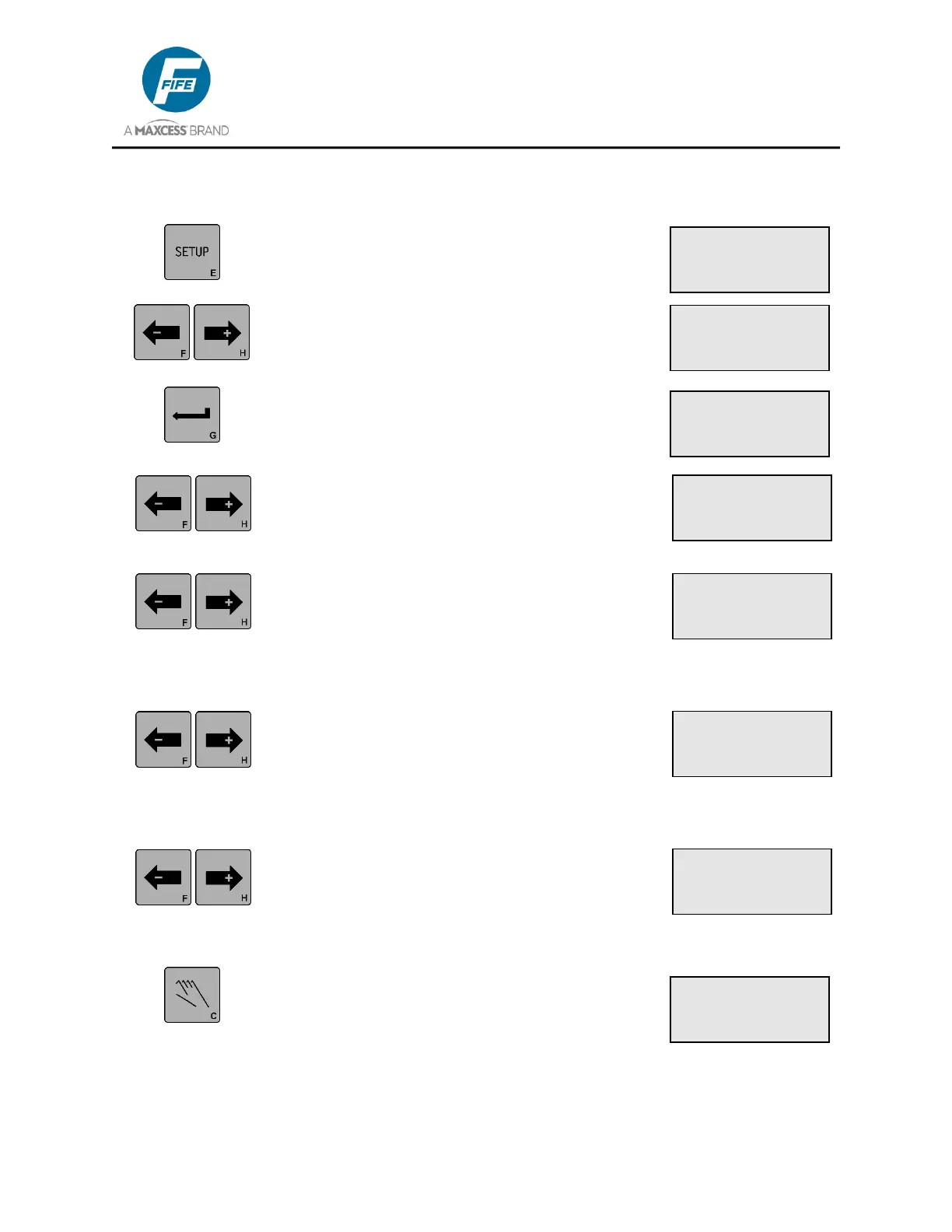

× 3A.6
SETUP (MAN)
ABOUT
× 3A.6.2
SETUP (MAN)
FW NUMBER
DP-20 PLUS Ver
2.00
× 3A.6.1
SETUP (MAN)
SERIAL NUMBER
SN:01000
× 3A.6.3
SETUP (MAN)
SW NUMBER
DEFAULT
× 3A.6.4
SETUP (MAN)
SM NUMBER
NONE
× 3A.6.5
SETUP (MAN)
EXIT MENUS
3C
MANUAL
×Ø -ãããããÜÜÜÜÜ+
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
