5. Press the ENTER key to enter the SET JOG
SPEED menu. The current Jog Speed setting
begins flashing on line 4.
6. Use the ARROW keys to adjust the Jog Speed
to the desired setting as indicated on line 4.
7. Press the ENTER key to store the change or
press the MANUAL key to abort the procedure.
The system will exit the setup menus and return
to the Operator Level.
3X.2.7, Set Sensor Type
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Use the ARROW keys to scroll until SPECIAL is
displayed on line 4.
3. Press the ENTER key to enter the Special
Menus. The DEADBAND menu will be
displayed.
4. Use the ARROW keys to scroll until SET
SENSOR TYPE is displayed on line 3. The
current sensor type is displayed on Line 4.
5. Press the ENTER key to enter the SET
SENSOR TYPE menu. The current sensor type
begins flashing on line 4.
6. Use the ARROW keys to scroll to the desired
sensor type, EDGE SENSOR or LINE SENSOR
as indicated on line 4.
7. Press the ENTER key to store the change or
press the MANUAL key to abort the procedure.
The system will exit the setup menus and return
to the Operator Level.

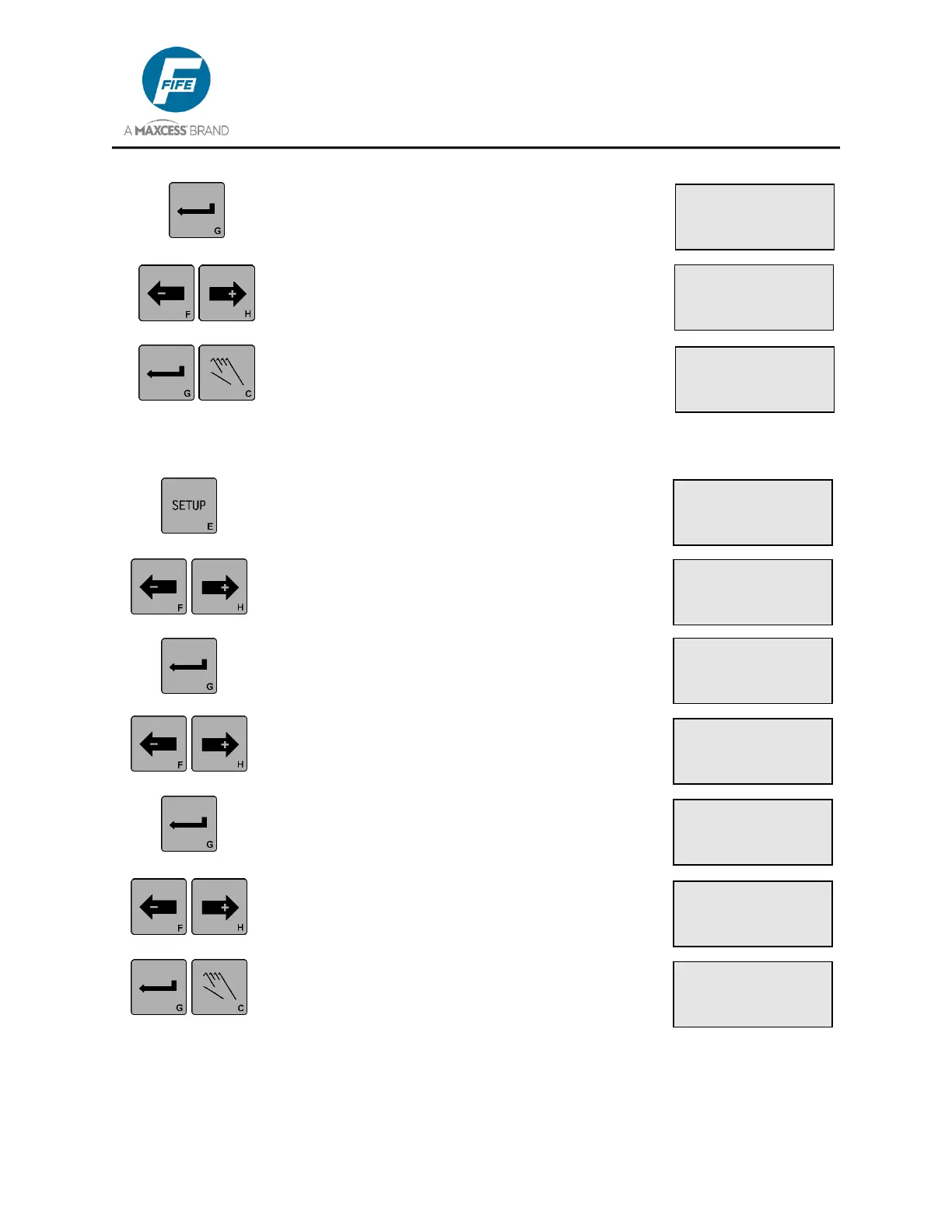

× 3A.2.6.1
SETUP (MAN)
SET JOG SPEED
ããàÜÜÜÜÜÜÜ 25%
× 3A.2.6.1
SETUP (MAN)
SET JOG SPEED
ãããããÜÜÜÜÜ 50%
3A
MANUAL
× -ãããããáÜÜÜÜ+
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.2
SETUP (MAN)
SELECT MENU
SPECIAL
× 3A.2.7
SETUP (MAN)
SET SENSOR TYPE
EDGE SENSOR ×Ø
× 3A.2.7.1
SETUP (MAN)
SET SENSOR TYPE
EDGE SENSOR ×Ø
ý 3D.2.7.2
SETUP (MAN)
SET SENSOR TYPE
LINE SENSOR ýŁ
3D
MANUAL
ý -ãããããáÜÜÜÜ+
× 3A.2.1
SETUP (MAN)
DEADBAND
-ÜÜÜÜÜÜÜ+ 0.0%
