DP-20 PLUS Web Guide Controller 2-1
4th Quarter 2021 © 2021 Maxcess International. All rights reserved. Figure Sheet 2-320 A
2 OPERATOR INTERFACE

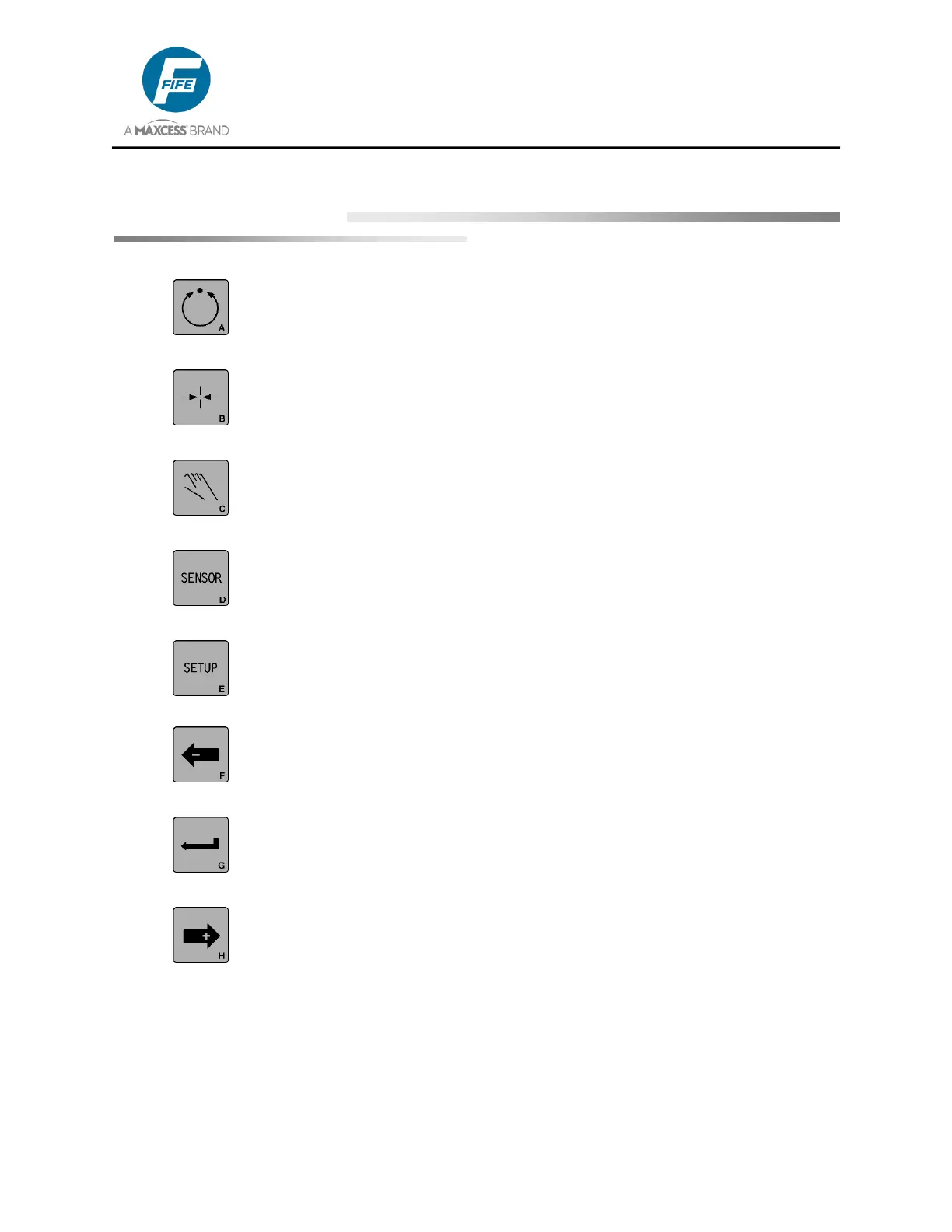

Function of the Operator Level Keys
AUTOMATIC - This key initiates the Automatic mode. Correction is
applied to the web by moving the guide in response to the output of the
sensor(s) selected.
SERVO-CENTER- This key initiates the Servo-Center mode. The guide
is centered in its travel in response to the output of the Servo-Center
transducer (if installed).
MANUAL - This key initiates the Manual mode. No correction is applied
to the guide. This key is also used to abort changes made in the Setup
Menus and to exit the Setup Menus.
SENSOR - This key is used to select the sensor(s) for monitoring the web
position when the system is in Automatic mode. Sensor selection is
allowed in Manual and Servo-Center modes only.
SETUP - This key is used to enter the Setup Menus to configure and
adjust the guiding system.
- ARROW - This key is used to jog the guide. The direction of guide
movement is configurable. This key is also used during setups to scroll
through the setup menus and to adjust setup parameters.
ENTER - This key is not used at the Operator Level. It is used while in
the Setup Menus to enter the selected menu and to store modified
parameters.
+ ARROW - This key is used to jog the guide. The direction of guide
movement is configurable. This key is also used during setup to scroll
through the setup menus and to adjust setup parameters.
