DP-20 PLUS Web Guide Controller 5-2
4th Quarter 2021 © 2021 Maxcess International. All rights reserved. Figure Sheet 2-320 A
5. If desired, press both of the ARROW keys
simultaneously to reset the Servo-Center Guide
Point to 0.0% as indicated on line 4.
6. Press the ENTER key to store the change or
press the MANUAL key to abort the change. The
system will exit the setup menus and return to
the Operator Level. The Servo-Center Guide
Point value will be displayed on Line 4 if the
value is not 0.

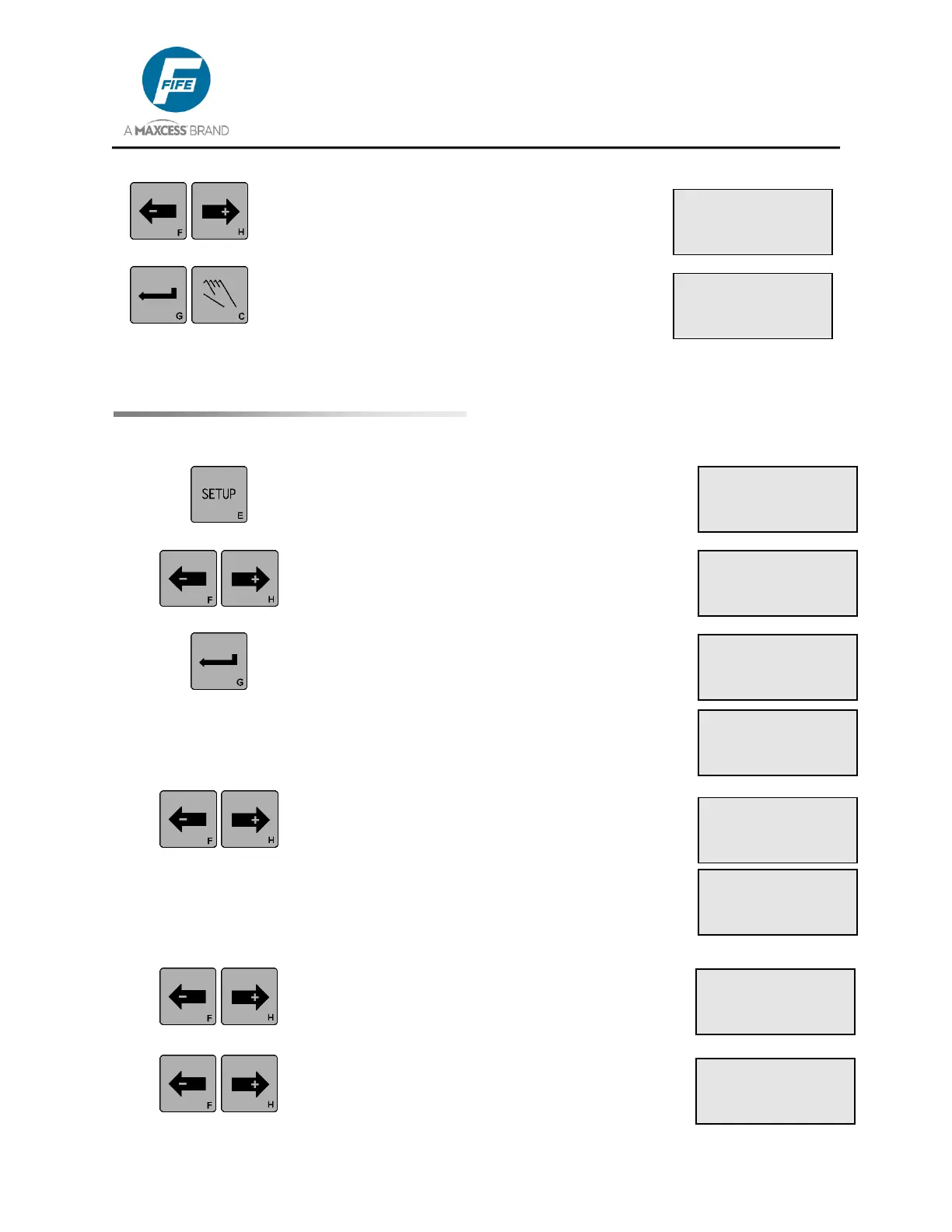

1. Press the SETUP key to enter the Setup
Menus. The SC GAIN menu will be
displayed on the LCD Panel.
2. Use the ARROW keys to scroll until
MEASUREMENT is displayed on line 3.
3. Press the ENTER key to view the
Measurement menus. The level of the
guiding signal from the Left Edge Sensor
(Line Center if a line sensor is being used)
is displayed on Line 4. This signal has been
scaled by values determined during the
Sensor Calibration procedure (see section
6).
4. Use the ARROW keys to scroll to the
desired Measurement menu. Next in the list
is the Right Edge Sensor (Line Edge if a line
sensor is being used). The guiding signal is
displayed on Line 4. This signal has been
scaled by values determined during the
Sensor Calibration procedure (see section
6).
5. Use the ARROW keys to scroll to the
desired Measurement menu. Next in the list
is the Servo-Center Sensor. The sensor
signal is displayed on Line 4.
6. Use the ARROW keys to scroll to the
desired Measurement menu. Next in the list
is the MOTOR TYPE. The motor type is
displayed on Line 4.
ר 2C
SERVO-CENTER
~ƒ -ããããÜÜÜÜÜÜ+
~ƒ GP: -21.0%
ר 2C.2.1
SETUP (SC)
~ƒ GUIDE POINT
-ÜÜÜåÜÜÜ+ 0.0%
ר 2C.1
SETUP (SC)
~ƒ GAIN
ãÜÜÜÜÜÜÜÜÜ 5.0%
ר 2C.3
SETUP (SC)
MEASUREMENT
ר 2C.3.1
MEASUREMENT
× SENSOR (X4)
-ããããÜÜÜÜ+ 50%
ר 2C.3.2
MEASUREMENT
Ø SENSOR (X5)
-ããããÜÜÜÜ+ 50%
ר 2C.3.3
MEASUREMENT
~ƒ SENSOR (X2)
-ããããÜÜÜÜ+ 50%
ý 2C.3.1
MEASUREMENT
ý SENSOR (X5)
-ããããÜÜÜÜ+ 50%
Ł 2E.3.2
MEASUREMENT
Ł SENSOR (X5)
-ããããÜÜÜÜ+ 50%
ר 2C.3.4
MEASUREMENT
MOTOR TYPE
0.6A MOTOR 8.66K
