Maxcess FIFE DP-20 PLUS User Manual

DP-20 PLUS Web Guide Controller 5-3
4th Quarter 2021 © 2021 Maxcess International. All rights reserved. Figure Sheet 2-320 A

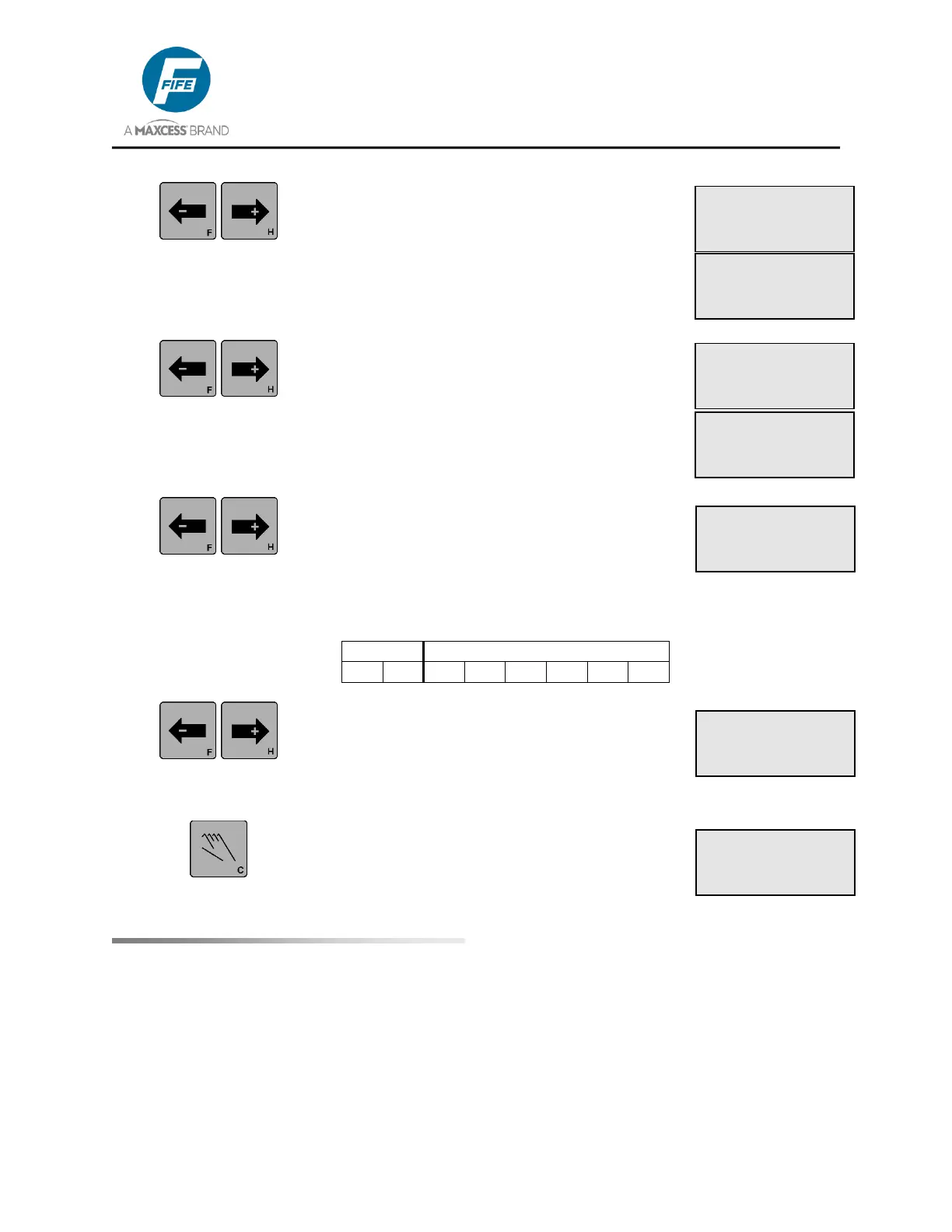

7. Use the ARROW keys to scroll to the
desired Measurement menu. Next in the list
is the TACHOMETER. The motor
tachometer signal is displayed on Line 4.
Press the ENTER key to switch between
percentage and RPM display modes. The
percentage value shown is relative to the
maximum speed of the attached motor.
8. Use the ARROW keys to scroll to the
desired Measurement menu. Next in the list
is the MOTOR CURRENT. The motor
current value is displayed on Line 4. Press
the ENTER key to switch between
percentage and ampere display modes.
The percentage value shown is relative to
the maximum current of the attached motor.
9. Use the ARROW keys to scroll to the
desired Measurement menu. Next in the list
is the DIGITAL I/O. The state of the digital
outputs and inputs are displayed on Line 4.
The order in which the inputs are displayed
is shown in the following table.
OUT
IN
A
B
5
4
3
2
1
0
10. If desired, use the ARROW keys to scroll
until EXIT MENUS is displayed on line 3.
Pressing the ENTER key while this screen
is displayed will exit the Measurement
Menus and return to the Operator Level.
11. Otherwise, press the MANUAL key to exit
the Measurement Menus and return to the
Operator Level.
×Ø 2C
SERVO-CENTER
~ƒ -ãããããÜÜÜÜÜ+
×Ø 2C.3.7
MEASUREMENT
DIGITAL I/O (X3)
10000000
×Ø 2C.3.8
MEASUREMENT
EXIT MENUS
×Ø 2C.3.5
MEASUREMENT
TACHOMETER
-ãããããããá+ +89%
×Ø 2C.3.6
MEASUREMENT
MOTOR CURRENT
-ãããÜÜÜ+ +50%
×Ø 2C.3.5
MEASUREMENT
TACHOMETER
-ãããããããá+ 1190R
×Ø 2C.3.6
MEASUREMENT
MOTOR CURRENT
-ãããÜÜÜ+ +0.15A
