Maxcess FIFE DP-20 PLUS User Manual

DP-20 PLUS Web Guide Controller 6-28
4th Quarter 2021 © 2021 Maxcess International. All rights reserved. Figure Sheet 2-320 A

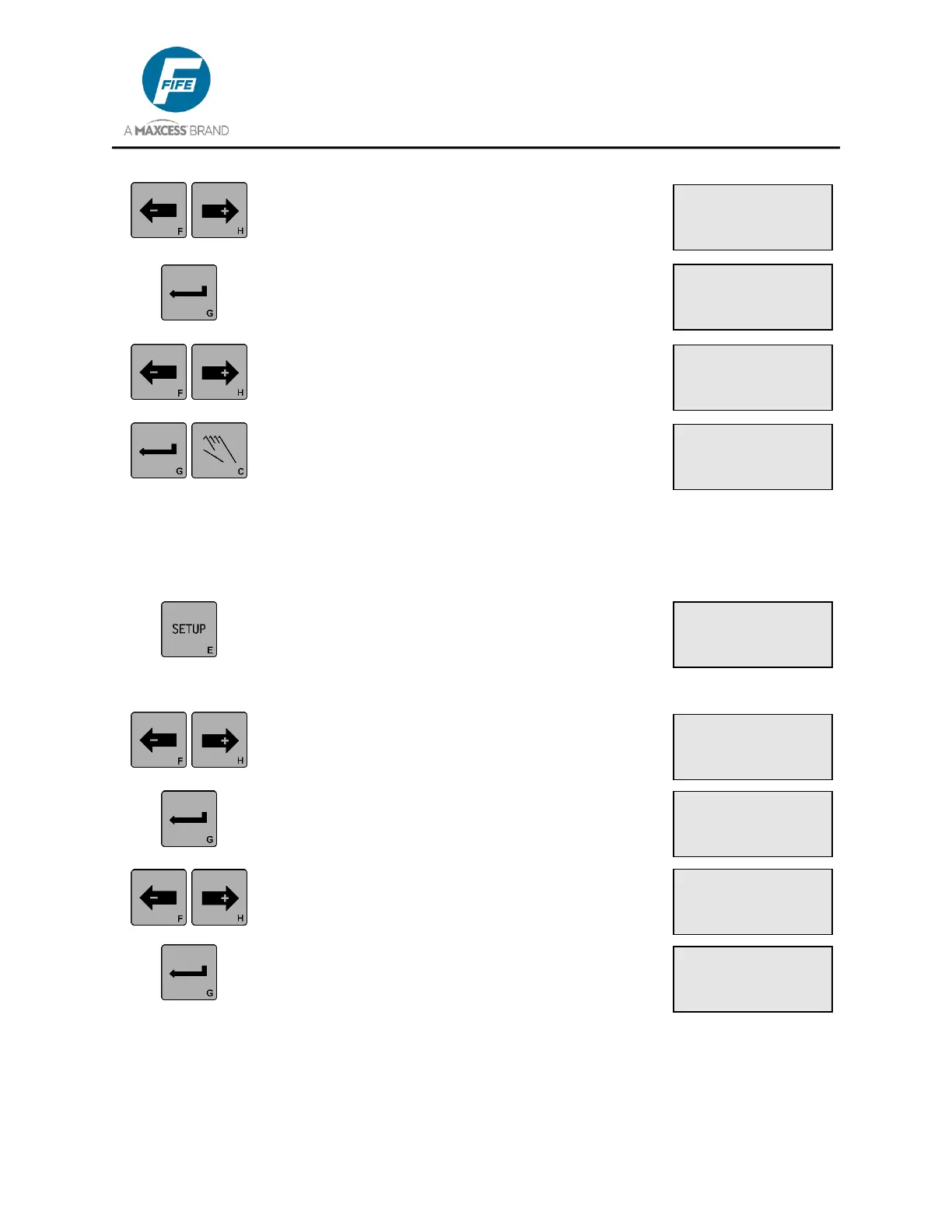

4. Use the ARROW keys to scroll until DIGITAL I/O
is displayed on line 3. The current setting is
displayed on Line 4.
5. Press the ENTER key to enter the DIGITAL I/O
menu. The current setting will begin flashing.
6. Use the ARROW keys to scroll to the desired
setting (ENABLED or DISABLED).
7. Press the ENTER key to store the change or
press the MANUAL key to abort the change. The
system will exit the setup menus and return to
the Operator Level.
3X.3.8.1, Test Signals, Sensor Current
This menu is to be used for viewing the raw sensor signals (in mA) with
no scaling applied.
1. Press the SETUP key to enter the Setup Menus.
The SELECT MENU screen will be displayed on
the LCD Panel.
2. Use the ARROW keys to scroll until ADVANCED
is displayed on line 3.
3. Press the ENTER key to enter the Advanced
Menus. The RESTORE SETTINGS menu will
be displayed.
4. Use the ARROW keys to scroll until TEST
SIGNALS is displayed on line 3.
5. Press the ENTER key to enter the TEST
SIGNALS menu. SENSOR CURRENT will be
displayed on line 3.
× 3A.3.7
SETUP (MAN)
DIGITAL I/O (X3)
ENABLED
3A
MANUAL
× -ãããããáÜÜÜÜ+
× 3A.3.7.1
SETUP (MAN)
DIGITAL I/O (X3)
ENABLED
× 3A.3.7.1
SETUP (MAN)
DIGITAL I/O (X3)
DISABLED
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.3
SETUP (MAN)
SELECT MENU
ADVANCED
× 3A.3.8
SETUP (MAN)
TEST SIGNALS
× 3A.3.8.1
SETUP (MAN)
SENSOR CURRENT
× 3A.3.1
SETUP (MAN)
RESTORE SETTINGS
