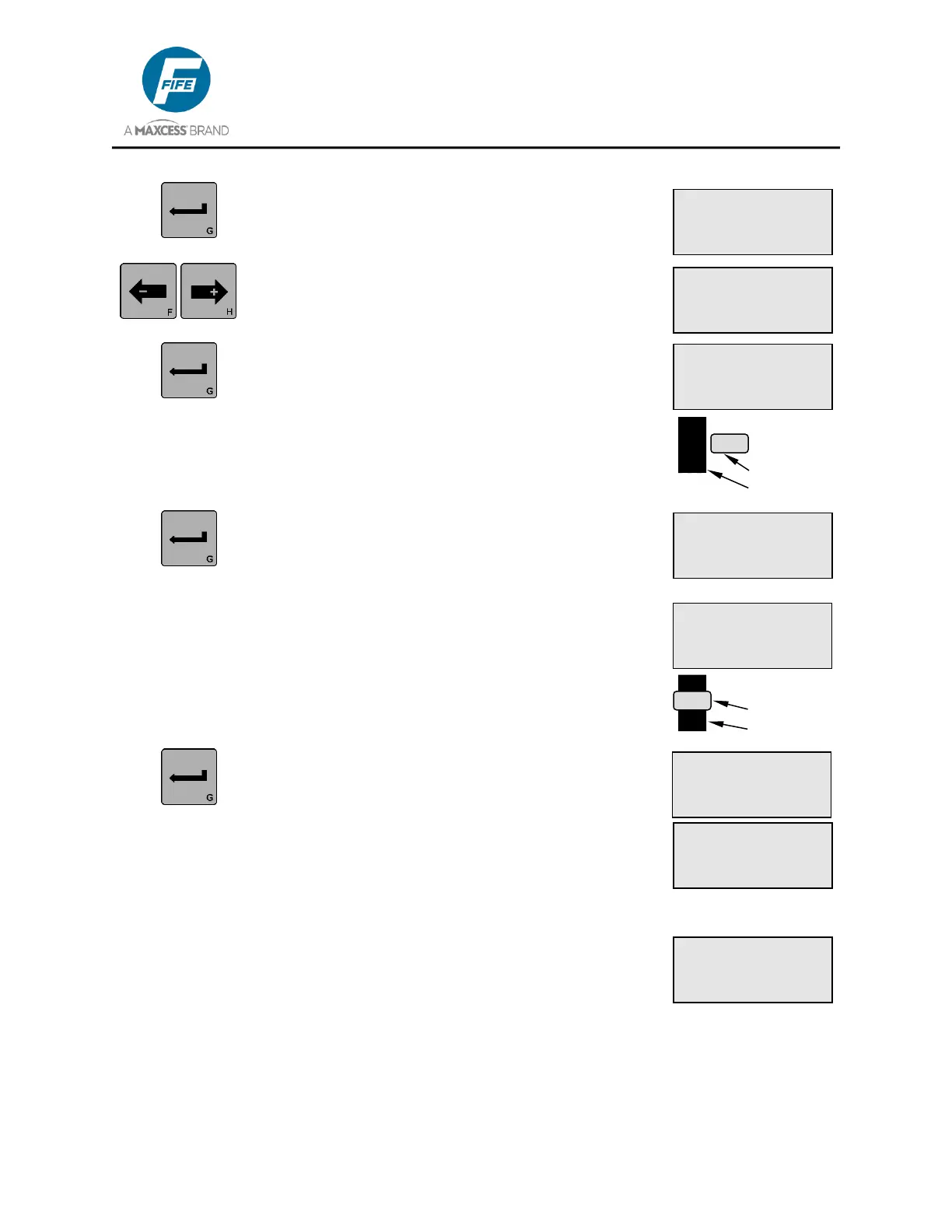

4. Press the ENTER key to enter the
CALIBRATION menu. SELECT SENSOR will be
displayed on line 3.
5. If necessary, use the ARROW keys to select the
Edge of Line sensor input. X5 will be displayed
on line 1.
6. Press the ENTER key to begin the calibration.
UNCOVER SENSOR will be displayed on line 2.
With the sensor light spot correctly focused on
the material to be guided, position the sensor
such that the light spot is located on the
background, near the line to be guided, but not
on the line (see graphic at right). The sensor
signal is displayed on Line 3.
7. Press the ENTER key. WAIT... will be displayed
for a few seconds on line 4 of the LCD Panel.
Maintain the web position during this wait period.
8. Once the delay has ended, COVER SENSOR
will be displayed on line 2. Position the sensor
such that the light spot is located fully on the line
to be guided (see graphic at right). The sensor
signal is displayed on Line 3 of the LCD Panel.
9. Press the ENTER key. If the contrast is sufficient
for guiding, SUCCESSFUL will be displayed for
a few seconds on line 2, then the unit will
automatically exit the menus and return to the
Operator Level.
10. If the contrast is not sufficient for guiding, FAILED
will be displayed on line 2. Press the MANUAL
key to exit the setup menus and return to the
Operator Level. Repeat this procedure, as
necessary.
